SpringBoot集成SpringCloud简要

SpringBoot集成SpringCloud

基于springboot2.6.3，仅介绍单机版，分布式开发略有不同

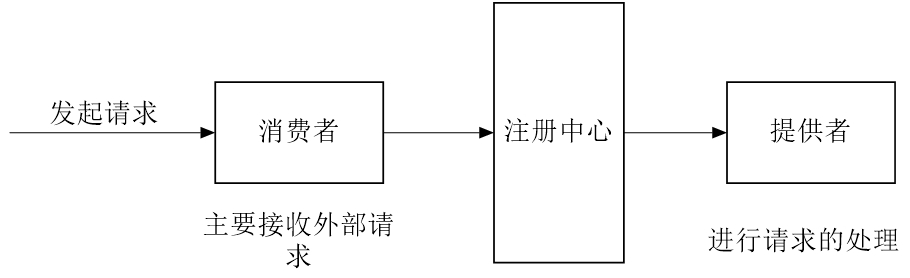

大致步骤：

1. 新建module A，选择eureka作为注册中心，启动类上添加@EnableEurekaServer，添加pom依赖
2. 服务提供者module B（注册到注册中心的业务处理者）启动类添加@EnableEurekaClient与相关依赖
3. 消费者module C（发现服务并消费的服务）启动类添加@EnableFeignClients、@EnableDiscoveryClient与相关依赖
4. 消费者通过FeignClient进程服务间的调用

详细步骤：

1、新建 module A 作为注册中心的服务

​ 地址：localhost:8900

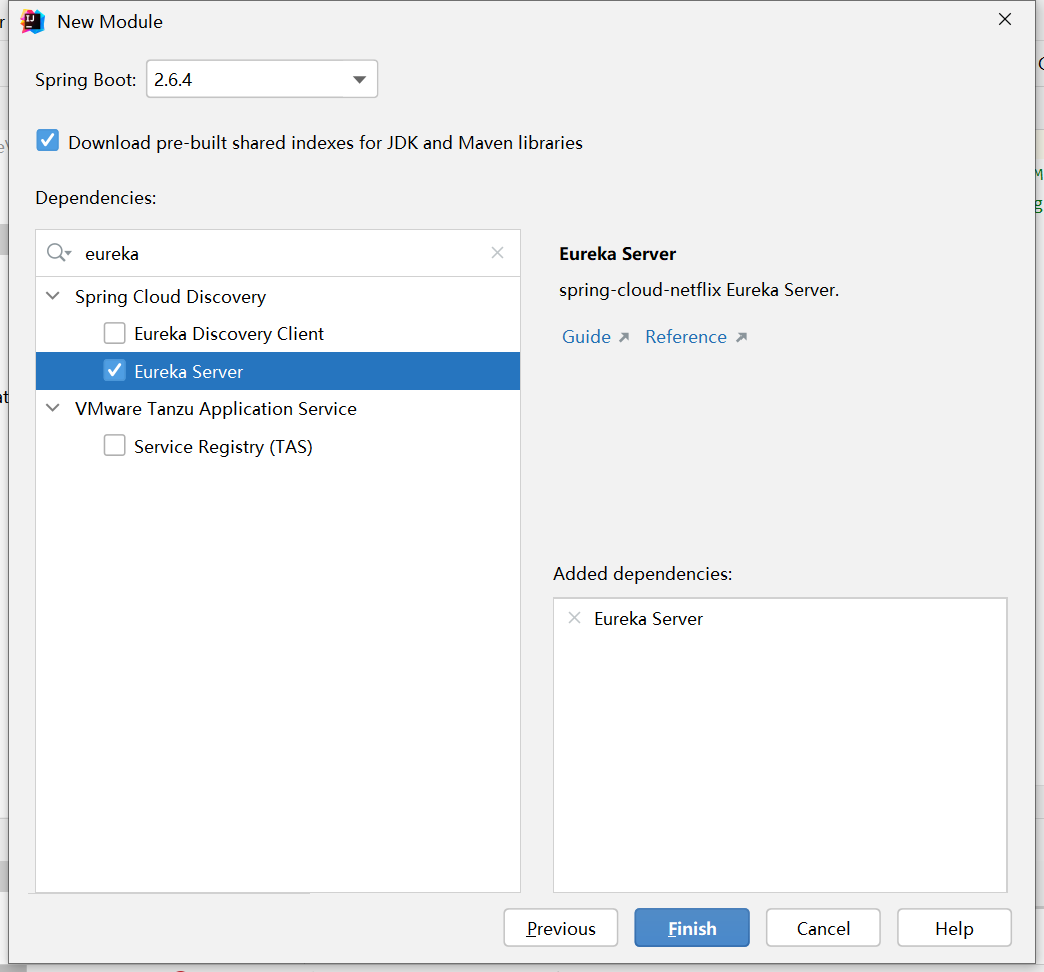

• 选择Eureka Server（不选择也行，手动在pom中添加依赖）


• 配置yml

  server:
      port: 8900
  eureka:
      instance:
          hostname: localhost
      client:
          #单机版不用把本身注册进去
          register-with-eureka: false
          fetch-registry: false
          service-url:
              defaultZone: http://${eureka.instance.hostname}:${server.port}/eureka/


• 添加依赖

  <properties>
          <java.version>1.8</java.version>
          <spring-cloud.version>2021.0.0</spring-cloud.version>
      </properties>
  <dependencies>
      <dependency>
          <groupId>org.springframework.cloud</groupId>
          <artifactId>spring-cloud-starter-netflix-eureka-server</artifactId>
      </dependency>
  </dependencies>
  <dependencyManagement>
      <dependencies>
          <dependency>
              <groupId>org.springframework.cloud</groupId>
              <artifactId>spring-cloud-dependencies</artifactId>
              <version>${spring-cloud.version}</version>
              <type>pom</type>
              <scope>import</scope>
          </dependency>
      </dependencies>
  </dependencyManagement>


• 启动类添加注解

  @EnableEurekaServer
  @SpringBootApplication
  public class EurekaServerApplication {
      public static void main(String[] args) {
          SpringApplication.run(EurekaServerApplication.class, args);
      }
  }


2、处理服务提供者module B

​ 地址：localhost:8086

• yml配置

  server:
      port: 8086
  spring:
      datasource:
          #mysql
          driver-class-name: com.mysql.cj.jdbc.Driver
          url: jdbc:mysql://localhost:3306/shop?useUnicode=true&characterEncoding=utf8&serverTimezone=GMT%2b8
          username: root
          password: root
      application:
      	#定义应用程序的名称，注册中心使用
          name: producer
  eureka:
      client:
          service-url:
          	#注册中心地址
              defaultZone: http://localhost:8900/eureka/


• 添加pom

  <dependencies>
  	<!--  eureka客户端  -->
  	<dependency>
      	<groupId>org.springframework.cloud</groupId>
      	<artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
  	</dependency>
  	<!-- 其他依赖 -->
  </dependencies>
  <dependencyManagement>
      <!-- 与注册中心版本保持一致 -->
      <dependencies>
          <dependency>
              <groupId>org.springframework.cloud</groupId>
              <artifactId>spring-cloud-dependencies</artifactId>
              <version>2021.0.0</version>
              <type>pom</type>
              <scope>import</scope>
          </dependency>
      </dependencies>
  </dependencyManagement>


• 启动类添加依赖

  @EnableEurekaClient
  @SpringBootApplication
  public class ProducerApplication {
      public static void main(String[] args) {
          SpringApplication.run(ProducerApplication.class, args);
      }
  }


• controller示例

  @RestController
  public class ProductController {
      @RequestMapping(value = "select", method = RequestMethod.GET)
      public String select(@RequestParam Long id) {
          return "id===="+id;
      }
  }


3、消费者module C

​ 服务地址：localhost:8088

• 配置yml

  spring:
      application:
          name: consumer
  server:
      port: 8088

  eureka:
      client:
          service-url:
              defaultZone: http://localhost:8900/eureka/


• 添加pom

  <dependencies>
      <!-- Eureka客户端依赖 -->
  	<dependency>
      	<groupId>org.springframework.cloud</groupId>
     		<artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
  	</dependency>
      <!-- 用来声明feign可以进行服务间调用 -->
  	<dependency>
      	<groupId>org.springframework.cloud</groupId>
      	<artifactId>spring-cloud-starter-feign</artifactId>
      	<version>1.4.7.RELEASE</version>
  	</dependency>
      <!--其他依赖 -->
  </dependencies>

  <dependencyManagement>
      <dependencies>
          <dependency>
              <groupId>org.springframework.cloud</groupId>
              <artifactId>spring-cloud-dependencies</artifactId>
              <version>2021.0.0</version>
              <type>pom</type>
              <scope>import</scope>
          </dependency>
      </dependencies>
  </dependencyManagement>


• 启动类：

  // 开启feign进行远程调用
  @EnableFeignClients
  // 开启发现其他服务
  @EnableDiscoveryClient
  @SpringBootApplication
  public class ConsumerApplication {
      public static void main(String[] args) {
          SpringApplication.run(ConsumerApplication.class, args);
      }
  }


• controller示例：

  现在需要通过consumer去调用producer的select方法，在consumer中先定义一个controller接收请求

  @RestController
  public class ConsumerController {
      @Autowired
      ProducerService producerService;

      @RequestMapping(value = "selectProducerById", method = RequestMethod.GET)
      public String selectProducerById(@RequestParam Long id) {
          return producerService.select(id);
      }
  }


• ProducerService接口

  上面producerService的定义

  /**
  	value="需要远程调用的应用的名称"
  	这里对应提供者module A的应用名称producer
  **/
  @FeignClient(value = "producer")
  public interface OrderService {
  	//对应于ProducerController中的select方法
      @RequestMapping(value = "select", method = RequestMethod.GET)
      String select(@RequestParam Long id);

  }


通过调用消费者module C 的ConsumerController的selectProducerById方法

来请求提供者module A 的ProducerController中的select方法：

localost:8088/selectProducerById?id=1

返回结果: id====1
