用建造者模式实现一个防SQL注入的ORM框架

本文节选自《设计模式就该这样学》

1 建造者模式的链式写法

以构建一门课程为例，一个完整的课程由PPT课件、回放视频、课堂笔记、课后作业组成，但是这些内容的设置顺序可以随意调整，我们用建造者模式来代入理解一下。首先创建一个产品类Course。

@Data
public class Course {

    private String name;
    private String ppt;
    private String video;
    private String note;

    private String homework;

    @Override
    public String toString() {
        return "CourseBuilder{" +
                "name="" + name + """ +
                ", ppt="" + ppt + """ +
                ", video="" + video + """ +
                ", note="" + note + """ +
                ", homework="" + homework + """ +
                "}";
    }
}

然后创建建造者类CourseBuilder，将复杂的创建过程封装起来，创建步骤由用户决定。

public class CourseBuilder {

    private Course course = new Course();

    public CourseBuilder addName(String name){
        course.setName(name);
        return this;
    }

    public CourseBuilder addPpt(String ppt){
        course.setPpt(ppt);
        return this;
    }

    public CourseBuilder addVideo(String video){
        course.setVideo(video);
        return this;
    }

    public CourseBuilder addNote(String note){
        course.setNote(note);
        return this;
    }

    public CourseBuilder addHomework(String homework){
        course.setHomework(homework);
        return this;
    }

    public Course builder(){
        return course;
    }

}

最后编写客户端测试代码。

    public static void main(String[] args) {
        CourseBuilder builder = new CourseBuilder()
                    .addName("设计模式")
                    .addPPT("【PPT课件】")
                    .addVideo("【回放视频】")
                    .addNote("【课堂笔记】")
                    .addHomework("【课后作业】");

        System.out.println(builder.build());
}

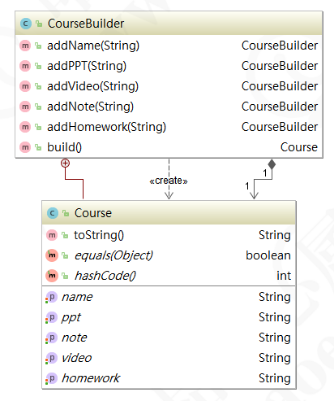

这样的写法是不是很眼熟？后面分析建造者模式在框架源码中的应用时大家就会明白。再来看一下类图的变化，如下图所示。

2 使用静态内部类实现建造者模式

事实上，在平常的编码中，我们通常都会忽略对象的复杂性，优先考虑使用工厂模式创建对象，而不是建造者模式。因为工厂模式和建造者模式的作用都是创建一个产品对象，而工厂模式的结构更加简洁直接（没有Builder和 Director），因此更常使用。
一般情况下，我们更习惯使用静态内部类的方式实现建造者模式，即一个产品类内部自动带有一个具体建造者，由它负责该产品的组装创建，不再需要Builder和Director，这样，产品表示与创建之间的联系更加紧密，结构更加紧凑，同时使得建造者模式的形式更加简洁。
如果采用静态内部类形式实现建造者模式，则前面的案例可以改写如下。

@Data
public class Course {
    private String name;
    private String ppt;
    private String video;
    private String note;

    private String homework;

    @Override
    public String toString() {
        return "Course{" +
                "name="" + name + """ +
                ", ppt="" + ppt + """ +
                ", video="" + video + """ +
                ", note="" + note + """ +
                ", homework="" + homework + """ +
                "}";
    }

    public static class Builder {

        private Course course = new Course();

        public Builder addName(String name){
            course.setName(name);
            return this;
        }

        public Builder addPpt(String ppt){
            course.setPpt(ppt);
            return this;
        }

        public Builder addVideo(String video){
            course.setVideo(video);
            return this;
        }

        public Builder addNote(String note){
            course.setNote(note);
            return this;
        }

        public Builder addHomework(String homework){
            course.setHomework(homework);
            return this;
        }

        public Course builder(){
            return course;
        }

    }
}

客户端测试代码如下。

    public static void main(String[] args) {
         Course course = new Course.Builder()
                .addName("设计模式")
                .addPpt("【PPT课件】")
                .addVideo("【录播视频】")
                 .builder();

        System.out.println(course);
    }


这样，代码也会看上去更加简洁，不会让人感觉到多了一个类。

3 使用建造者模式动态构建SQL语句

下面来看一个实战案例，这个案例参考了开源框架JPA的SQL构造模式。我们在构造SQL查询条件的时候，需要根据不同的条件来拼接SQL字符串。如果查询条件复杂，则SQL拼接的过程也会变得非常复杂，从而给代码维护带来非常大的困难。因此，我们用建造者类QueryRuleSqlBuilder将复杂的SQL构造过程进行封装，用QueryRule对象专门保存SQL查询时的条件，最后根据查询条件，自动生成SQL语句。首先创建QueryRule类，代码如下。

import java.io.Serializable;
import java.util.ArrayList;
import java.util.List;

/**
 * QueryRule，主要功能用于构造查询条件
 *
 * @author Tom
 */
public final class QueryRule implements Serializable
{
	private static final long serialVersionUID = 1L;
	public static final int ASC_ORDER = 101;
	public static final int DESC_ORDER = 102;
	public static final int LIKE = 1;
	public static final int IN = 2;
	public static final int NOTIN = 3;
	public static final int BETWEEN = 4;
	public static final int EQ = 5;
	public static final int NOTEQ = 6;
	public static final int GT = 7;
	public static final int GE = 8;
	public static final int LT = 9;
	public static final int LE = 10;
	public static final int ISNULL = 11;
	public static final int ISNOTNULL = 12;
	public static final int ISEMPTY = 13;
	public static final int ISNOTEMPTY = 14;
	public static final int AND = 201;
	public static final int OR = 202;
	private List<Rule> ruleList = new ArrayList<Rule>();
	private List<QueryRule> queryRuleList = new ArrayList<QueryRule>();
	private String propertyName;

	private QueryRule() {}

	private QueryRule(String propertyName) {
		this.propertyName = propertyName;
	}

	public static QueryRule getInstance() {
		return new QueryRule();
	}

	/**
	 * 添加升序规则
	 * @param propertyName
	 * @return
	 */
	public QueryRule addAscOrder(String propertyName) {
		this.ruleList.add(new Rule(ASC_ORDER, propertyName));
		return this;
	}

	/**
	 * 添加降序规则
	 * @param propertyName
	 * @return
	 */
	public QueryRule addDescOrder(String propertyName) {
		this.ruleList.add(new Rule(DESC_ORDER, propertyName));
		return this;
	}

	public QueryRule andIsNull(String propertyName) {
		this.ruleList.add(new Rule(ISNULL, propertyName).setAndOr(AND));
		return this;
	}

	public QueryRule andIsNotNull(String propertyName) {
		this.ruleList.add(new Rule(ISNOTNULL, propertyName).setAndOr(AND));
		return this;
	}

	public QueryRule andIsEmpty(String propertyName) {
		this.ruleList.add(new Rule(ISEMPTY, propertyName).setAndOr(AND));
		return this;
	}

	public QueryRule andIsNotEmpty(String propertyName) {
		this.ruleList.add(new Rule(ISNOTEMPTY, propertyName).setAndOr(AND));
		return this;
	}

	public QueryRule andLike(String propertyName, Object value) {
		this.ruleList.add(new Rule(LIKE, propertyName, new Object[] { value }).setAndOr(AND));
		return this;
	}

	public QueryRule andEqual(String propertyName, Object value) {
		this.ruleList.add(new Rule(EQ, propertyName, new Object[] { value }).setAndOr(AND));
		return this;
	}

	public QueryRule andBetween(String propertyName, Object... values) {
		this.ruleList.add(new Rule(BETWEEN, propertyName, values).setAndOr(AND));
		return this;
	}

	public QueryRule andIn(String propertyName, List<Object> values) {
		this.ruleList.add(new Rule(IN, propertyName, new Object[] { values }).setAndOr(AND));
		return this;
	}

	public QueryRule andIn(String propertyName, Object... values) {
		this.ruleList.add(new Rule(IN, propertyName, values).setAndOr(AND));
		return this;
	}

	public QueryRule andNotIn(String propertyName, List<Object> values) {
		this.ruleList.add(new Rule(NOTIN,
									propertyName,
									new Object[] { values }).setAndOr(AND));
		return this;
	}

	//此处省略部分代码


	public List<Rule> getRuleList() {
		return this.ruleList;
	}

	public List<QueryRule> getQueryRuleList() {
		return this.queryRuleList;
	}

	public String getPropertyName() {
		return this.propertyName;
	}

	protected class Rule implements Serializable {
		private static final long serialVersionUID = 1L;
		private int type;	//规则的类型
		private String property_name;
		private Object[] values;
		private int andOr = AND;

		public Rule(int paramInt, String paramString) {
			this.property_name = paramString;
			this.type = paramInt;
		}

		public Rule(int paramInt, String paramString,
				Object[] paramArrayOfObject) {
			this.property_name = paramString;
			this.values = paramArrayOfObject;
			this.type = paramInt;
		}

		public Rule setAndOr(int andOr){
			this.andOr = andOr;
			return this;
		}

		public int getAndOr(){
			return this.andOr;
		}

		public Object[] getValues() {
			return this.values;
		}

		public int getType() {
			return this.type;
		}

		public String getPropertyName() {
			return this.property_name;
		}
	}
}

然后创建QueryRuleSqlBuilder类。

package com.tom.vip.pattern.builder.sql;


/**
 * 根据QueryRule自动构建SQL语句
 * @author Tom
 *
 */
public class QueryRuleSqlBuilder {
	private int CURR_INDEX = 0; //记录参数所在的位置
	private List<String> properties; //保存列名列表
	private List<Object> values; //保存参数值列表
	private List<Order> orders; //保存排序规则列表

	private String whereSql = "";
	private String orderSql = "";
	private Object [] valueArr = new Object[]{};
	private Map<Object,Object> valueMap = new HashMap<Object,Object>();

	/**
	 * 获得查询条件
	 * @return
	 */
	private String getWhereSql(){
		return this.whereSql;
	}

	/**
	 * 获得排序条件
	 * @return
	 */
	private String getOrderSql(){
		return this.orderSql;
	}

	/**
	 * 获得参数值列表
	 * @return
	 */
	public Object [] getValues(){
		return this.valueArr;
	}

	/**
	 * 获得参数列表
	 * @return
	 */
	private Map<Object,Object> getValueMap(){
		return this.valueMap;
	}

	/**
	 * 创建SQL构造器
	 * @param queryRule
	 */
	public QueryRuleSqlBuilder(QueryRule queryRule) {
		CURR_INDEX = 0;
		properties = new ArrayList<String>();
		values = new ArrayList<Object>();
		orders = new ArrayList<Order>();
		for (QueryRule.Rule rule : queryRule.getRuleList()) {
			switch (rule.getType()) {
			case QueryRule.BETWEEN:
				processBetween(rule);
				break;
			case QueryRule.EQ:
				processEqual(rule);
				break;
			case QueryRule.LIKE:
				processLike(rule);
				break;
			case QueryRule.NOTEQ:
				processNotEqual(rule);
				break;
			case QueryRule.GT:
				processGreaterThen(rule);
				break;
			case QueryRule.GE:
				processGreaterEqual(rule);
				break;
			case QueryRule.LT:
				processLessThen(rule);
				break;
			case QueryRule.LE:
				processLessEqual(rule);
				break;
			case QueryRule.IN:
				processIN(rule);
				break;
			case QueryRule.NOTIN:
				processNotIN(rule);
				break;
			case QueryRule.ISNULL:
				processIsNull(rule);
				break;
			case QueryRule.ISNOTNULL:
				processIsNotNull(rule);
				break;
			case QueryRule.ISEMPTY:
				processIsEmpty(rule);
				break;
			case QueryRule.ISNOTEMPTY:
				processIsNotEmpty(rule);
				break;
			case QueryRule.ASC_ORDER:
				processOrder(rule);
				break;
			case QueryRule.DESC_ORDER:
				processOrder(rule);
				break;
			default:
				throw new IllegalArgumentException("type"+rule.getType()+"not supported.");
			}
		}
		//拼装where语句
		appendWhereSql();
		//拼装排序语句
		appendOrderSql();
		//拼装参数值
		appendValues();
	}

	/**
	 * 去掉order
	 *
	 * @param sql
	 * @return
	 */
	private String removeOrders(String sql) {
		Pattern p = Pattern.compile("order\s*by[\w|\W|\s|\S]*", Pattern.CASE_INSENSITIVE);
		Matcher m = p.matcher(sql);
		StringBuffer sb = new StringBuffer();
		while (m.find()) {
			m.appendReplacement(sb, "");
		}
		m.appendTail(sb);
		return sb.toString();
	}

	/**
	 * 去掉select
	 *
	 * @param sql
	 * @return
	 */
	private String removeSelect(String sql) {
		if(sql.toLowerCase().matches("from\s+")){
			int beginPos = sql.toLowerCase().indexOf("from");
			return sql.substring(beginPos);
		}else{
			return sql;
		}
	}

	/**
	 * 处理like
	 * @param rule
	 */
	private  void processLike(QueryRule.Rule rule) {
		if (ArrayUtils.isEmpty(rule.getValues())) {
			return;
		}
		Object obj = rule.getValues()[0];

		if (obj != null) {
			String value = obj.toString();
			if (!StringUtils.isEmpty(value)) {
				value = value.replace("*", "%");
				obj = value;
			}
		}
		add(rule.getAndOr(),rule.getPropertyName(),"like","%"+rule.getValues()[0]+"%");
	}

	/**
	 * 处理between
	 * @param rule
	 */
	private  void processBetween(QueryRule.Rule rule) {
		if ((ArrayUtils.isEmpty(rule.getValues()))
				|| (rule.getValues().length < 2)) {
			return;
		}
		add(rule.getAndOr(),rule.getPropertyName(),"","between",rule.getValues()[0],"and");
		add(0,"","","",rule.getValues()[1],"");
	}


//此处省略部分代码


	/**
	 * 加入SQL查询规则队列
	 * @param andOr and或者or
	 * @param key 列名
	 * @param split 列名与值之间的间隔
	 * @param value 值
	 */
	private  void add(int andOr,String key,String split ,Object value){
		add(andOr,key,split,"",value,"");
	}

	/**
	 * 加入SQL查询规则队列
	 * @param andOr and或者or
	 * @param key 列名
	 * @param split 列名与值之间的间隔
	 * @param prefix 值前缀
	 * @param value 值
	 * @param suffix 值后缀
	 */
	private  void add(int andOr,String key,String split ,String prefix,Object value,String  	suffix){
		String andOrStr = (0 == andOr ? "" :(QueryRule.AND == andOr ? " and " : " or "));
		properties.add(CURR_INDEX,
		 andOrStr + key + " " + split + prefix + (null != value ? " ? " : " ") + suffix);
		if(null != value){
			values.add(CURR_INDEX,value);
			CURR_INDEX ++;
		}
	}


	/**
	 * 拼装where语句
	 */
	private void appendWhereSql(){
		StringBuffer whereSql = new StringBuffer();
		for (String p : properties) {
			whereSql.append(p);
		}
		this.whereSql = removeSelect(removeOrders(whereSql.toString()));
	}

	/**
	 * 拼装排序语句
	 */
	private void appendOrderSql(){
		StringBuffer orderSql = new StringBuffer();
		for (int i = 0 ; i < orders.size(); i ++) {
			if(i > 0 && i < orders.size()){
				orderSql.append(",");
			}
			orderSql.append(orders.get(i).toString());
		}
		this.orderSql = removeSelect(removeOrders(orderSql.toString()));
	}

	/**
	 * 拼装参数值
	 */
	private void appendValues(){
		Object [] val = new Object[values.size()];
		for (int i = 0; i < values.size(); i ++) {
			val[i] = values.get(i);
			valueMap.put(i, values.get(i));
		}
		this.valueArr = val;
	}

	public String builder(String tableName){
		String ws = removeFirstAnd(this.getWhereSql());
		String whereSql = ("".equals(ws) ? ws : (" where " + ws));
		String sql = "select * from " + tableName + whereSql;
		Object [] values = this.getValues();
		String orderSql = this.getOrderSql();
		orderSql = (StringUtils.isEmpty(orderSql) ? " " : (" order by " + orderSql));
		sql += orderSql;
		return sql;
	}


	private String removeFirstAnd(String sql){
		if(StringUtils.isEmpty(sql)){return sql;}
		return sql.trim().toLowerCase().replaceAll("^\s*and", "") + " ";
	}

}

接着创建Order类。

/**
 * SQL排序组件
 * @author Tom
 */
public class Order {
	private boolean ascending; //升序还是降序
	private String propertyName; //哪个字段升序，哪个字段降序

	public String toString() {
		return propertyName + " " + (ascending ? "asc" : "desc");
	}

	/**
	 * Constructor for Order.
	 */
	protected Order(String propertyName, boolean ascending) {
		this.propertyName = propertyName;
		this.ascending = ascending;
	}

	/**
	 * Ascending order
	 *
	 * @param propertyName
	 * @return Order
	 */
	public static Order asc(String propertyName) {
		return new Order(propertyName, true);
	}

	/**
	 * Descending order
	 *
	 * @param propertyName
	 * @return Order
	 */
	public static Order desc(String propertyName) {
		return new Order(propertyName, false);
	}

}

最后编写客户端测试代码。

public static void main(String[] args) {
        QueryRule queryRule = QueryRule.getInstance();
        queryRule.addAscOrder("age");
        queryRule.andEqual("addr","Changsha");
        queryRule.andLike("name","Tom");
        QueryRuleSqlBuilder builder = new QueryRuleSqlBuilder(queryRule);

        System.out.println(builder.builder("t_member"));

        System.out.println("Params: " + Arrays.toString(builder.getValues()));


}

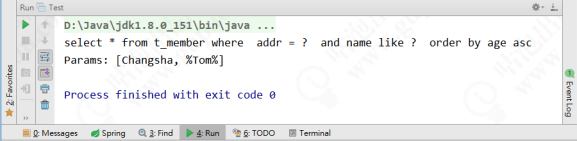

这样一来，客户端代码就非常清楚，运行结果如下图所示。

本文为“Tom弹架构”原创，转载请注明出处。技术在于分享，我分享我快乐！
如果本文对您有帮助，欢迎关注和点赞；如果您有任何建议也可留言评论或私信，您的支持是我坚持创作的动力。关注微信公众号『 Tom弹架构 』可获取更多技术干货！
