Django实现WebSocket在线聊天室（channels库）

1.Django实现WebSocket在线聊天室

1.1 安装channels

pip install channels==2.3

(saas) F:DesktopPython_StudyCHS-Tracersaas>pip install channels==2.3
Looking in indexes: http://mirrors.aliyun.com/pypi/simple/
Collecting channels==2.3
  Downloading
  ...
Successfully installed Automat-20.2.0 attrs-20.3.0 autobahn-21.3.1 channels-2.3.0

1.2 创建Django项目

1.3 http路由

url(r"^chat/$", chat_view.chat, name="chat"),  # 聊天室

1.4 http视图函数

def chat(request):
    return render(request, "chat.html")

1.5 settings添加channels相关配置

INSTALLED_APPS = [
    "channels",  # 项目中要使用channels做WebSocket了
]

ASGI_APPLICATION = "saas.routing.application" # 项目名.routing.application

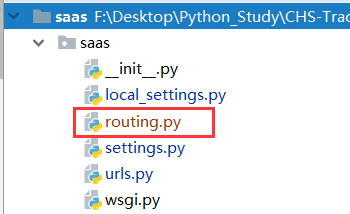

1.6 创建routing.py（websocket的路由）和comsumers.py（websocket的视图函数）

1.7 websocket路由

# -*- coding:utf-8 -*-
# 作者：IT小学生蔡坨坨
# 时间：2021/4/23 18:21
# 功能：channels相关路由

from channels.routing import ProtocolTypeRouter, URLRouter
from django.conf.urls import url

from web import consumers

application = ProtocolTypeRouter({
    "websocket": URLRouter([
        url(r"^chat/$", consumers.ChatConsumer),
    ])
})

1.8 websocket视图函数

# -*- coding:utf-8 -*-
# 作者：IT小学生蔡坨坨
# 时间：2021/4/23 18:25
# 功能：channels相关视图

from channels.exceptions import StopConsumer
from channels.generic.websocket import WebsocketConsumer

# 定义一个列表，用于存放当前在线的用户
CONSUMER_OBJECT_LIST = []


class ChatConsumer(WebsocketConsumer):

    def websocket_connect(self, message):
        """
        客户端浏览器发来连接请求之后就会被触发
        :param message:
        :return:
        """

        # 服务端接收连接，向客户端浏览器发送一个加密字符串
        self.accept()
        # 连接成功
        CONSUMER_OBJECT_LIST.append(self)

    def websocket_receive(self, message):
        """
        客户端浏览器向服务端发送消息，此方法自动触发
        :param message:
        :return:
        """

        print("接受到消息了。", message)

        # 服务端给客户端回一条消息
        # self.send(text_data=message["text"])
        for obj in CONSUMER_OBJECT_LIST:
            obj.send(text_data=message["text"])

    def websocket_disconnect(self, message):
        """
        客户端浏览器主动断开连接
        :param message:
        :return:
        """

        # 服务端断开连接
        CONSUMER_OBJECT_LIST.remove(self)
        raise StopConsumer()

1.9 前端代码

<!-- css样式 -->
<style>
    pre {
        display: block;
        padding: 9.5px;
        margin: 0 0 10px;
        font-size: 18px;
        line-height: 1.42857143;
        color: #333;
        word-break: break-all;
        word-wrap: break-word;
        background-color: #00aaaa;
        border-radius: 12px;
    }
</style>

<!-- body内容 -->
<div style="width: 600px;height: 574px;margin: auto;margin-top: 20px;">
    <div class="panel panel-success">
        <div class="panel-heading">在线实时聊天室</div>
        <div class="panel-body">
            <div style="border: #f5f5f5 2px solid;width: 570px;height: 400px;overflow:scroll">
                <div id="content">
                    <!-- 聊天记录 -->
                </div>
            </div>
            <div style="border-color: white;margin-top: 10px">
                <textarea type="text" id="txt" placeholder="请输入消息内容......" class="form-control"></textarea>
            </div>
        </div>

        <div class="table">
            <div>
                <button class="btn btn-danger" onclick="closeLink();" style="margin-left: 74%">断开连接</button>
                <button class="btn btn-success" onclick="sendMsg();">发送</button>
            </div>
        </div>
    </div>
</div>

<!-- 消息模板 -->
<div id="recordTemplate" class="hide">
    <div class="right-info">
        <!-- 用户 -->
        <p>匿名用户：</p>

        <!-- 消息内容 -->
        <pre>

            </pre>
    </div>
</div>


<!-- js代码 -->
<script>
    var STATUS; // 是否连接的标志
    var ws = new WebSocket("ws://127.0.0.1:8000/chat/");

    ws.onopen = function () {
        // 客户端在握手环节验证成功之后，自动执行此方法
        console.log("连接成功。")
    };

    ws.onmessage = function msg(event) {
        var $item = $("#recordTemplate").find(".right-info").clone();
        $item.find("pre").html(event.data);
        $("#content").append($item);
    };

    function sendMsg() {
        if (STATUS == false) {
            swal({
                title: "已断开",
                text: "当前已断开连接，刷新页面重新连接。"
            });
        } else {
            ws.send($("#txt").val());
            $("#txt").val("");
        }
    }

    function closeLink() {
        ws.close();
        STATUS = false;
        console.log("断开连接");
        swal({
            text: "成功断开连接，刷新页面重新连接。"
        });
    }
</script>

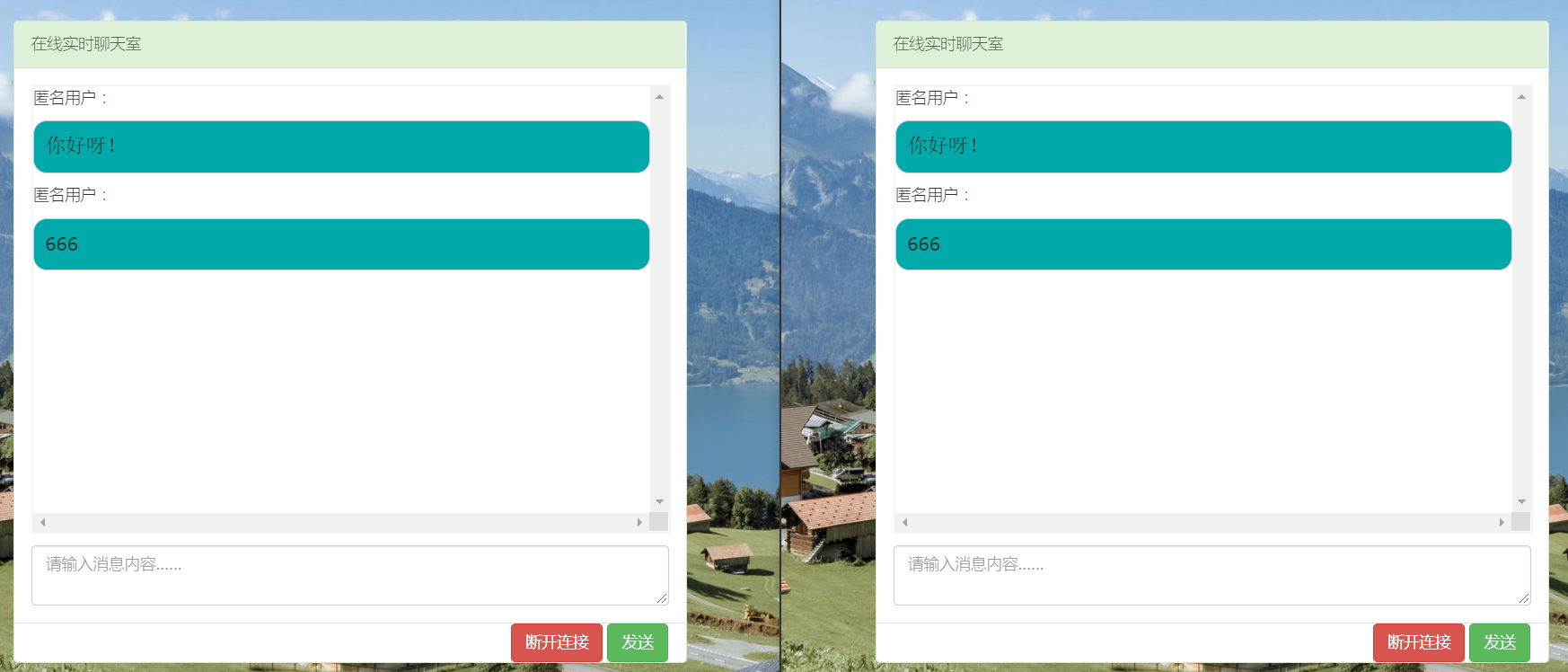

2.效果展示

3.总结

http协议
	chat路由 --> chat视图函数
	访问：浏览器发送请求即可

websocket协议
	chat路由 --> ChatConsumer（3个方法）
	访问：new WebSocket对象
