wen Skywalking-04：扩展Metric监控信息
扩展 Metric 监控信息
官方文档
Source and Scope extension for new metrics
案例：JVM Thread 增加 Metrics
修改 Thread 的定义
在 apm-protocol/apm-network/src/main/proto/language-agent/JVMMetric.proto 协议文件中覆盖 message Thread 的定义
message Thread {
int64 liveCount = 1;
int64 daemonCount = 2;
int64 peakCount = 3;
int64 deadlocked = 4;
int64 monitorDeadlocked = 5;
int64 newThreadCount = 7;
int64 runnableThreadCount = 8;
int64 blockedThreadCount = 9;
int64 waitThreadCount = 10;
int64 timeWaitThreadCount = 11;
int64 terminatedThreadCount = 12;
}
重新构建 apm-network 项目
cd apm-protocol/apm-network
mvn clean package -DskipTests=true
PS：可以安装 Protocol Buffer Editor 插件，支持 Protocol Buffer 语法
修改 agent core 中 Thread Metrics 的提供类
直接使用如下代码覆盖 org.apache.skywalking.apm.agent.core.jvm.thread.ThreadProvider 类
/*
* Licensed to the Apache Software Foundation (ASF) under one or more
* contributor license agreements. See the NOTICE file distributed with
* this work for additional information regarding copyright ownership.
* The ASF licenses this file to You under the Apache License, Version 2.0
* (the "License"); you may not use this file except in compliance with
* the License. You may obtain a copy of the License at
*
* http://www.apache.org/licenses/LICENSE-2.0
*
* Unless required by applicable law or agreed to in writing, software
* distributed under the License is distributed on an "AS IS" BASIS,
* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
* See the License for the specific language governing permissions and
* limitations under the License.
*
*/
package org.apache.skywalking.apm.agent.core.jvm.thread;
import java.lang.management.ManagementFactory;
import java.lang.management.ThreadInfo;
import java.lang.management.ThreadMXBean;
import java.util.Optional;
import org.apache.skywalking.apm.network.language.agent.v3.Thread;
public enum ThreadProvider {
INSTANCE;
private final ThreadMXBean threadMXBean;
private static final long [] EMPTY_DEADLOCKED_THREADS = new long[0];
ThreadProvider() {
this.threadMXBean = ManagementFactory.getThreadMXBean();
}
public Thread getThreadMetrics() {
int newThreadCount = 0;
int runnableThreadCount = 0;
int blockedThreadCount = 0;
int waitThreadCount = 0;
int timeWaitThreadCount = 0;
int terminatedThreadCount = 0;
// 基于线程状态信息增加对应状态的线程数
ThreadInfo[] threadInfos = threadMXBean.getThreadInfo(threadMXBean.getAllThreadIds());
if (threadInfos != null) {
for (ThreadInfo threadInfo : threadInfos) {
if (threadInfo != null) {
switch (threadInfo.getThreadState()) {
case NEW:
newThreadCount++;
break;
case RUNNABLE:
runnableThreadCount++;
break;
case BLOCKED:
blockedThreadCount++;
break;
case WAITING:
waitThreadCount++;
break;
case TIMED_WAITING:
timeWaitThreadCount++;
break;
case TERMINATED:
terminatedThreadCount++;
break;
default:
break;
}
} else {
/*
* If a thread of a given ID is not alive or does not exist,
* the corresponding element in the returned array will,
* contain null,because is mut exist ,so the thread is terminated
*/
terminatedThreadCount++;
}
}
}
// 当前存活线程数
int threadCount = threadMXBean.getThreadCount();
// deamon线程数
int daemonThreadCount = threadMXBean.getDaemonThreadCount();
// 峰值线程数
int peakThreadCount = threadMXBean.getPeakThreadCount();
int deadlocked = Optional.ofNullable(threadMXBean.findDeadlockedThreads())
.orElse(EMPTY_DEADLOCKED_THREADS).length;
int monitorDeadlocked = Optional.ofNullable(threadMXBean.findMonitorDeadlockedThreads())
.orElse(EMPTY_DEADLOCKED_THREADS).length;
// 构建一个Thread对象，用于发送Thread Metric信息至OAP
return Thread.newBuilder().setLiveCount(threadCount)
.setDaemonCount(daemonThreadCount)
.setPeakCount(peakThreadCount)
.setDeadlocked(deadlocked)
.setMonitorDeadlocked(monitorDeadlocked)
.setNewThreadCount(newThreadCount)
.setRunnableThreadCount(runnableThreadCount)
.setBlockedThreadCount(blockedThreadCount)
.setWaitThreadCount(waitThreadCount)
.setTimeWaitThreadCount(timeWaitThreadCount)
.setTerminatedThreadCount(terminatedThreadCount)
.build();
}
}
修改 ServiceInstanceJVMThread
直接使用如下代码覆盖 org.apache.skywalking.oap.server.core.source.ServiceInstanceJVMThread 类，
ServiceInstanceJVMThread继承了 Source 抽象类， Source 类是 Skywalking 中 oal 体系，资源及范围的定义。
/*
* Licensed to the Apache Software Foundation (ASF) under one or more
* contributor license agreements. See the NOTICE file distributed with
* this work for additional information regarding copyright ownership.
* The ASF licenses this file to You under the Apache License, Version 2.0
* (the "License"); you may not use this file except in compliance with
* the License. You may obtain a copy of the License at
*
* http://www.apache.org/licenses/LICENSE-2.0
*
* Unless required by applicable law or agreed to in writing, software
* distributed under the License is distributed on an "AS IS" BASIS,
* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
* See the License for the specific language governing permissions and
* limitations under the License.
*
*/
package org.apache.skywalking.oap.server.core.source;
import lombok.Getter;
import lombok.Setter;
import static org.apache.skywalking.oap.server.core.source.DefaultScopeDefine.SERVICE_INSTANCE_CATALOG_NAME;
import static org.apache.skywalking.oap.server.core.source.DefaultScopeDefine.SERVICE_INSTANCE_JVM_THREAD;
@ScopeDeclaration(id = SERVICE_INSTANCE_JVM_THREAD, name = "ServiceInstanceJVMThread", catalog = SERVICE_INSTANCE_CATALOG_NAME)
@ScopeDefaultColumn.VirtualColumnDefinition(fieldName = "entityId", columnName = "entity_id", isID = true, type = String.class)
public class ServiceInstanceJVMThread extends Source {
@Override
public int scope() {
return SERVICE_INSTANCE_JVM_THREAD;
}
@Override
public String getEntityId() {
return String.valueOf(id);
}
@Getter
@Setter
private String id;
@Getter
@Setter
@ScopeDefaultColumn.DefinedByField(columnName = "name", requireDynamicActive = true)
private String name;
@Getter
@Setter
@ScopeDefaultColumn.DefinedByField(columnName = "service_name", requireDynamicActive = true)
private String serviceName;
@Getter
@Setter
@ScopeDefaultColumn.DefinedByField(columnName = "service_id")
private String serviceId;
@Getter
@Setter
private long liveCount;
@Getter
@Setter
private long daemonCount;
@Getter
@Setter
private long peakCount;
@Getter
@Setter
private long deadlocked;
@Getter
@Setter
private long monitorDeadlocked;
@Getter
@Setter
private long newThreadCount;
@Getter
@Setter
private long runnableThreadCount;
@Getter
@Setter
private long blockedThreadCount;
@Getter
@Setter
private long waitThreadCount;
@Getter
@Setter
private long timeWaitThreadCount;
@Getter
@Setter
private long terminatedThreadCount;
}
修改 JVMSourceDispatcher
org.apache.skywalking.oap.server.analyzer.provider.jvm.JVMSourceDispatcher 是一个 Source 分发类，将从 agent 接收到的 JVM 相关 Metrics 拆分成对应的 Source 。例如： ServiceInstanceJVMMemory 、 ServiceInstanceJVMThread 。
修改方法org.apache.skywalking.oap.server.analyzer.provider.jvm.JVMSourceDispatcher#sendToThreadMetricProcess 为如下代码：
private void sendToThreadMetricProcess(String service,
String serviceId,
String serviceInstance,
String serviceInstanceId,
long timeBucket,
Thread thread) {
ServiceInstanceJVMThread serviceInstanceJVMThread = new ServiceInstanceJVMThread();
serviceInstanceJVMThread.setId(serviceInstanceId);
serviceInstanceJVMThread.setName(serviceInstance);
serviceInstanceJVMThread.setServiceId(serviceId);
serviceInstanceJVMThread.setServiceName(service);
serviceInstanceJVMThread.setLiveCount(thread.getLiveCount());
serviceInstanceJVMThread.setDaemonCount(thread.getDaemonCount());
serviceInstanceJVMThread.setPeakCount(thread.getPeakCount());
serviceInstanceJVMThread.setTimeBucket(timeBucket);
serviceInstanceJVMThread.setDeadlocked(thread.getDeadlocked());
serviceInstanceJVMThread.setMonitorDeadlocked(thread.getMonitorDeadlocked());
serviceInstanceJVMThread.setNewThreadCount(thread.getNewThreadCount());
serviceInstanceJVMThread.setRunnableThreadCount(thread.getRunnableThreadCount());
serviceInstanceJVMThread.setBlockedThreadCount(thread.getBlockedThreadCount());
serviceInstanceJVMThread.setWaitThreadCount(thread.getWaitThreadCount());
serviceInstanceJVMThread.setTimeWaitThreadCount(thread.getTimeWaitThreadCount());
serviceInstanceJVMThread.setTerminatedThreadCount(thread.getTerminatedThreadCount());
sourceReceiver.receive(serviceInstanceJVMThread);
}
在 java-agent.oal 增加相关指标
在oap-server/server-bootstrap/src/main/resources/oal/java-agent.oal 添加如下语句
// 参考oal语法
instance_jvm_thread_deadlocked = from(ServiceInstanceJVMThread.deadlocked).longAvg();
instance_jvm_thread_monitor_deadlocked = from(ServiceInstanceJVMThread.monitorDeadlocked).longAvg();
instance_jvm_thread_new_thread_count = from(ServiceInstanceJVMThread.newThreadCount).longAvg();
instance_jvm_thread_runnable_thread_count = from(ServiceInstanceJVMThread.runnableThreadCount).longAvg();
instance_jvm_thread_blocked_thread_count = from(ServiceInstanceJVMThread.blockedThreadCount).longAvg();
instance_jvm_thread_wait_thread_count = from(ServiceInstanceJVMThread.waitThreadCount).longAvg();
instance_jvm_thread_time_wait_thread_count = from(ServiceInstanceJVMThread.timeWaitThreadCount).longAvg();
instance_jvm_thread_terminated_thread_count = from(ServiceInstanceJVMThread.terminatedThreadCount).longAvg();
修改 apm.yml
在 oap-server/server-bootstrap/src/main/resources/ui-initialized-templates/apm.yml 文件的 APM 面板下的 Instance 项增加如下配置
{
"width": 3,

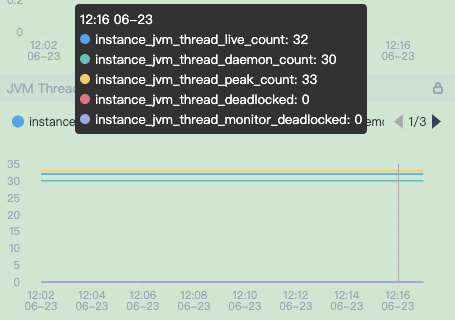

"title": "JVM Thread Count (Java Service)",
"height": "250",
"entityType": "ServiceInstance",
"independentSelector": false,
"metricType": "REGULAR_VALUE",
"queryMetricType": "readMetricsValues",
"chartType": "ChartLine",
"metricName": "instance_jvm_thread_live_count, instance_jvm_thread_daemon_count, instance_jvm_thread_peak_count,instance_jvm_thread_deadlocked,instance_jvm_thread_monitor_deadlocked"
},
{
"width": 3,

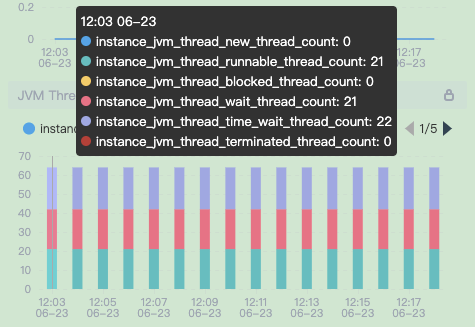

"title": "JVM Thread State Count (Java Service)",
"height": "250",
"entityType": "ServiceInstance",
"independentSelector": false,
"metricType": "REGULAR_VALUE",
"metricName": "instance_jvm_thread_new_thread_count,instance_jvm_thread_runnable_thread_count,instance_jvm_thread_blocked_thread_count,instance_jvm_thread_wait_thread_count,instance_jvm_thread_time_wait_thread_count,instance_jvm_thread_terminated_thread_count",
"queryMetricType": "readMetricsValues",
"chartType": "ChartBar"
}
如果不清楚添加位置，可以直接使用如下配置，覆盖 oap-server/server-bootstrap/src/main/resources/ui-initialized-templates/apm.yml
# Licensed to the Apache Software Foundation (ASF) under one or more
# contributor license agreements. See the NOTICE file distributed with
# this work for additional information regarding copyright ownership.
# The ASF licenses this file to You under the Apache License, Version 2.0
# (the "License"); you may not use this file except in compliance with
# the License. You may obtain a copy of the License at
#
# http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
# UI templates initialized file includes the default template when the SkyWalking OAP starts up at the first time.
#
# Also, SkyWalking would detect the existing templates in the database, once they are missing, all templates in this file
# could be added automatically.
templates:
- name: "APM"
# The type includes DASHBOARD, TOPOLOGY_INSTANCE, TOPOLOGY_ENDPOINT.
# DASHBOARD type templates could have multiple definitions, by using different names.
# TOPOLOGY_INSTANCE, TOPOLOGY_ENDPOINT type templates should be defined once, as they are used in the topology page only.
type: "DASHBOARD"
# Configuration could be defined through UI, and use `export` to format in the standard JSON.
configuration: |-
[
{
"name": "APM",
"type": "service",
"children": [
{
"name": "Global",
"children": [
{
"width": 3,
"title": "Services Load",
"height": "300",
"entityType": "Service",
"independentSelector": false,
"metricType": "REGULAR_VALUE",
"metricName": "service_cpm",
"queryMetricType": "sortMetrics",
"chartType": "ChartSlow",
"parentService": false,
"unit": "CPM - calls per minute"
},
{
"width": 3,
"title": "Slow Services",
"height": "300",
"entityType": "Service",
"independentSelector": false,
"metricType": "REGULAR_VALUE",
"metricName": "service_resp_time",
"queryMetricType": "sortMetrics",
"chartType": "ChartSlow",
"parentService": false,
"unit": "ms"
},
{
"width": 3,
"title": "Un-Health Services (Apdex)",
"height": "300",
"entityType": "Service",
"independentSelector": false,
"metricType": "REGULAR_VALUE",
"metricName": "service_apdex",
"queryMetricType": "sortMetrics",
"chartType": "ChartSlow",
"parentService": false,
"aggregation": "/",
"aggregationNum": "10000",
"sortOrder": "ASC"
},
{
"width": 3,
"title": "Slow Endpoints",
"height": "300",
"entityType": "Endpoint",
"independentSelector": false,
"metricType": "REGULAR_VALUE",
"metricName": "endpoint_avg",
"queryMetricType": "sortMetrics",
"chartType": "ChartSlow",
"parentService": false,
"unit": "ms"
},
{
"width": "6",
"title": "Global Response Latency",
"height": "280",
"entityType": "All",
"independentSelector": false,
"metricType": "LABELED_VALUE",
"metricName": "all_percentile",
"queryMetricType": "readLabeledMetricsValues",
"chartType": "ChartLine",
"metricLabels": "P50, P75, P90, P95, P99",
"labelsIndex": "0, 1, 2, 3, 4",
"unit": "percentile in ms"
},
{
"width": "6",
"title": "Global Heatmap",
"height": "280",
"entityType": "All",
"independentSelector": false,
"metricType": "HEATMAP",
"unit": "ms",
"queryMetricType": "readHeatMap",
"chartType": "ChartHeatmap",
"metricName": "all_heatmap"
}
]
},
{
"name": "Service",
"children": [
{
"width": 3,
"title": "Service Apdex",
"height": "200",
"entityType": "Service",
"independentSelector": false,
"metricType": "REGULAR_VALUE",
"metricName": "service_apdex",
"queryMetricType": "readMetricsValue",
"chartType": "ChartNum",
"aggregation": "/",
"aggregationNum": "10000"
},
{
"width": 3,
"title": "Service Avg Response Time",
"height": "200",
"entityType": "Service",
"independentSelector": false,
"metricType": "REGULAR_VALUE",
"metricName": "service_resp_time",
"queryMetricType": "readMetricsValues",
"chartType": "ChartLine",
"unit": "ms"
},
{
"width": 3,
"title": "Successful Rate",
"height": "200",
"entityType": "Service",
"independentSelector": false,
"metricType": "REGULAR_VALUE",
"metricName": "service_sla",
"queryMetricType": "readMetricsValue",
"chartType": "ChartNum",
"unit": "%",
"aggregation": "/",
"aggregationNum": "100"
},
{
"width": 3,
"title": "Service Load",
"height": "200",
"entityType": "Service",
"independentSelector": false,
"metricType": "REGULAR_VALUE",
"metricName": "service_cpm",
"queryMetricType": "readMetricsValue",
"chartType": "ChartNum",
"unit": "CPM - calls per minute"
},
{
"width": 3,
"title": "Service Apdex",
"height": "200",
"entityType": "Service",
"independentSelector": false,
"metricType": "REGULAR_VALUE",
"metricName": "service_apdex",
"queryMetricType": "readMetricsValues",
"chartType": "ChartLine",
"aggregation": "/",
"aggregationNum": "10000"
},
{
"width": 3,
"title": "Service Response Time Percentile",
"height": "200",
"entityType": "Service",
"independentSelector": false,
"metricType": "LABELED_VALUE",
"metricName": "service_percentile",
"queryMetricType": "readLabeledMetricsValues",
"chartType": "ChartLine",
"unit": "ms",
"metricLabels": "P50, P75, P90, P95, P99",
"labelsIndex": "0, 1, 2, 3, 4"
},
{
"width": 3,
"title": "Successful Rate",
"height": "200",
"entityType": "Service",
"independentSelector": false,
"metricType": "REGULAR_VALUE",
"metricName": "service_sla",
"queryMetricType": "readMetricsValues",
"chartType": "ChartLine",
"unit": "%",
"aggregation": "/",
"aggregationNum": "100"
},
{
"width": 3,
"title": "Service Load",
"height": "200",
"entityType": "Service",
"independentSelector": false,
"metricType": "REGULAR_VALUE",
"metricName": "service_cpm",
"queryMetricType": "readMetricsValues",
"chartType": "ChartLine",
"unit": "CPM - calls per minute"
},
{
"width": "4",
"title": "Service Instances Load",
"height": "280",
"entityType": "ServiceInstance",
"independentSelector": false,
"metricType": "REGULAR_VALUE",
"metricName": "service_instance_cpm",
"queryMetricType": "sortMetrics",
"chartType": "ChartSlow",
"parentService": true,
"unit": "CPM - calls per minute"
},
{
"width": "4",
"title": "Slow Service Instance",
"height": "280",
"entityType": "ServiceInstance",
"independentSelector": false,
"metricType": "REGULAR_VALUE",
"metricName": "service_instance_resp_time",
"queryMetricType": "sortMetrics",
"chartType": "ChartSlow",
"parentService": true,
"unit": "ms"
},
{
"width": "4",
"title": "Service Instance Successful Rate",
"height": "280",
"entityType": "ServiceInstance",
"independentSelector": false,
"metricType": "REGULAR_VALUE",
"metricName": "service_instance_sla",
"queryMetricType": "sortMetrics",
"chartType": "ChartSlow",
"parentService": true,
"unit": "%",
"aggregation": "/",
"aggregationNum": "100",
"sortOrder": "ASC"
}
]
},
{
"name": "Instance",
"children": [
{
"width": "3",
"title": "Service Instance Load",
"height": "250",
"entityType": "ServiceInstance",
"independentSelector": false,
"metricType": "REGULAR_VALUE",
"metricName": "service_instance_cpm",
"queryMetricType": "readMetricsValues",
"chartType": "ChartLine",
"unit": "CPM - calls per minute"
},
{
"width": 3,
"title": "Service Instance Throughput",
"height": "250",
"entityType": "ServiceInstance",
"independentSelector": false,
"metricType": "REGULAR_VALUE",
"metricName": "service_instance_throughput_received,service_instance_throughput_sent",
"queryMetricType": "readMetricsValues",
"chartType": "ChartLine",
"unit": "Bytes"
},
{
"width": "3",
"title": "Service Instance Successful Rate",
"height": "250",
"entityType": "ServiceInstance",
"independentSelector": false,
"metricType": "REGULAR_VALUE",
"metricName": "service_instance_sla",
"queryMetricType": "readMetricsValues",
"chartType": "ChartLine",
"unit": "%",
"aggregation": "/",
"aggregationNum": "100"
},
{
"width": "3",
"title": "Service Instance Latency",
"height": "250",
"entityType": "ServiceInstance",
"independentSelector": false,
"metricType": "REGULAR_VALUE",
"metricName": "service_instance_resp_time",
"queryMetricType": "readMetricsValues",
"chartType": "ChartLine",
"unit": "ms"
},
{
"width": 3,
"title": "JVM CPU (Java Service)",
"height": "250",
"entityType": "ServiceInstance",
"independentSelector": false,
"metricType": "REGULAR_VALUE",
"metricName": "instance_jvm_cpu",
"queryMetricType": "readMetricsValues",
"chartType": "ChartLine",
"unit": "%",
"aggregation": "+",
"aggregationNum": ""
},
{
"width": 3,
"title": "JVM Memory (Java Service)",
"height": "250",
"entityType": "ServiceInstance",
"independentSelector": false,
"metricType": "REGULAR_VALUE",
"metricName": "instance_jvm_memory_heap, instance_jvm_memory_heap_max,instance_jvm_memory_noheap, instance_jvm_memory_noheap_max",
"queryMetricType": "readMetricsValues",
"chartType": "ChartLine",
"unit": "MB",
"aggregation": "/",
"aggregationNum": "1048576"
},
{
"width": 3,
"title": "JVM GC Time",
"height": "250",
"entityType": "ServiceInstance",
"independentSelector": false,
"metricType": "REGULAR_VALUE",
"metricName": "instance_jvm_young_gc_time, instance_jvm_old_gc_time",
"queryMetricType": "readMetricsValues",
"chartType": "ChartLine",
"unit": "ms"
},
{
"width": 3,
"title": "JVM GC Count",
"height": "250",
"entityType": "ServiceInstance",
"independentSelector": false,
"metricType": "REGULAR_VALUE",
"queryMetricType": "readMetricsValues",
"chartType": "ChartBar",
"metricName": "instance_jvm_young_gc_count, instance_jvm_old_gc_count"
},
{
"width": 3,
"title": "JVM Thread Count (Java Service)",
"height": "250",
"entityType": "ServiceInstance",
"independentSelector": false,
"metricType": "REGULAR_VALUE",
"queryMetricType": "readMetricsValues",
"chartType": "ChartLine",
"metricName": "instance_jvm_thread_live_count, instance_jvm_thread_daemon_count, instance_jvm_thread_peak_count,instance_jvm_thread_deadlocked,instance_jvm_thread_monitor_deadlocked"
},
{
"width": 3,
"title": "JVM Thread State Count (Java Service)",
"height": "250",
"entityType": "ServiceInstance",
"independentSelector": false,
"metricType": "REGULAR_VALUE",
"metricName": "instance_jvm_thread_new_thread_count,instance_jvm_thread_runnable_thread_count,instance_jvm_thread_blocked_thread_count,instance_jvm_thread_wait_thread_count,instance_jvm_thread_time_wait_thread_count,instance_jvm_thread_terminated_thread_count",
"queryMetricType": "readMetricsValues",
"chartType": "ChartBar"
},
{
"width": 3,
"title": "CLR CPU (.NET Service)",
"height": "250",
"entityType": "ServiceInstance",
"independentSelector": false,
"metricType": "REGULAR_VALUE",
"metricName": "instance_clr_cpu",
"queryMetricType": "readMetricsValues",
"chartType": "ChartLine",
"unit": "%"
},
{
"width": 3,
"title": "CLR GC (.NET Service)",
"height": "250",
"entityType": "ServiceInstance",
"independentSelector": false,
"metricType": "REGULAR_VALUE",
"metricName": "instance_clr_gen0_collect_count, instance_clr_gen1_collect_count, instance_clr_gen2_collect_count",
"queryMetricType": "readMetricsValues",
"chartType": "ChartBar"
},
{
"width": 3,
"title": "CLR Heap Memory (.NET Service)",
"height": "250",
"entityType": "ServiceInstance",
"independentSelector": false,
"metricType": "REGULAR_VALUE",
"metricName": "instance_clr_heap_memory",
"queryMetricType": "readMetricsValues",
"chartType": "ChartLine",
"unit": "MB",
"aggregation": "/",
"aggregationNum": "1048576"
},
{
"width": 3,
"title": "CLR Thread (.NET Service)",
"height": "250",
"entityType": "ServiceInstance",
"independentSelector": false,
"metricType": "REGULAR_VALUE",
"queryMetricType": "readMetricsValues",
"chartType": "ChartLine",
"metricName": "instance_clr_available_completion_port_threads,instance_clr_available_worker_threads,instance_clr_max_completion_port_threads,instance_clr_max_worker_threads"
}
]
},
{
"name": "Endpoint",
"children": [
{
"width": "4",
"title": "Endpoint Load in Current Service",
"height": "280",
"entityType": "Endpoint",
"independentSelector": false,
"metricType": "REGULAR_VALUE",
"metricName": "endpoint_cpm",
"queryMetricType": "sortMetrics",
"chartType": "ChartSlow",
"parentService": true,
"unit": "CPM - calls per minute"
},
{
"width": "4",
"title": "Slow Endpoints in Current Service",
"height": "280",
"entityType": "Endpoint",
"independentSelector": false,
"metricType": "REGULAR_VALUE",
"queryMetricType": "sortMetrics",
"chartType": "ChartSlow",
"metricName": "endpoint_avg",
"unit": "ms",
"parentService": true
},
{
"width": "4",
"title": "Successful Rate in Current Service",
"height": "280",
"entityType": "Endpoint",
"independentSelector": false,
"metricType": "REGULAR_VALUE",
"metricName": "endpoint_sla",
"queryMetricType": "sortMetrics",
"chartType": "ChartSlow",
"aggregation": "/",
"aggregationNum": "100",
"parentService": true,
"unit": "%",
"sortOrder": "ASC"
},
{
"width": 3,
"title": "Endpoint Load",
"height": 350,
"entityType": "Endpoint",
"independentSelector": false,
"metricType": "REGULAR_VALUE",
"metricName": "endpoint_cpm",
"queryMetricType": "readMetricsValues",
"chartType": "ChartLine"
},
{
"width": 3,
"title": "Endpoint Avg Response Time",
"height": 350,
"entityType": "Endpoint",
"independentSelector": false,
"metricType": "REGULAR_VALUE",
"metricName": "endpoint_avg",
"queryMetricType": "readMetricsValues",
"chartType": "ChartLine",
"unit": "ms"
},
{
"width": 3,
"title": "Endpoint Response Time Percentile",
"height": 350,
"entityType": "Endpoint",
"independentSelector": false,
"metricType": "LABELED_VALUE",
"metricName": "endpoint_percentile",
"queryMetricType": "readLabeledMetricsValues",
"chartType": "ChartLine",
"metricLabels": "P50, P75, P90, P95, P99",
"labelsIndex": "0, 1, 2, 3, 4",
"unit": "ms"
},
{
"width": 3,
"title": "Endpoint Successful Rate",
"height": 350,
"entityType": "Endpoint",
"independentSelector": false,
"metricType": "REGULAR_VALUE",
"metricName": "endpoint_sla",
"queryMetricType": "readMetricsValues",
"chartType": "ChartLine",
"unit": "%",
"aggregation": "/",
"aggregationNum": "100"
}
]
}
]
}
]
# Activated as the DASHBOARD type, makes this templates added into the UI page automatically.
# False means providing a basic template, user needs to add it manually.
activated: true
# True means wouldn"t show up on the dashboard. Only keeps the definition in the storage.
disabled: false
效果展示
代码贡献
- Add some new thread metric and class metric to JVMMetric #7230
- add some new thread metric and class metric to JVMMetric #52
- Remove Terminated State and New State in JVMMetric (#7230) #53
- Add some new thread metric and class metric to JVMMetric (#7230) #7243
总结
Metric 如何扩展，网上基本上没案例，都是看官方文档和源码了解。对应这种非常热门的开源项目，还是看官方文档和源码更稳。
参考文档
- Java ManagementFactory解析
- 编程中使用ThreadMXBean类来检测死锁
- Source and Scope extension for new metrics
- Observability Analysis Language
分享并记录所学所见
