一个最简单的消息队列,带你理解 RabbitMQ!

一个最简单的消息队列,带你理解 RabbitMQ!

作者:海向
来源:https://www.cnblogs.com/haixiang/p/10826710.html

RabbitMQ 简述

RabbitMQ是一个消息代理:它接受并转发消息。 您可以将其视为邮局:当您将要把寄发的邮件投递到邮箱中时,您可以确信Postman 先生最终会将邮件发送给收件人。 在这个比喻中,RabbitMQ是一个邮箱,邮局和邮递员,用来接受,存储和转发二进制数据块的消息。

队列就像是在RabbitMQ中扮演邮箱的角色。 虽然消息经过RabbitMQ和应用程序,但它们只能存储在队列中。 队列只受主机的内存和磁盘限制的限制,它本质上是一个大的消息缓冲区。 许多生产者可以发送到一个队列的消息,许多消费者可以尝试从一个队列接收数据。

producer即为生产者,用来产生消息发送给队列。consumer是消费者,需要去读队列内的消息。producer,consumer和broker(rabbitMQ server)不必驻留在同一个主机上;确实在大多数应用程序中它们是这样分布的。

简单队列

简单队列是最简单的一种模式,由生产者、队列、消费者组成。生产者将消息发送给队列,消费者从队列中读取消息完成消费。

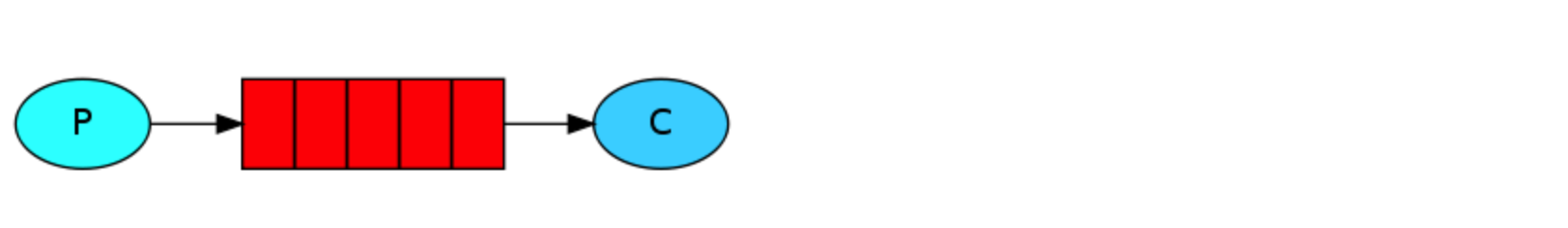

在下图中,“P”是我们的生产者,“C”是我们的消费者。 中间的框是队列 – RabbitMQ代表消费者的消息缓冲区。

java 方式

生产者

package com.anqi.mq.nat;

import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;

public class MyProducer {
    private static final String QUEUE_NAME = "ITEM_QUEUE";

    public static void main(String[] args) throws Exception {
        //1. 创建一个 ConnectionFactory 并进行设置
        ConnectionFactory factory = new ConnectionFactory();
        factory.setHost("localhost");
        factory.setVirtualHost("/");
        factory.setUsername("guest");
        factory.setPassword("guest");

        //2. 通过连接工厂来创建连接
        Connection connection = factory.newConnection();

        //3. 通过 Connection 来创建 Channel
        Channel channel = connection.createChannel();

        //实际场景中,消息多为json格式的对象
        String msg = "hello";
        //4. 发送三条数据
        for (int i = 1; i <= 3 ; i++) {
            channel.basicPublish("", QUEUE_NAME, null, msg.getBytes());
            System.out.println("Send message" + i +" : " + msg);
        }

        //5. 关闭连接
        channel.close();
        connection.close();
    }
}
/**
 * Declare a queue
 * @param queue the name of the queue
 * @param durable true if we are declaring a durable queue (the queue will survive a server restart)
 * @param exclusive true if we are declaring an exclusive queue (restricted to this connection)
 * @param autoDelete true if we are declaring an autodelete queue (server will delete it when no longer in use)
 * @param arguments other properties (construction arguments) for the queue
 * @return a declaration-confirm method to indicate the queue was successfully declared
 * @throws java.io.IOException if an error is encountered
 */
Queue.DeclareOk queueDeclare(String queue, boolean durable, boolean exclusive, boolean autoDelete,Map<String, Object> arguments) throws IOException;

/**
 * Publish a message
 * @see com.rabbitmq.client.AMQP.Basic.Publish
 * @param exchange the exchange to publish the message to
 * @param routingKey the routing key
 * @param props other properties for the message - routing headers etc
 * @param body the message body
 * @throws java.io.IOException if an error is encountered
 */
void basicPublish(String exchange, String routingKey, BasicProperties props, byte[] body) throws IOException;


/**
 * Start a non-nolocal, non-exclusive consumer, with
 * a server-generated consumerTag.
 * @param queue the name of the queue
 * @param autoAck true if the server should consider messages
 * acknowledged once delivered; false if the server should expect
 * explicit acknowledgements
 * @param callback an interface to the consumer object
 * @return the consumerTag generated by the server
 * @throws java.io.IOException if an error is encountered
 * @see com.rabbitmq.client.AMQP.Basic.Consume
 * @see com.rabbitmq.client.AMQP.Basic.ConsumeOk
 * @see #basicConsume(String, boolean, String, boolean, boolean, Map, Consumer)
 */
String basicConsume(String queue, boolean autoAck, Consumer callback) throws IOException;

消费者

package com.anqi.mq.nat;

import com.rabbitmq.client.*;
import java.io.IOException;

public class MyConsumer {

    private static final String QUEUE_NAME = "ITEM_QUEUE";

    public static void main(String[] args) throws Exception {
        //1. 创建一个 ConnectionFactory 并进行设置
        ConnectionFactory factory = new ConnectionFactory();
        factory.setHost("localhost");
        factory.setVirtualHost("/");
        factory.setUsername("guest");
        factory.setPassword("guest");

        //2. 通过连接工厂来创建连接
        Connection connection = factory.newConnection();

        //3. 通过 Connection 来创建 Channel
        Channel channel = connection.createChannel();

        //4. 声明一个队列
        channel.queueDeclare(QUEUE_NAME, true, false, false, null);
        System.out.println(" [*] Waiting for messages. To exit press CTRL+C");

        /*
           true:表示自动确认,只要消息从队列中获取,无论消费者获取到消息后是否成功消费,都会认为消息已经成功消费
           false:表示手动确认,消费者获取消息后,服务器会将该消息标记为不可用状态,等待消费者的反馈,如果消费者一
           直没有反馈,那么该消息将一直处于不可用状态,并且服务器会认为该消费者已经挂掉,不会再给其发送消息,
           直到该消费者反馈。
        */

        //5. 创建消费者并接收消息
        Consumer consumer = new DefaultConsumer(channel) {
            @Override
            public void handleDelivery(String consumerTag, Envelope envelope,
                                       AMQP.BasicProperties properties, byte[] body)
                    throws IOException {
                String message = new String(body, "UTF-8");
                System.out.println(" [x] Received "" + message + """);
            }
        };

        //6. 设置 Channel 消费者绑定队列
        channel.basicConsume(QUEUE_NAME, true, consumer);

    }
}

Send message1 : hello
Send message2 : hello
Send message3 : hello

 [*] Waiting for messages. To exit press CTRL+C
 [x] Received "hello"
 [x] Received "hello"
 [x] Received "hello"

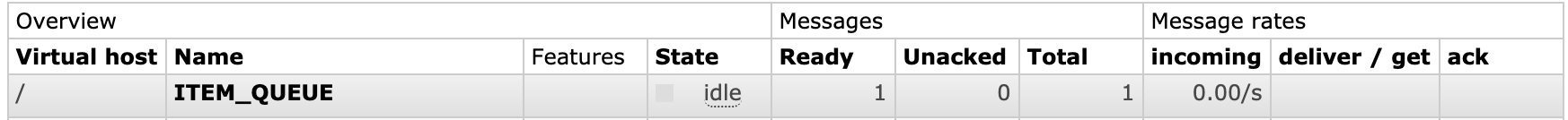

当我们启动生产者之后查看RabbitMQ管理后台可以看到有一条消息正在等待被消费。

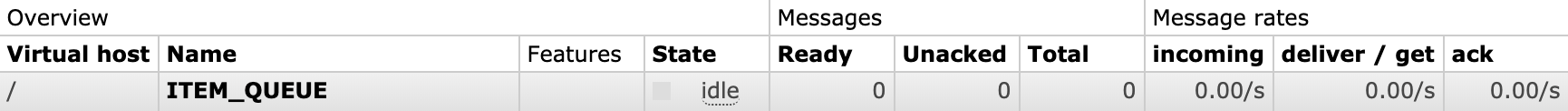

当我们启动消费者之后再次查看,可以看到积压的一条消息已经被消费。

总结

队列声明queueDeclare的参数:第一个参数表示队列名称、第二个参数为是否持久化(true表示是,队列将在服务器重启时生存)、第三个参数为是否是独占队列(创建者可以使用的私有队列,断开后自动删除)、第四个参数为当所有消费者客户端连接断开时是否自动删除队列、第五个参数为队列的其他参数。

basicConsume的第二个参数autoAck: 应答模式,true:自动应答,即消费者获取到消息,该消息就会从队列中删除掉,false:手动应答,当从队列中取出消息后,需要程序员手动调用方法应答,如果没有应答,该消息还会再放进队列中,就会出现该消息一直没有被消费掉的现象。

这种简单队列的模式,系统会为每个队列隐式地绑定一个默认交换机,交换机名称为” (AMQP default)”,类型为直连 direct,当你手动创建一个队列时,系统会自动将这个队列绑定到一个名称为空的 Direct 类型的交换机上,绑定的路由键 routing key 与队列名称相同,相当于channel.queueBind(queue:"QUEUE_NAME", exchange:"(AMQP default)“, routingKey:"QUEUE_NAME");虽然实例没有显式声明交换机,但是当路由键和队列名称一样时,就会将消息发送到这个默认的交换机中。这种方式比较简单,但是无法满足复杂的业务需求,所以通常在生产环境中很少使用这种方式。

The default exchange is implicitly bound to every queue, with a routing key equal to the queue name. It is not possible to explicitly bind to, or unbind from the default exchange. It also cannot be deleted.默认交换机隐式绑定到每个队列,其中路由键等于队列名称。不可能显式绑定到,或从缺省交换中解除绑定。它也不能被删除。

——引自 RabbitMQ 官方文档

spring-amqp方式

引入 Maven 依赖

<dependency>
    <groupId>com.rabbitmq</groupId>
    <artifactId>amqp-client</artifactId>
    <version>5.6.0</version>
</dependency>
<dependency>
    <groupId>org.springframework.amqp</groupId>
    <artifactId>spring-rabbit</artifactId>
    <version>2.1.5.RELEASE</version>
</dependency>

spring 配置文件

<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:rabbit="http://www.springframework.org/schema/rabbit"
       xsi:schemaLocation="http://www.springframework.org/schema/rabbit
           https://www.springframework.org/schema/rabbit/spring-rabbit.xsd
           http://www.springframework.org/schema/beans
           https://www.springframework.org/schema/beans/spring-beans.xsd">

    <rabbit:connection-factory id="connectionFactory" host="localhost" virtual-host="/"
    username="guest" password="guest"/>
    <rabbit:template id="amqpTemplate" connection-factory="connectionFactory"/>
    <rabbit:admin connection-factory="connectionFactory"/>
    <rabbit:queue name="MY-QUEUE"/>
</beans>

使用测试

import org.springframework.amqp.core.AmqpTemplate;
import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;

public class Main {
    public static void main(String[] args) {
        ApplicationContext app = new ClassPathXmlApplicationContext("spring/rabbit-context.xml");
        AmqpTemplate amqpTemplate = app.getBean(AmqpTemplate.class);
        amqpTemplate.convertAndSend("MY-QUEUE", "Item");
        String msg = (String) amqpTemplate.receiveAndConvert("MY-QUEUE");
        System.out.println(msg);
    }
}

参考方法

/**
 * Convert a Java object to an Amqp {@link Message} and send it to a specific exchange
 * with a specific routing key.
 *
 * @param exchange the name of the exchange
 * @param routingKey the routing key
 * @param message a message to send
 * @throws AmqpException if there is a problem
 */
void convertAndSend(String exchange, String routingKey, Object message) throws AmqpException;
/**
	 * Receive a message if there is one from a specific queue and convert it to a Java
	 * object. Returns immediately, possibly with a null value.
	 *
	 * @param queueName the name of the queue to poll
	 * @return a message or null if there is none waiting
	 * @throws AmqpException if there is a problem
	 */
@Nullable
Object receiveAndConvert(String queueName) throws AmqpException;
