RabbitMQ 中的 7 种队列模式，写得太好了！

RabbitMQ 中的 7 种队列模式，写得太好了！

七种模式介绍与应用场景

简单模式（Hello World）

做最简单的事情，一个生产者对应一个消费者，RabbitMQ相当于一个消息代理，负责将A的消息转发给B

应用场景： 将发送的电子邮件放到消息队列，然后邮件服务在队列中获取邮件并发送给收件人

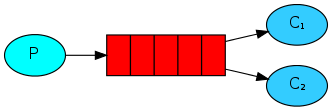

工作队列模式（Work queues）

在多个消费者之间分配任务（竞争的消费者模式），一个生产者对应多个消费者，一般适用于执行资源密集型任务，单个消费者处理不过来，需要多个消费者进行处理

应用场景： 一个订单的处理需要10s，有多个订单可以同时放到消息队列，然后让多个消费者同时处理，这样就是并行了，而不是单个消费者的串行情况

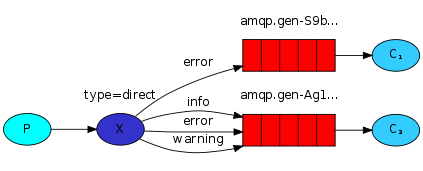

订阅模式（Publish/Subscribe）

一次向许多消费者发送消息，一个生产者发送的消息会被多个消费者获取，也就是将消息将广播到所有的消费者中。

应用场景： 更新商品库存后需要通知多个缓存和多个数据库，这里的结构应该是：

  • 一个fanout类型交换机扇出两个个消息队列，分别为缓存消息队列、数据库消息队列
  • 一个缓存消息队列对应着多个缓存消费者
  • 一个数据库消息队列对应着多个数据库消费者

路由模式（Routing）

有选择地（Routing key）接收消息，发送消息到交换机并且要指定路由key ，消费者将队列绑定到交换机时需要指定路由key，仅消费指定路由key的消息

应用场景： 如在商品库存中增加了1台iphone12，iphone12促销活动消费者指定routing key为iphone12，只有此促销活动会接收到消息，其它促销活动不关心也不会消费此routing key的消息

主题模式（Topics）

根据主题（Topics）来接收消息，将路由key和某模式进行匹配，此时队列需要绑定在一个模式上，#匹配一个词或多个词，*只匹配一个词。

应用场景： 同上，iphone促销活动可以接收主题为iphone的消息，如iphone12、iphone13等

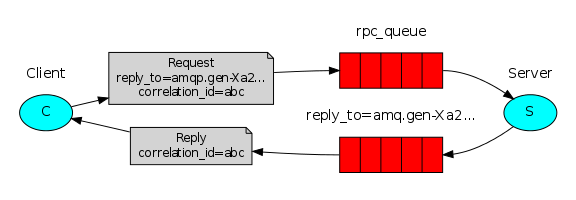

远程过程调用（RPC）

如果我们需要在远程计算机上运行功能并等待结果就可以使用RPC，具体流程可以看图。应用场景：需要等待接口返回数据，如订单支付

发布者确认（Publisher Confirms）

与发布者进行可靠的发布确认，发布者确认是RabbitMQ扩展，可以实现可靠的发布。在通道上启用发布者确认后，RabbitMQ将异步确认发送者发布的消息，这意味着它们已在服务器端处理。

应用场景： 对于消息可靠性要求较高，比如钱包扣款

代码演示

代码中没有对后面两种模式演示，有兴趣可以自己研究

简单模式

import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

public class Sender {

    private final static String QUEUE_NAME = "simple_queue";

    public static void main(String[] args) throws IOException, TimeoutException {
        ConnectionFactory factory = new ConnectionFactory();
        factory.setHost("localhost");
        factory.setPort(5672);
        Connection connection = factory.newConnection();
        Channel channel = connection.createChannel();

        // 声明队列
        // queue：队列名
        // durable：是否持久化
        // exclusive：是否排外 即只允许该channel访问该队列 一般等于true的话用于一个队列只能有一个消费者来消费的场景
        // autoDelete：是否自动删除 消费完删除
        // arguments：其他属性
        channel.queueDeclare(QUEUE_NAME, false, false, false, null);

        //消息内容
        String message = "simplest mode message";
        channel.basicPublish("", QUEUE_NAME, null, message.getBytes());
        System.out.println("[x]Sent "" + message + """);

        //最后关闭通关和连接
        channel.close();
        connection.close();

    }
}
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;
import com.rabbitmq.client.DeliverCallback;

import java.io.IOException;
import java.util.concurrent.TimeoutException;


public class Receiver {

    private final static String QUEUE_NAME = "simplest_queue";

    public static void main(String[] args) throws IOException, InterruptedException, TimeoutException {
        // 获取连接
        ConnectionFactory factory = new ConnectionFactory();
        factory.setHost("localhost");
        factory.setPort(5672);
        Connection connection = factory.newConnection();
        Channel channel = connection.createChannel();

        channel.queueDeclare(QUEUE_NAME, false, false, false, null);

        DeliverCallback deliverCallback = (consumerTag, delivery) -> {
            String message = new String(delivery.getBody(), "UTF-8");
            System.out.println(" [x] Received "" +
                    delivery.getEnvelope().getRoutingKey() + "":"" + message + """);
        };
        channel.basicConsume(QUEUE_NAME, true, deliverCallback, consumerTag -> {
        });
    }
}

工作队列模式

import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;
import com.rabbitmq.client.DeliverCallback;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

public class Receiver1 {

    private final static String QUEUE_NAME = "queue_work";

    public static void main(String[] args) throws IOException, InterruptedException, TimeoutException {
        ConnectionFactory factory = new ConnectionFactory();
        factory.setHost("localhost");
        factory.setPort(5672);
        Connection connection = factory.newConnection();
        Channel channel = connection.createChannel();

        channel.queueDeclare(QUEUE_NAME, false, false, false, null);
        // 同一时刻服务器只会发送一条消息给消费者
        channel.basicQos(1);

        DeliverCallback deliverCallback = (consumerTag, delivery) -> {
            String message = new String(delivery.getBody(), "UTF-8");
            System.out.println(" [x] Received "" +
                    delivery.getEnvelope().getRoutingKey() + "":"" + message + """);
        };
        channel.basicConsume(QUEUE_NAME, true, deliverCallback, consumerTag -> {
        });

    }
}
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;
import com.rabbitmq.client.DeliverCallback;

import java.io.IOException;
import java.util.concurrent.TimeoutException;


public class Receiver2 {

    private final static String QUEUE_NAME = "queue_work";

    public static void main(String[] args) throws IOException, InterruptedException, TimeoutException {
        ConnectionFactory factory = new ConnectionFactory();
        factory.setHost("localhost");
        factory.setPort(5672);
        Connection connection = factory.newConnection();
        Channel channel = connection.createChannel();


        channel.queueDeclare(QUEUE_NAME, false, false, false, null);
        // 同一时刻服务器只会发送一条消息给消费者
        channel.basicQos(1);

        DeliverCallback deliverCallback = (consumerTag, delivery) -> {
            String message = new String(delivery.getBody(), "UTF-8");
            System.out.println(" [x] Received "" +
                    delivery.getEnvelope().getRoutingKey() + "":"" + message + """);
        };
        channel.basicConsume(QUEUE_NAME, true, deliverCallback, consumerTag -> {
        });

    }
}
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;

import java.io.IOException;
import java.util.concurrent.TimeoutException;


public class Sender {

    private final static String QUEUE_NAME = "queue_work";

    public static void main(String[] args) throws IOException, InterruptedException, TimeoutException {
        ConnectionFactory factory = new ConnectionFactory();
        factory.setHost("localhost");
        factory.setPort(5672);
        Connection connection = factory.newConnection();
        Channel channel = connection.createChannel();

        // 声明队列
        channel.queueDeclare(QUEUE_NAME, false, false, false, null);
        for (int i = 0; i < 100; i++) {
            String message = "work mode message" + i;
            channel.basicPublish("", QUEUE_NAME, null, message.getBytes());
            System.out.println("[x] Sent "" + message + """);
            Thread.sleep(i * 10);
        }

        channel.close();
        connection.close();
    }
}

发布订阅模式

import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;
import com.rabbitmq.client.DeliverCallback;

public class Receive1 {

    private static final String EXCHANGE_NAME = "logs";

    public static void main(String[] argv) throws Exception {
        ConnectionFactory factory = new ConnectionFactory();
        factory.setHost("localhost");
        Connection connection = factory.newConnection();
        Channel channel = connection.createChannel();


        channel.exchangeDeclare(EXCHANGE_NAME, "fanout");
        String queueName = channel.queueDeclare().getQueue();
        channel.queueBind(queueName, EXCHANGE_NAME, "");

        System.out.println(" [*] Waiting for messages. To exit press CTRL+C");

        // 订阅消息的回调函数
        DeliverCallback deliverCallback = (consumerTag, delivery) -> {
            String message = new String(delivery.getBody(), "UTF-8");
            System.out.println(" [x] Received "" + message + """);
        };

        // 消费者，有消息时出发订阅回调函数
        channel.basicConsume(queueName, true, deliverCallback, consumerTag -> {
        });
    }
}
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;
import com.rabbitmq.client.DeliverCallback;

public class Receive2 {

    private static final String EXCHANGE_NAME = "logs";

    public static void main(String[] argv) throws Exception {
        ConnectionFactory factory = new ConnectionFactory();
        factory.setHost("localhost");
        Connection connection = factory.newConnection();
        Channel channel = connection.createChannel();


        channel.exchangeDeclare(EXCHANGE_NAME, "fanout");
        String queueName = channel.queueDeclare().getQueue();
        channel.queueBind(queueName, EXCHANGE_NAME, "");

        System.out.println(" [*] Waiting for messages. To exit press CTRL+C");

        // 订阅消息的回调函数
        DeliverCallback deliverCallback = (consumerTag, delivery) -> {
            String message = new String(delivery.getBody(), "UTF-8");
            System.out.println(" [x] Received2 "" + message + """);
        };

        // 消费者，有消息时出发订阅回调函数
        channel.basicConsume(queueName, true, deliverCallback, consumerTag -> {
        });
    }
}
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;

public class Sender {

    private static final String EXCHANGE_NAME = "logs";

    public static void main(String[] argv) throws Exception {
        ConnectionFactory factory = new ConnectionFactory();
        factory.setHost("localhost");
        Connection connection = factory.newConnection();
        Channel channel = connection.createChannel();


        channel.exchangeDeclare(EXCHANGE_NAME, "fanout");

        String message = "publish subscribe message";
        channel.basicPublish(EXCHANGE_NAME, "", null, message.getBytes("UTF-8"));
        System.out.println(" [x] Sent "" + message + """);

        channel.close();
        connection.close();
    }
}

路由模式

import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;
import com.rabbitmq.client.DeliverCallback;

import java.io.IOException;
import java.util.concurrent.TimeoutException;


public class Receiver1 {

    private final static String QUEUE_NAME = "queue_routing";
    private final static String EXCHANGE_NAME = "exchange_direct";

    public static void main(String[] args) throws IOException, TimeoutException {
        ConnectionFactory factory = new ConnectionFactory();
        factory.setHost("localhost");
        factory.setPort(5672);
        Connection connection = factory.newConnection();
        Channel channel = connection.createChannel();


        channel.queueDeclare(QUEUE_NAME, false, false, false, null);
        // 指定路由的key，接收key和key2
        channel.queueBind(QUEUE_NAME, EXCHANGE_NAME, "key");
        channel.queueBind(QUEUE_NAME, EXCHANGE_NAME, "key2");

        channel.basicQos(1);

        DeliverCallback deliverCallback = (consumerTag, delivery) -> {
            String message = new String(delivery.getBody(), "UTF-8");
            System.out.println(" [x] Received "" +
                    delivery.getEnvelope().getRoutingKey() + "":"" + message + """);
        };
        channel.basicConsume(QUEUE_NAME, true, deliverCallback, consumerTag -> {
        });
    }

}
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;
import com.rabbitmq.client.DeliverCallback;

import java.io.IOException;
import java.util.concurrent.TimeoutException;


public class Receiver2 {

    private final static String QUEUE_NAME = "queue_routing2";
    private final static String EXCHANGE_NAME = "exchange_direct";

    public static void main(String[] args) throws IOException, TimeoutException {
        ConnectionFactory factory = new ConnectionFactory();
        factory.setHost("localhost");
        factory.setPort(5672);
        Connection connection = factory.newConnection();
        Channel channel = connection.createChannel();


        channel.queueDeclare(QUEUE_NAME, false, false, false, null);
        // 仅接收key2
        channel.queueBind(QUEUE_NAME, EXCHANGE_NAME, "key2");

        channel.basicQos(1);

        DeliverCallback deliverCallback = (consumerTag, delivery) -> {
            String message = new String(delivery.getBody(), "UTF-8");
            System.out.println(" [x] Received "" +
                    delivery.getEnvelope().getRoutingKey() + "":"" + message + """);
        };
        channel.basicConsume(QUEUE_NAME, true, deliverCallback, consumerTag -> {
        });


    }
}
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;

import java.io.IOException;
import java.util.concurrent.TimeoutException;


public class Sender {

    private final static String EXCHANGE_NAME = "exchange_direct";
    private final static String EXCHANGE_TYPE = "direct";

    public static void main(String[] args) throws IOException, TimeoutException {
        ConnectionFactory factory = new ConnectionFactory();
        factory.setHost("localhost");
        factory.setPort(5672);
        Connection connection = factory.newConnection();
        Channel channel = connection.createChannel();

        // 交换机声明
        channel.exchangeDeclare(EXCHANGE_NAME, EXCHANGE_TYPE);

        // 只有routingKey相同的才会消费
        String message = "routing mode message";
        channel.basicPublish(EXCHANGE_NAME, "key2", null, message.getBytes());
        System.out.println("[x] Sent "" + message + """);
// channel.basicPublish(EXCHANGE_NAME, "key", null, message.getBytes());
// System.out.println("[x] Sent "" + message + """);

        channel.close();
        connection.close();
    }
}

主题模式

public class Receiver1 {

    private final static String QUEUE_NAME = "queue_topic";
    private final static String EXCHANGE_NAME = "exchange_topic";

    public static void main(String[] args) throws IOException, InterruptedException, TimeoutException {
        ConnectionFactory factory = new ConnectionFactory();
        factory.setHost("localhost");
        factory.setPort(5672);
        Connection connection = factory.newConnection();
        Channel channel = connection.createChannel();

        channel.queueDeclare(QUEUE_NAME, false, false, false, null);
        // 可以接收key.1
        channel.queueBind(QUEUE_NAME, EXCHANGE_NAME, "key.*");

        channel.basicQos(1);

        DeliverCallback deliverCallback = (consumerTag, delivery) -> {
            String message = new String(delivery.getBody(), "UTF-8");
            System.out.println(" [x] Received "" +
                    delivery.getEnvelope().getRoutingKey() + "":"" + message + """);
        };
        channel.basicConsume(QUEUE_NAME, true, deliverCallback, consumerTag -> {
        });
    }
}
public class Receiver1 {

    private final static String QUEUE_NAME = "queue_topic";
    private final static String EXCHANGE_NAME = "exchange_topic";

    public static void main(String[] args) throws IOException, InterruptedException, TimeoutException {
        ConnectionFactory factory = new ConnectionFactory();
        factory.setHost("localhost");
        factory.setPort(5672);
        Connection connection = factory.newConnection();
        Channel channel = connection.createChannel();

        channel.queueDeclare(QUEUE_NAME, false, false, false, null);
        // 可以接收key.1
        channel.queueBind(QUEUE_NAME, EXCHANGE_NAME, "key.*");

        channel.basicQos(1);

        DeliverCallback deliverCallback = (consumerTag, delivery) -> {
            String message = new String(delivery.getBody(), "UTF-8");
            System.out.println(" [x] Received "" +
                    delivery.getEnvelope().getRoutingKey() + "":"" + message + """);
        };
        channel.basicConsume(QUEUE_NAME, true, deliverCallback, consumerTag -> {
        });
    }
}

import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;

import java.io.IOException;
import java.util.concurrent.TimeoutException;


public class Sender {

    private final static String EXCHANGE_NAME = "exchange_topic";
    private final static String EXCHANGE_TYPE = "topic";

    public static void main(String[] args) throws IOException, TimeoutException {
        ConnectionFactory factory = new ConnectionFactory();
        factory.setHost("localhost");
        factory.setPort(5672);
        Connection connection = factory.newConnection();
        Channel channel = connection.createChannel();

        channel.exchangeDeclare(EXCHANGE_NAME, EXCHANGE_TYPE);

        String message = "topics model message with key.1";
        channel.basicPublish(EXCHANGE_NAME, "key.1", null, message.getBytes());
        System.out.println("[x] Sent "" + message + """);
        String message2 = "topics model message with key.1.2";
        channel.basicPublish(EXCHANGE_NAME, "key.1.2", null, message2.getBytes());
        System.out.println("[x] Sent "" + message2 + """);

        channel.close();
        connection.close();
    }
}

四种交换机介绍

1、直连交换机（Direct exchange）：

具有路由功能的交换机，绑定到此交换机的时候需要指定一个routing_key，交换机发送消息的时候需要routing_key，会将消息发送道对应的队列

2、扇形交换机（Fanout exchange）：

广播消息到所有队列，没有任何处理，速度最快

3、主题交换机（Topic exchange）：

在直连交换机基础上增加模式匹配，也就是对routing_key进行模式匹配，*代表一个单词，#代表多个单词

4、首部交换机（Headers exchange）：

忽略routing_key，使用Headers信息（一个Hash的数据结构）进行匹配，优势在于可以有更多更灵活的匹配规则

总结

这么多种队列模式中都有其应用场景，大家可以根据应用场景示例中进行选择。

原文链接：https://blog.csdn.net/qq_32828253/article/details/110450249

版权声明：本文为CSDN博主「我思知我在」的原创文章，遵循CC 4.0 BY-SA版权协议，转载请附上原文出处链接及本声明。

近期热文推荐：

1.600+ 道 Java面试题及答案整理(2021最新版)

2.终于靠开源项目弄到 IntelliJ IDEA 激活码了，真香！

3.阿里 Mock 工具正式开源，干掉市面上所有 Mock 工具！

4.Spring Cloud 2020.0.0 正式发布，全新颠覆性版本！

5.《Java开发手册（嵩山版）》最新发布，速速下载！

觉得不错，别忘了随手点赞+转发哦！

hmoban主题是根据ripro二开的主题，极致后台体验，无插件，集成会员系统
自学咖网 » RabbitMQ 中的 7 种队列模式，写得太好了！

wen 普通

分享到：

相关推荐

Day14 note1

package com.oop.demo06;public class Person { public void run(){ System.out.println("run"); }} package com.oop....

如何解决php cookies乱码问题

php cookies乱码的解决办法：首先在写入Cookie时，将其用Url编码；然后重新写入Cookie；最后在读取时进行Url解码即可。 本文操作环境：windows7系统、PHP7.1版，DELL G3电脑 php...

实例详解PHP如何在两个大文件中找出相同记录

本篇文章给大家带来了关于PHP的相关知识，给定a，b两个文件, 分别有x，y行数据, 其中(x, y均大于10亿), 机器内存限制100M，该如何找出其中相同的记录?本文就来为大家讲解一下实现方法，希望对大家有帮助。 （...

网络编程与通信原理

应用层：HTTP超文本传输协议，基于TCP/IP通信协议来传递数据；传输层：TCP传输控制协议，采用三次握手的方式建立连接，形成数据传输通道；网络层：IP协议，作用是把各种传输的数据包发送给请求的接收方；
