springboot jpa 多数据源的案例

一、先来个application.properties文件

spring.profiles.active=@package.environment@

spring.mvc.favicon.enable=false

#thymelea模板配置
spring.thymeleaf.prefix=classpath:/templates/
spring.thymeleaf.suffix=.html
spring.thymeleaf.mode=HTML
spring.thymeleaf.encoding=UTF-8
#热部署文件，页面不产生缓存，及时更新
spring.thymeleaf.cache=false
spring.resources.chain.strategy.content.enabled=true
spring.resources.chain.strategy.content.paths=/**

#server.port=8080
#server.session.timeout=28800
server.servlet.session.timeout=3600s
#server.servlet.context-path=/shiro
#spring.main.allow-bean-definition-overriding=true

#spring.datasource.driver-class-name=com.mysql.cj.jdbc.Driver
#spring.datasource.url=jdbc:mysql://127.0.0.1:3306/tweb?useUnicode=true&useSSL=false&characterEncoding=UTF-8&serverTimezone=UTC
#spring.datasource.username=root
#spring.datasource.password=root__

spring.jpa.hibernate.ddl-auto=update
#spring.jpa.hibernate.ddl-auto:create-drop
spring.jpa.database-platform=org.hibernate.dialect.MySQL8Dialect
spring.jpa.show-sql=true
spring.jpa.properties.hibernate.format_sql=true
spring.jpa.database=mysql
spring.jpa.properties.hibernate.dialect=org.hibernate.dialect.MySQL8Dialect


spring.datasource.primary.driver-class-name=com.mysql.cj.jdbc.Driver
spring.datasource.primary.jdbc-url=jdbc:mysql://127.0.0.1:3306/test01?useUnicode=true&useSSL=false&characterEncoding=UTF-8&serverTimezone=UTC
spring.datasource.primary.username=root
spring.datasource.primary.password=root__

spring.datasource.second.driver-class-name=com.mysql.cj.jdbc.Driver
spring.datasource.second.jdbc-url=jdbc:mysql://127.0.0.1:3306/test02?useUnicode=true&useSSL=false&characterEncoding=UTF-8&serverTimezone=UTC
spring.datasource.second.username=root
spring.datasource.second.password=root__

先说第一个坑，默认的jpa用的是spring.datasource.下，且JdbcURL的连接key为url。

#spring.datasource.driver-class-name=com.mysql.cj.jdbc.Driver
#spring.datasource.url=jdbc:mysql://127.0.0.1:3306/tweb?useUnicode=true&useSSL=false&characterEncoding=UTF-8&serverTimezone=UTC
#spring.datasource.username=root
#spring.datasource.password=root__

而自定义数据源的为spring.datasource.xxxx.下（xxxx为自定义数据源标识），且JdbcURL的连接key为jdbc-url。

spring.datasource.primary.driver-class-name=com.mysql.cj.jdbc.Driver
spring.datasource.primary.jdbc-url=jdbc:mysql://127.0.0.1:3306/test01?useUnicode=true&useSSL=false&characterEncoding=UTF-8&serverTimezone=UTC
spring.datasource.primary.username=root
spring.datasource.primary.password=root__

二、再来个pom.xml引入依赖

<project xmlns="http://maven.apache.org/POM/4.0.0"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>

	<groupId>com.imddysc</groupId>
	<artifactId>springbootmultidatasources</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<packaging>jar</packaging>

	<name>springbootmultidatasources</name>
	<url>http://maven.apache.org</url>

	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.3.1.RELEASE</version>
		<relativePath /> <!-- lookup parent from repository -->
	</parent>

	<properties>
		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
		<project.report.sourceEncoding>UTF-8</project.report.sourceEncoding>
		<project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
	    <maven.compiler.source>1.8</maven.compiler.source>
	    <maven.compilet.target>1.8</maven.compilet.target>
		<maven.compiler.encoding>UTF-8</maven.compiler.encoding>
		<java.version>1.8</java.version>
		<maven-jar-plugin.version>3.1.1</maven-jar-plugin.version>
	</properties>

	<dependencies>
		<!--lombok -->
		<dependency>
			<groupId>org.projectlombok</groupId>
			<artifactId>lombok</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<!-- <scope>test</scope> -->
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-thymeleaf</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-devtools</artifactId>
			<optional>true</optional>
			<!-- optional=true,依赖不会传递，该项目依赖devtools；之后依赖myboot项目的项目如果想要使用devtools，需要重新引入 -->
			<scope>true</scope>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-aop</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-tomcat</artifactId>
			<scope>provided</scope>
		</dependency>

		<!-- spring-boot-starter-data-jpa -->
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-data-jpa</artifactId>
		</dependency>
		<!-- spring-boot-starter-jdbc -->
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-jdbc</artifactId>
		</dependency>
		<!-- mysql-connector-java -->
		<dependency>
			<groupId>mysql</groupId>
			<artifactId>mysql-connector-java</artifactId>
		</dependency>

		<!-- httpclient -->
		<dependency>
			<groupId>org.apache.httpcomponents</groupId>
			<artifactId>httpclient</artifactId>
			<version>4.5.5</version>
		</dependency>
		<!-- 文件上传解析器 -->
		<dependency>
			<groupId>commons-io</groupId>
			<artifactId>commons-io</artifactId>
			<version>1.4</version>
		</dependency>
		<dependency>
			<groupId>commons-fileupload</groupId>
			<artifactId>commons-fileupload</artifactId>
			<version>1.3.3</version>
		</dependency>
		<!-- https://mvnrepository.com/artifact/org.quartz-scheduler/quartz-jobs -->
		<dependency>
		    <groupId>org.quartz-scheduler</groupId>
		    <artifactId>quartz-jobs</artifactId>
		    <version>2.3.2</version>
		</dependency>
		<!-- https://mvnrepository.com/artifact/org.quartz-scheduler/quartz -->
		<dependency>
		    <groupId>org.quartz-scheduler</groupId>
		    <artifactId>quartz</artifactId>
		    <version>2.3.2</version>
		</dependency>

		<!-- https://mvnrepository.com/artifact/org.apache.commons/commons-lang3 -->
		<dependency>
			<groupId>org.apache.commons</groupId>
			<artifactId>commons-lang3</artifactId>
			<version>3.8</version>
		</dependency>
		<!-- https://mvnrepository.com/artifact/com.alibaba/fastjson -->
		<dependency>
			<groupId>com.alibaba</groupId>
			<artifactId>fastjson</artifactId>
			<version>1.2.58</version>
		</dependency>



		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-configuration-processor</artifactId>
			<optional>true</optional>
		</dependency>
	</dependencies>

	<build>
		<finalName>springbootmultidatasources</finalName>
		<resources>
			<resource>
				<directory>src/main/resources</directory>
				<filtering>true</filtering>
				<excludes>
					<exclude>application*.properties</exclude>
					<exclude>**/*.woff</exclude>
					<exclude>**/*.woff2</exclude>
					<exclude>**/*.ttf</exclude>
					<exclude>**/*.ico</exclude>
					<exclude>**/*.eot</exclude>
					<exclude>**/*.svg</exclude>
					<exclude>**/*.otf</exclude>
				</excludes>
			</resource>
			<resource>
				<directory>src/main/resources</directory>
				<filtering>true</filtering>
				<includes>
					<include>application.properties</include>
					<include>application-${package.environment}.properties</include>
				</includes>
			</resource>
			<resource>
				<directory>src/main/resources</directory>
				<filtering>false</filtering>
				<includes>
					<include>**/*.woff</include>
					<include>**/*.woff2</include>
					<include>**/*.ttf</include>
					<include>**/*.ico</include>
					<include>**/*.eot</include>
					<include>**/*.svg</include>
					<include>**/*.otf</include>
				</includes>
			</resource>
		</resources>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
				<configuration>
					<fork>true</fork>
					<!--fork : 如果没有该项配置，肯呢个devtools不会起作用，即应用不会restart -->
				</configuration>
			</plugin>
			<plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <configuration>
                    <source>1.8</source>
                    <target>1.8</target>
                    <encoding>UTF-8</encoding>
                </configuration>
            </plugin>
			<plugin>
				<groupId>org.apache.maven.plugins</groupId>
				<artifactId>maven-surefire-plugin</artifactId>
				<configuration>
					<argLine>-Dfile.encoding=UTF-8</argLine>
					<skip>true</skip>
				</configuration>
			</plugin>
		</plugins>
	</build>
</project>

三、创建数据库和数据

CREATE DATABASE test01 DEFAULT CHARSET=utf8mb4 COLLATE utf8mb4_unicode_ci;
CREATE DATABASE test02 DEFAULT CHARSET=utf8mb4 COLLATE utf8mb4_unicode_ci;

在不同数据库下建不同的表

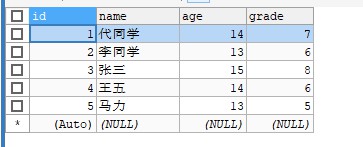

test01库下建student表

CREATE TABLE `student` (
  `id` int NOT NULL AUTO_INCREMENT COMMENT "ID",
  `name` varchar(255) COLLATE utf8mb4_unicode_ci NOT NULL COMMENT "姓名",
  `age` int NOT NULL COMMENT "年龄",
  `grade` int NOT NULL COMMENT "年级",
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=6 DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_unicode_ci

test02库下建teacher表

CREATE TABLE `teacher` (
  `id` int NOT NULL AUTO_INCREMENT COMMENT "ID",
  `name` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_unicode_ci NOT NULL COMMENT "姓名",
  `age` int NOT NULL COMMENT "年龄",
  `course` varchar(255) COLLATE utf8mb4_unicode_ci NOT NULL COMMENT "课程",
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=4 DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_unicode_ci

四、编写多数据源的配置文件

多数据源 DataSourceConfig.java 文件编写

package com.imddysc.springbootmultidatasources.config;

import javax.sql.DataSource;

import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.boot.autoconfigure.jdbc.DataSourceProperties;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.boot.jdbc.DataSourceBuilder;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Primary;

@Configuration
public class DataSourceConfig2 {

	@Primary
	@Bean(name="primaryDataSource")
	@Qualifier("primaryDataSource")
	@ConfigurationProperties(prefix="spring.datasource.primary")
	public DataSource primaryDataSource() {
		return DataSourceBuilder.create().build();
	}

	@Bean(name="secondDataSource")
	@Qualifier("secondDataSource")
	@ConfigurationProperties(prefix="spring.datasource.second")
	public DataSource secondDataSource() {
		return DataSourceBuilder.create().build();
	}


}

多数据源第1个标识数据的jpa配置文件编写（PrimaryJpaConfig.java）

package com.imddysc.springbootmultidatasources.config;

import javax.persistence.EntityManager;
import javax.sql.DataSource;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.boot.autoconfigure.orm.jpa.JpaProperties;
import org.springframework.boot.orm.jpa.EntityManagerFactoryBuilder;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Primary;
import org.springframework.data.jpa.repository.config.EnableJpaRepositories;
import org.springframework.orm.jpa.JpaTransactionManager;
import org.springframework.orm.jpa.LocalContainerEntityManagerFactoryBean;
import org.springframework.transaction.PlatformTransactionManager;
import org.springframework.transaction.annotation.EnableTransactionManagement;

@Configuration
@EnableTransactionManagement
@EnableJpaRepositories(
		entityManagerFactoryRef = "entityManagerFactoryPrimary",
		transactionManagerRef = "transactionManagerPrimary",
		basePackages = {
		"com.imddysc.springbootmultidatasources.repository" }) //设置dao（repo）所在位置
public class PrimaryJpaConfig {

	@Autowired
	@Qualifier("primaryDataSource")
	private DataSource primaryDataSource;

	@Autowired
	private JpaProperties jpaProperties;

	@Primary
	@Bean(name = "entityManagerFactoryPrimary")
	public LocalContainerEntityManagerFactoryBean entityManagerFactoryPrimary(EntityManagerFactoryBuilder builder) {
		return builder
				.dataSource(primaryDataSource)
				.properties(jpaProperties.getProperties())
				.packages("com.imddysc.springbootmultidatasources.entity") // 设置实体类所在位置
				.persistenceUnit("primaryPersistenceUnit")
				.build();
	}

	@Primary
	@Bean(name = "entityManagerPrimary")
	public EntityManager entityManager(EntityManagerFactoryBuilder builder) {
		return entityManagerFactoryPrimary(builder).getObject().createEntityManager();
	}

	@Primary
	@Bean(name = "transactionManagerPrimary")
	PlatformTransactionManager transactionManagerPrimary(EntityManagerFactoryBuilder builder) {
		return new JpaTransactionManager(entityManagerFactoryPrimary(builder).getObject());
	}

}

多数据源第2个标识数据的jpa配置文件编写（SecondJpaConfig.java）

package com.imddysc.springbootmultidatasources.config;

import javax.persistence.EntityManager;
import javax.sql.DataSource;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.boot.autoconfigure.orm.jpa.JpaProperties;
import org.springframework.boot.orm.jpa.EntityManagerFactoryBuilder;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.data.jpa.repository.config.EnableJpaRepositories;
import org.springframework.orm.jpa.JpaTransactionManager;
import org.springframework.orm.jpa.LocalContainerEntityManagerFactoryBean;
import org.springframework.transaction.PlatformTransactionManager;
import org.springframework.transaction.annotation.EnableTransactionManagement;

@Configuration
@EnableTransactionManagement
@EnableJpaRepositories(
		entityManagerFactoryRef = "entityManagerFactorySecond",
		transactionManagerRef = "transactionManagerSecond",
		basePackages = {
		"com.imddysc.springbootmultidatasources.secondrepository" }) //设置dao（repo）所在位置
public class SecondJpaConfig {

	@Autowired
	@Qualifier("secondDataSource")
	private DataSource secondDataSource;

	@Autowired
	private JpaProperties jpaProperties;

	@Bean(name = "entityManagerFactorySecond")
	public LocalContainerEntityManagerFactoryBean entityManagerFactoryPrimary(EntityManagerFactoryBuilder builder) {
		return builder
				.dataSource(secondDataSource)
				.properties(jpaProperties.getProperties())
				.packages("com.imddysc.springbootmultidatasources.secondentity") // 设置实体类所在位置
				.persistenceUnit("secondPersistenceUnit")
				.build();
	}

	@Bean(name = "entityManagerSecond")
	public EntityManager entityManager(EntityManagerFactoryBuilder builder) {
		return entityManagerFactoryPrimary(builder).getObject().createEntityManager();
	}

	@Bean(name = "transactionManagerSecond")
	PlatformTransactionManager transactionManagerPrimary(EntityManagerFactoryBuilder builder) {
		return new JpaTransactionManager(entityManagerFactoryPrimary(builder).getObject());
	}

}

多数据源是第一个，后2个事多Jpa绑定不同数据源的配置。需要注意的是第一个jpa有@primary注解

还有就是多JPA配置中有不同JPA指定相应的entity的实体包和对应repository包的位置。

五、编写对应的entity和repository

entity (Student.java)

package com.imddysc.springbootmultidatasources.entity;

import javax.persistence.Entity;
import javax.persistence.GeneratedValue;
import javax.persistence.GenerationType;
import javax.persistence.Id;
import javax.persistence.Table;

import lombok.Data;

@Data
@Entity
@Table(name="student")
public class Student {

	@Id
	@GeneratedValue(strategy=GenerationType.IDENTITY)
	private Integer id;
	private String name;
	private Integer age;
	private Integer grade;

}

repository(StudentRepository.java)

package com.imddysc.springbootmultidatasources.repository;

import org.springframework.data.jpa.repository.JpaRepository;

import com.imddysc.springbootmultidatasources.entity.Student;

public interface StudentRepository extends JpaRepository<Student, Integer> {

}

entity (thacher.java)

package com.imddysc.springbootmultidatasources.secondentity;

import javax.persistence.Entity;
import javax.persistence.GeneratedValue;
import javax.persistence.GenerationType;
import javax.persistence.Id;
import javax.persistence.Table;

import lombok.Data;

@Data
@Entity
@Table(name="teacher")
public class Teacher {

	@Id
	@GeneratedValue(strategy=GenerationType.IDENTITY)
	private Integer id;
	private String name;
	private Integer age;
	private String course;

}

repository(TeacherRepository.java)

package com.imddysc.springbootmultidatasources.secondrepository;

import org.springframework.data.jpa.repository.JpaRepository;

import com.imddysc.springbootmultidatasources.secondentity.Teacher;

public interface TeacherRepository extends JpaRepository<Teacher, Integer>{

}

六、编写测试Controller

package com.imddysc.springbootmultidatasources.controller;

import java.util.List;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.ResponseBody;

import com.imddysc.springbootmultidatasources.entity.Student;
import com.imddysc.springbootmultidatasources.repository.StudentRepository;

@Controller
@RequestMapping("/t1")
public class T1Controller {

	@Autowired
	private StudentRepository studentRepository;

	@ResponseBody
	@RequestMapping("/getAll")
	public List<Student> getAll() {
		return studentRepository.findAll();
	}
}

package com.imddysc.springbootmultidatasources.controller;

import java.util.List;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.ResponseBody;

import com.imddysc.springbootmultidatasources.secondentity.Teacher;
import com.imddysc.springbootmultidatasources.secondrepository.TeacherRepository;

@Controller
@RequestMapping("/t2")
public class T2Controller {

	@Autowired
	private TeacherRepository teacherRepository;

	@ResponseBody
	@RequestMapping("/getAll")
	public List<Teacher> getAll() {
		return teacherRepository.findAll();
	}

}

结果：

http://127.0.0.1:8080/t1/getAll

[{"id":1,"name":"代同学","age":14,"grade":7},{"id":2,"name":"李同学","age":13,"grade":6},{"id":3,"name":"张三","age":15,"grade":8},{"id":4,"name":"王五","age":14,"grade":6},{"id":5,"name":"马力","age":13,"grade":5}]

http://127.0.0.1:8080/t2/getAll

[{"id":1,"name":"陈老师","age":33,"course":"数学"},{"id":2,"name":"蒋老师","age":32,"course":"英语"},{"id":3,"name":"黄飞","age":40,"course":"计算机"}]

对应源码地址： https://gitee.com/lenglingx/springbootjpamultidatasources

hmoban主题是根据ripro二开的主题，极致后台体验，无插件，集成会员系统
自学咖网 » springboot jpa 多数据源的案例

wen 普通

分享到：
