SpringBoot整合Spring Security和OAuth2

OAuth2介绍

OAuth协议为用户资源的授权提供了一个安全的、开放而又简易的标准。OAuth不需要用户提供用户名、密码等信息，就可以实现多个系统之间的资源共享。

OAuth2的四中授权模式

• 授权码模式
• 简易模式
• 密码模式
• 客户端模式

测试环境

• openjdk11
• springboot 2.3.1
• spring security
• spring cloud oauth2

项目地址

https://gitee.com/randomObject/springboot_security_oauth

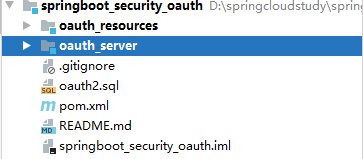

测试项目结构

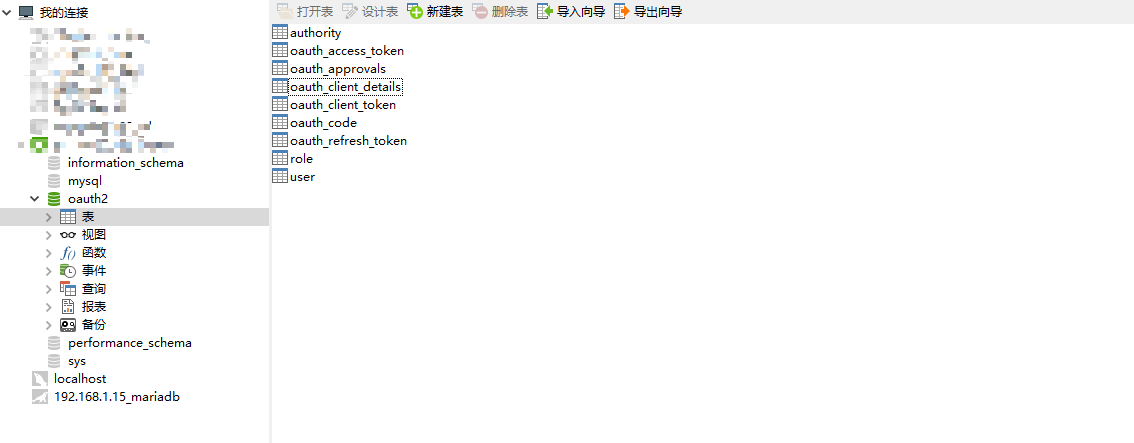

因为spring OAuth2封装好了常用的认证授权操作，所有需要使用OAuth2提供的表结构。项目中有提供。

父工程pom文件

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.gitee.randomobject</groupId>
    <artifactId>springboot_security_oauth</artifactId>
    <packaging>pom</packaging>
    <version>1.0-SNAPSHOT</version>
    <modules>
        <module>oauth_resources</module>
        <module>oauth_server</module>
    </modules>

    <!--spring boot项目-->
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.3.1.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>

    <!--依赖版本管理-->
    <properties>
        <java.version>11</java.version>
        <spring-cloud.version>Greenwich.RELEASE</spring-cloud.version>
    </properties>

    <!--依赖管理-->
    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>${spring-cloud.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>

    <!--lombok插件-->
    <dependencies>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>javax.xml.bind</groupId>
            <artifactId>jaxb-api</artifactId>
            <version>2.3.0</version>
        </dependency>
        <dependency>
            <groupId>com.sun.xml.bind</groupId>
            <artifactId>jaxb-impl</artifactId>
            <version>2.3.0</version>
        </dependency>
        <dependency>
            <groupId>com.sun.xml.bind</groupId>
            <artifactId>jaxb-core</artifactId>
            <version>2.3.0</version>
        </dependency>
        <dependency>
            <groupId>javax.activation</groupId>
            <artifactId>activation</artifactId>
            <version>1.1.1</version>
        </dependency>
    </dependencies>

    <!--spring官方仓库，速度更好-->
    <repositories>
        <repository>
            <id>spring-snapshots</id>
            <name>Spring Snapshots</name>
            <url>https://repo.spring.io/snapshot</url>
            <snapshots>
                <enabled>true</enabled>
            </snapshots>
        </repository>
        <repository>
            <id>spring-milestones</id>
            <name>Spring Milestones</name>
            <url>https://repo.spring.io/milestone</url>
            <snapshots>
                <enabled>false</enabled>
            </snapshots>
        </repository>
    </repositories>

</project>

父工程充当springcloud版本控制，和repository仓库管理，以及其他一些公用的配置和依赖。

• oauth_server项目介绍

该项目作为服务认证和授权端。该端充当用户的认证及授权和资源注册管理角色。
oauth_server项目的pom.xml内容

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>springboot_security_oauth</artifactId>
        <groupId>com.gitee.randomobject</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>oauth_server</artifactId>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-security</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-oauth2</artifactId>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>2.1.3</version>
        </dependency>
    </dependencies>
</project>

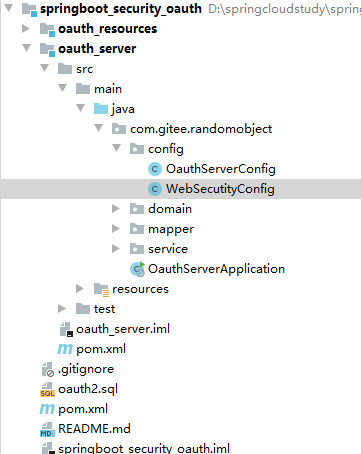

oauth_server的关键配置

oauth_server的核心配置在项目的config包下

• WebSecutityConfig类

package com.gitee.randomobject.config;

import com.gitee.randomobject.service.UserService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.authentication.AuthenticationManager;
import org.springframework.security.config.annotation.authentication.builders.AuthenticationManagerBuilder;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder;

@Configuration
@EnableWebSecurity
public class WebSecutityConfig extends WebSecurityConfigurerAdapter {

    @Autowired
    private UserService userService;//认证业务对象，当前待验证的用户是否有访问该资源的权限

    @Bean
    public BCryptPasswordEncoder passwordEncoder(){
        return new BCryptPasswordEncoder();
    }

    @Override
    protected void configure(AuthenticationManagerBuilder auth) throws Exception {
        auth.userDetailsService(userService).passwordEncoder(passwordEncoder());
    }

    @Override
    protected void configure(HttpSecurity http) throws Exception {
        http.authorizeRequests()
                .anyRequest().authenticated()
                .and()
                .formLogin()
                .loginProcessingUrl("/login")//跳转页面授权
                .permitAll()
                .and()
                .csrf()
                .disable();
    }

    /** AuthenticationManager对象在Oauth2{@link OauthServerConfig}
     * 认证服务中要使用，提前放入IOC容器中以供使用
     */
    @Override
    @Bean
    public AuthenticationManager authenticationManagerBean() throws Exception {
        return super.authenticationManager();
    }
}

• OauthServerConfig类

package com.gitee.randomobject.config;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.authentication.AuthenticationManager;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.oauth2.config.annotation.configurers.ClientDetailsServiceConfigurer;
import org.springframework.security.oauth2.config.annotation.web.configuration.AuthorizationServerConfigurerAdapter;
import org.springframework.security.oauth2.config.annotation.web.configuration.EnableAuthorizationServer;
import org.springframework.security.oauth2.config.annotation.web.configurers.AuthorizationServerEndpointsConfigurer;
import org.springframework.security.oauth2.config.annotation.web.configurers.AuthorizationServerSecurityConfigurer;
import org.springframework.security.oauth2.provider.approval.ApprovalStore;
import org.springframework.security.oauth2.provider.approval.JdbcApprovalStore;
import org.springframework.security.oauth2.provider.client.JdbcClientDetailsService;
import org.springframework.security.oauth2.provider.code.AuthorizationCodeServices;
import org.springframework.security.oauth2.provider.code.JdbcAuthorizationCodeServices;
import org.springframework.security.oauth2.provider.token.TokenStore;
import org.springframework.security.oauth2.provider.token.store.JdbcTokenStore;

import javax.sql.DataSource;
import javax.swing.*;
import javax.xml.crypto.Data;

@Configuration
@EnableAuthorizationServer
public class OauthServerConfig extends AuthorizationServerConfigurerAdapter {

    //数据库连接池对象
    @Autowired
    private DataSource dataSource;

    //认证业务对象
    @Autowired
    private UserDetailsService userDetailsService;

    //授权模式专用对象
    @Autowired
    private AuthenticationManager authenticationManager;

    //客户端信息来源
    @Bean
    public JdbcClientDetailsService clientDetailsService() {
        return new JdbcClientDetailsService(dataSource);
    }

    //token保存策略
    @Bean
    public TokenStore tokenStore() {
        return new JdbcTokenStore(dataSource);
    }

    //授权信息保存策略
    @Bean
    public ApprovalStore approvalStore() {
        return new JdbcApprovalStore(dataSource);
    }

    //授权码模式数据来源
    @Bean
    public AuthorizationCodeServices authorizationCodeServices() {
        return new JdbcAuthorizationCodeServices(dataSource);
    }


    @Override
    public void configure(AuthorizationServerSecurityConfigurer security) throws Exception {
        security.allowFormAuthenticationForClients();
        security.checkTokenAccess("isAuthenticated()");
    }

    //客户端信息的数据库来源
    @Override
    public void configure(ClientDetailsServiceConfigurer clients) throws Exception {
        clients.withClientDetails(clientDetailsService());
    }

    //Oauth的主配置信息--整合以上部分配置
    @Override
    public void configure(AuthorizationServerEndpointsConfigurer endpoints) throws Exception {
        endpoints

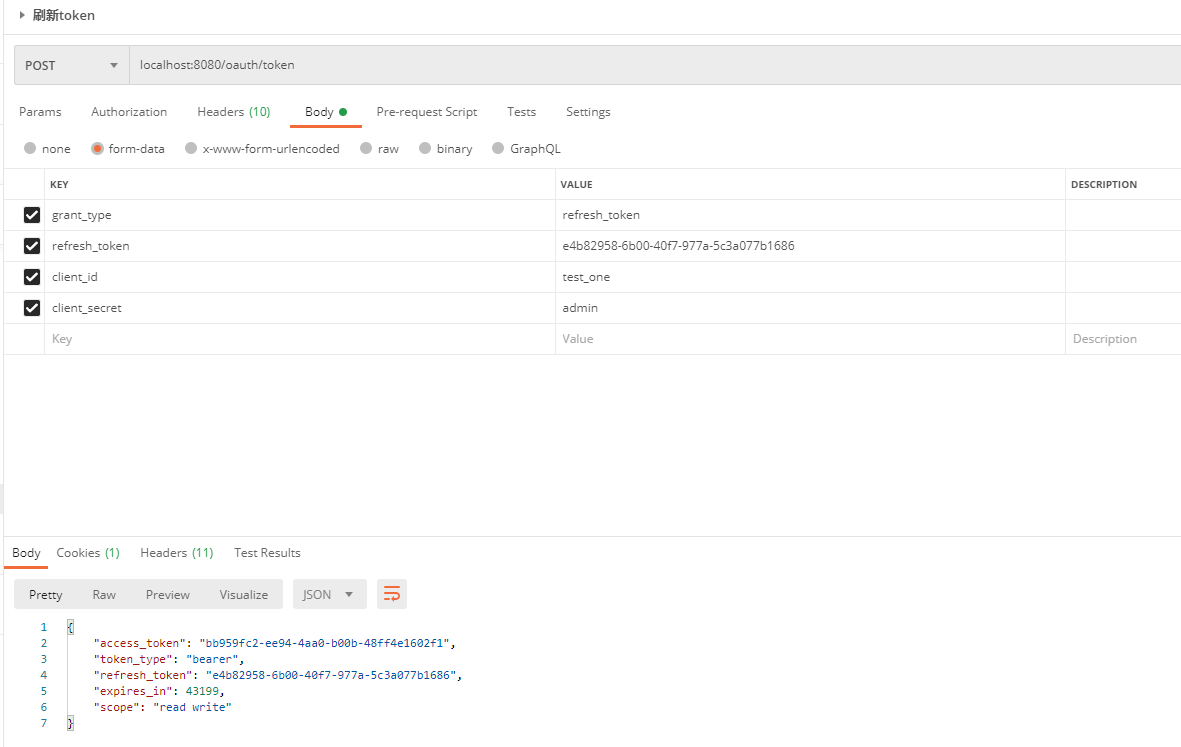

                .userDetailsService(userDetailsService)//添加刷新token,refresh_token功能
                .approvalStore(approvalStore())
                .authenticationManager(authenticationManager)
                .authorizationCodeServices(authorizationCodeServices())
                .tokenStore(tokenStore());
    }
}

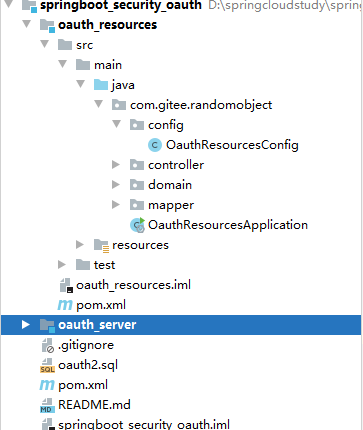

oauth_resources项目结构

oauth_resources作为资源端提供资源服务，该项目pom.xml内容如下

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>springboot_security_oauth</artifactId>
        <groupId>com.gitee.randomobject</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>oauth_resources</artifactId>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-security</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-oauth2</artifactId>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>2.1.3</version>
        </dependency>
    </dependencies>

</project>

• OauthResourcesConfig配置类

package com.gitee.randomobject.config;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.http.HttpMethod;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.oauth2.config.annotation.web.configuration.EnableResourceServer;
import org.springframework.security.oauth2.config.annotation.web.configuration.ResourceServerConfigurerAdapter;
import org.springframework.security.oauth2.config.annotation.web.configurers.ResourceServerSecurityConfigurer;
import org.springframework.security.oauth2.provider.token.TokenStore;
import org.springframework.security.oauth2.provider.token.store.JdbcTokenStore;

import javax.sql.DataSource;

@Configuration
@EnableResourceServer
public class OauthResourcesConfig extends ResourceServerConfigurerAdapter {

    @Autowired
    private DataSource dataSource;

    /**
     * 指定token的持久化策略
     * @return JdbcTokenStore
     */
    @Bean
    public TokenStore jdbcTokenStore() {
        return new JdbcTokenStore(dataSource);
    }

    /**
     * 指定当前资源的ID和存储方案
     * @param resources
     * @throws Exception
     */
    @Override
    public void configure(ResourceServerSecurityConfigurer resources) throws Exception {
        //可以通过配置文件读取的方式加载resourceId，此处为方便，直接写死了
        resources.resourceId("product_api").tokenStore(jdbcTokenStore());
    }

    @Override
    public void configure(HttpSecurity http) throws Exception {
        /**
         * 固定配置，无需记住，了解即可。
         */
        http.authorizeRequests()
                //配置不同访问请求需要的权限
                .antMatchers(HttpMethod.GET, "/**").access("#oauth2.hasAnyScope("read")")
                .antMatchers(HttpMethod.POST, "/**").access("#oauth2.hasAnyScope("write")")
                .antMatchers(HttpMethod.PATCH, "/**").access("#oauth2.hasAnyScope("write")")
                .antMatchers(HttpMethod.PUT, "/**").access("#oauth2.hasAnyScope("write")")
                .antMatchers(HttpMethod.DELETE, "/**").access("#oauth2.hasAnyScope("write")")
                .and()
                .headers().addHeaderWriter((request, response) -> {//处理跨域请求
                    response.addHeader("Access-Control-Allow-Origin", "*");//允许跨域
                    if (request.getMethod().equals("OPTIONS")){//如果是跨域的预检请求，则原封不动向下传递请求投信息
                        response.setHeader("Access-Control-Allow-Methods",request.getHeader("Access-Control-Allow-Method"));
                        response.setHeader("Access-Control-Allow-Headers",request.getHeader("Access-Control-Allow-Headers"));
                    }
        });
    }
}

测试流程

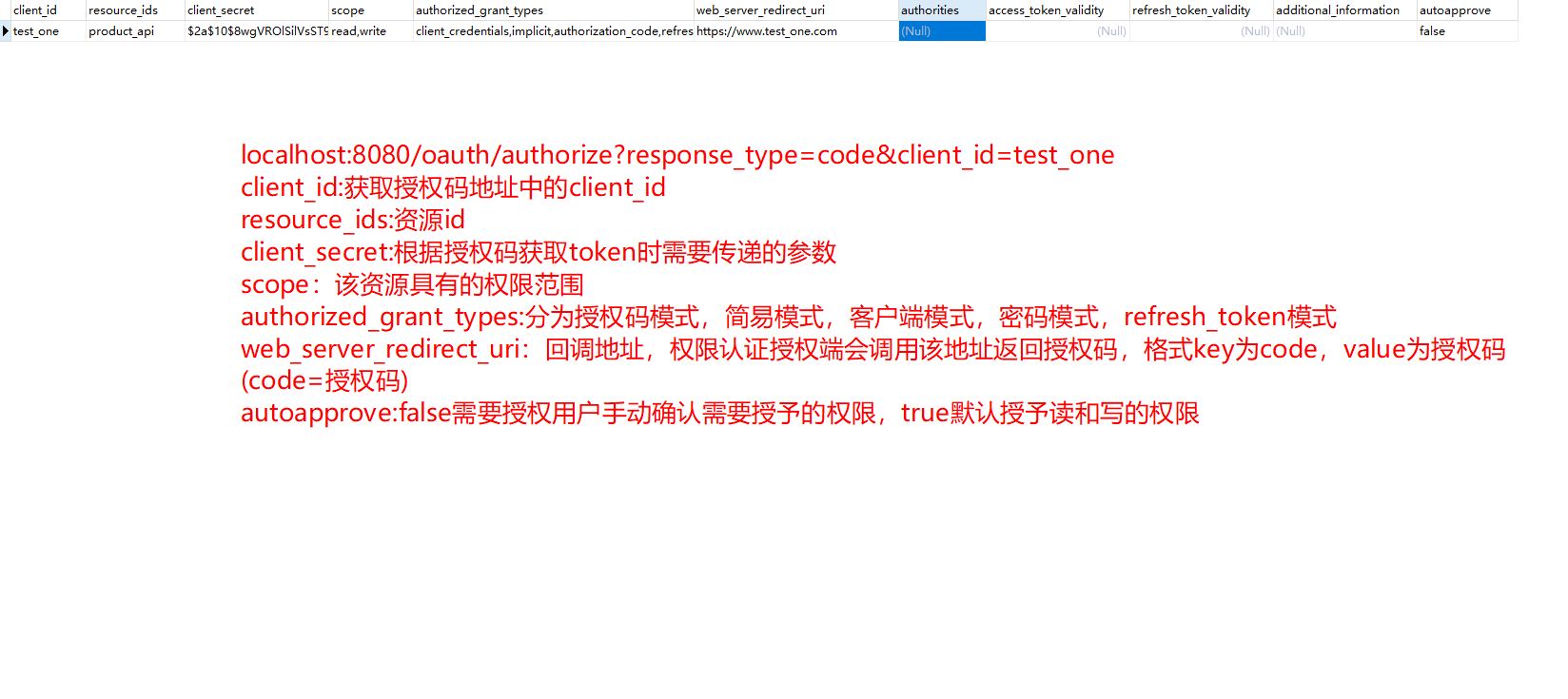

• 数据库表的数据准备

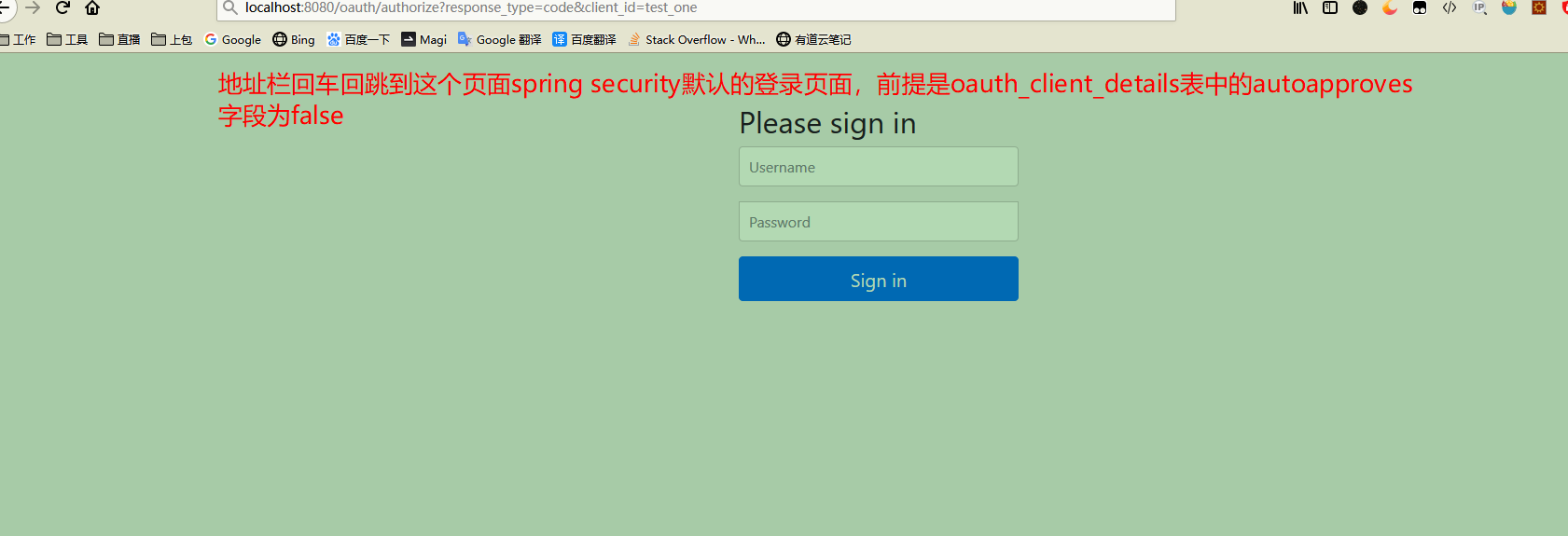

• 登录页面获取授权码
  http://localhost:8080/oauth/authorize?response_type=code&client_id=test_one

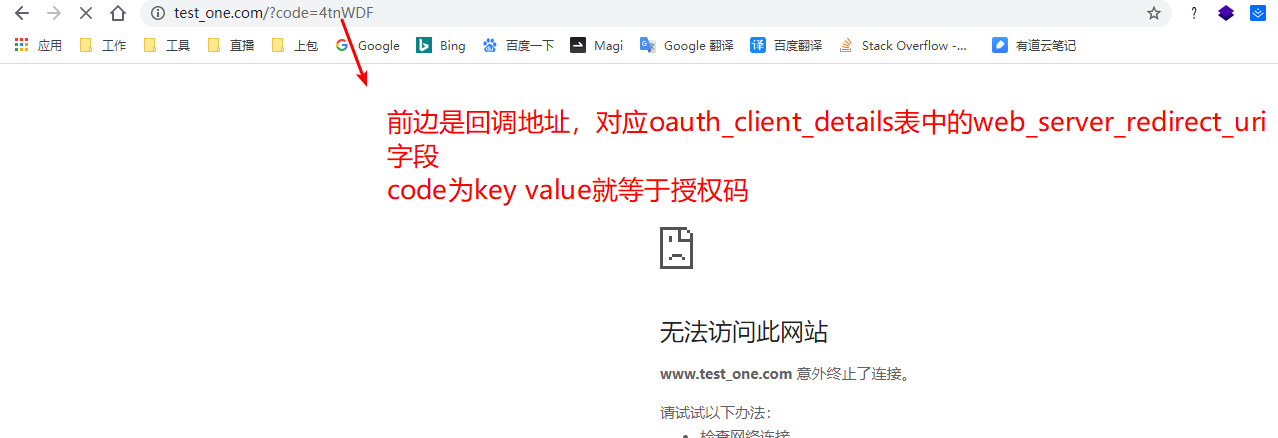

  调用回调地址，返回授权码

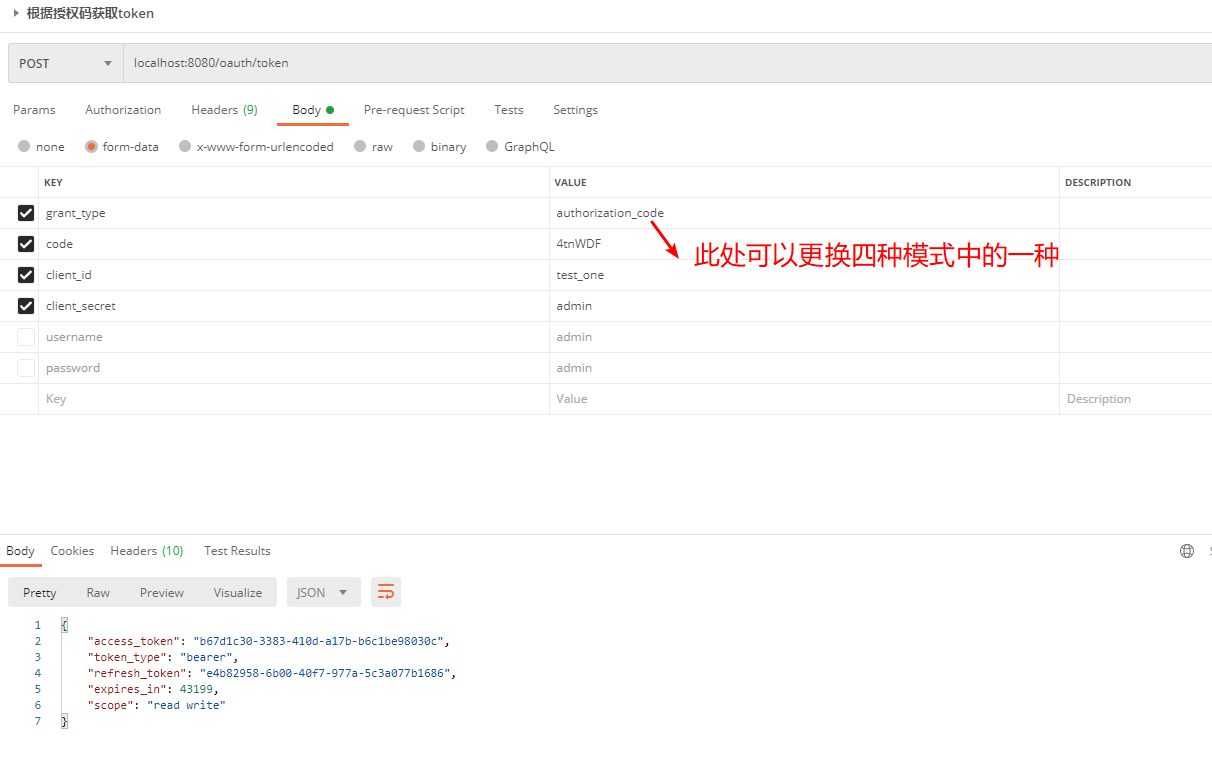

  根据授权码获取token

  根据获得的token获取资源

  刷新token
