Spring Cloud 使用 Resilience4j 实现服务熔断

CircuitBreaker 断路器

服务熔断是为了保护我们的服务，比如当某个服务出现问题的时候，控制打向它的流量，让它有时间去恢复，或者限制一段时间只能有固定数量的请求打向这个服务。这些都是保护措施。我在实际工作中也确实遇到过，数据库出现问题了，进而导致Web服务出现问题了，导致不依赖数据库的服务也出现问题了，出现一连串问题。这次学习《玩转 Spring 全家桶》，丁雪丰老师给了使用resilience4j的例子。丁老师的例子是2019年的，这个框架已经修改了些方法，所以我自己也花了些时间来理解了它的用法。现将过程记录下来。
首先POM文件引入

<dependency>
    <groupId>io.github.resilience4j</groupId>
    <artifactId>resilience4j-spring-boot2</artifactId>
    <version>2.0.2</version>
</dependency>

接着改造之前的Controller方法

@RestController
@RequestMapping("/customer")
@Slf4j
public class BookController {

    @Autowired
    private BookService bookService;

    private CircuitBreaker circuitBreaker;

    public BookController(CircuitBreakerRegistry registry) {
        circuitBreaker = registry.circuitBreaker("menu");
    }

    @GetMapping("/menu")
    public List<Book> readMenu() {
        Supplier<List<Book>> supplier = () -> bookService.getAll();
        circuitBreaker.getEventPublisher()
                .onEvent(event -> log.info(event.toString()));
        try{
            return circuitBreaker.executeSupplier(supplier);
        }
        catch (Exception ex)
        {
            log.error(ex.getMessage());
            return Collections.emptyList();
        }
    }
}

不同的地方就是引入了CircuitBreaker，然后使用它将我们的方法“bookService.getAll()”包起来了。
然后在配置文件中添加如下的配置

resilience4j.circuitbreaker.backends.menu.failure-rate-threshold=50
resilience4j.circuitbreaker.backends.menu.wait-duration-in-open-state=60000
resilience4j.circuitbreaker.backends.menu.sliding-window-size=5
resilience4j.circuitbreaker.backends.menu.permitted-number-of-calls-in-half-open-state=2
resilience4j.circuitbreaker.backends.menu.minimum-number-of-calls=2

稍微解释一下这里的配置
failure-rate-threshold=50是说失败率超过50%就熔断，
wait-duration-in-open-state= 60000，是说熔断后等待60S才允许再次调用。
sliding-window-size =5 可以理解为5个请求统计一次，
permitted-number-of-calls-in-half-open-state = 2是说进入半开的状态的时候，还允许请求多少个。
minimum-number-of-calls=2是说最少有多少个请求才开始统计。这里的参数都是我为了实验设置的，实际情况根据需要进行调整。参数比较多，具体可以参加官方文档
https://resilience4j.readme.io/docs/circuitbreaker

我们来看下实际的效果通过浏览器访问，
首先我们现打开BookService，让它有一次成功的请求，日志会输出
CircuitBreaker “menu” recorded a successful call.
然后我们将BookService关闭，让它请求失败，日志会输出如下
CircuitBreaker “menu” recorded an error: “feign.RetryableException: Connection refused: no further information executing GET http://bookshop-service/book/getAll”. Elapsed time: 2050 ms
CircuitBreaker “menu” exceeded failure rate threshold. Current failure rate: 50.0
CircuitBreaker “menu” changed state from CLOSED to OPEN
可以看到断路器已经打开了，
接着我们继续访问会出现，
CircuitBreaker “menu” recorded a call which was not permitted.
这个时候请求不会打到BookService上面了。就算这个时候我们的BookService恢复正常。
等待60s后进入半Open的状态
CircuitBreaker “menu” changed state from OPEN to HALF_OPEN
这个时候恢复BookService正常，我们请求也会正常响应了
CircuitBreaker “menu” recorded a successful call
多请求几次，断路器就从HALF_OPEN变成了CLOSED
CircuitBreaker “menu” changed state from HALF_OPEN to CLOSED

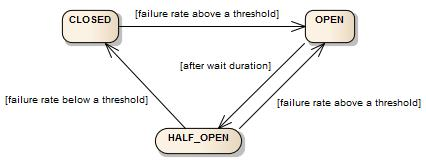

这里给一个官方的状态图来说明

断路器有三个状态： CLOSED， OPEN， HALF_OPEN。

CLOSED是最开始的状态，也就是关闭状态，流量可以正常通过，
当失败比率超过threshold后，断路器打开，变成OPEN 打开后流量不可以通过；
等待一定的时间后，断路器进入半开状态 HALF_OPEN, 这个时候如果失败率低于阈值，断路器进入CLOSED状态，如果超过阈值，断路器继续保证OPEN，再等待，如此往复。

断路器现在还支持设置慢请求，使用起来还是比较方便。对于参数的设置如果不是很理解，可以通过单元测试的方法来加深对它的理解。这里参考https://github.com/eugenp/tutorials/blob/master/libraries-6/src/test/java/com/baeldung/resilence4j/Resilience4jUnitTest.java 上面的例子，给出来个单元测试

    interface RemoteService {

        int process(int i);
    }

    private RemoteService service;


    @Test
    public void whenCircuitBreakerIsUsed_thenItWorksAsExpected() {
        service = mock(RemoteService.class);
        CircuitBreakerConfig config = CircuitBreakerConfig.custom()
                // Percentage of failures to start short-circuit
                .failureRateThreshold(20)
                .minimumNumberOfCalls(5)
                .build();
        CircuitBreakerRegistry registry = CircuitBreakerRegistry.of(config);
        CircuitBreaker circuitBreaker = registry.circuitBreaker("my");
        Function<Integer, Integer> decorated = CircuitBreaker.decorateFunction(circuitBreaker, service::process);

        when(service.process(anyInt())).thenThrow(new RuntimeException());
        circuitBreaker.getEventPublisher()
                .onEvent(event ->
                {
                    log.info(event.toString());
                });

        for (int i = 0; i < 10; i++) {
            try {
                decorated.apply(i);
            } catch (Exception ignore) {
            }
        }

        verify(service, times(5)).process(any(Integer.class));
    }

这里设置最少请求5次，失败率超过20%就熔断，然后我们请求了10次，实际上只调用了Service5次。
对于其它参数，你可以调整后，根据需要来验证是否符合预期。它的日志输出如下

CircuitBreaker "my" recorded an error: "java.lang.RuntimeException". Elapsed time: 2 ms
CircuitBreaker "my" recorded an error: "java.lang.RuntimeException". Elapsed time: 0 ms
CircuitBreaker "my" recorded an error: "java.lang.RuntimeException". Elapsed time: 0 ms
CircuitBreaker "my" recorded an error: "java.lang.RuntimeException". Elapsed time: 0 ms
CircuitBreaker "my" recorded an error: "java.lang.RuntimeException". Elapsed time: 0 ms
CircuitBreaker "my" exceeded failure rate threshold. Current failure rate: 100.0
CircuitBreaker "my" changed state from CLOSED to OPEN
CircuitBreaker "my" recorded a call which was not permitted.
CircuitBreaker "my" recorded a call which was not permitted.
CircuitBreaker "my" recorded a call which was not permitted.
CircuitBreaker "my" recorded a call which was not permitted.
CircuitBreaker "my" recorded a call which was not permitted.

可以看到5次过后，就开始打开断路器，后面的call就不被允许了。

隔舱Bulkhead

Resilience4j 里面的Bulkhead可以简单的理解为允许多少个并发访问。我们这里还是通过单元测试的方法来演示它的功能

    @Test
    public void whenBulkheadIsUsed_thenItWorksAsExpected() throws InterruptedException {
        service = mock(RemoteService.class);
        BulkheadConfig config = BulkheadConfig.custom().maxConcurrentCalls(2).build();
        BulkheadRegistry registry = BulkheadRegistry.of(config);
        Bulkhead bulkhead = registry.bulkhead("my");
        Function<Integer, Integer> decorated = Bulkhead.decorateFunction(bulkhead, service::process);

       try {
            callAndBlock(decorated);
        }
       catch(BulkheadFullException ex)
        {
            log.error("isfull");
        }
        finally
        {
           verify(service, times(2)).process(any(Integer.class));
        }

    }

    private void callAndBlock(Function<Integer, Integer> decoratedService) throws InterruptedException {
        when(service.process(anyInt())).thenAnswer(invocation -> {
            log.info("service called");
            return null;
        });

        ArrayList<Integer> numberList = new ArrayList<Integer>();
        for(int i = 0;i<10;i++)
        {
            numberList.add(i);
        }

        numberList.parallelStream().forEach((i)->{
            try {
                decoratedService.apply(i);
            }
            catch (Exception ex)
            {
                log.error("meet error " + ex.getMessage());
            } catch (Throwable e) {
                throw new RuntimeException(e);
            }
        });
    }

首先我们解读一下callAndBlock，它会并发的去执行一个function. 如果我们不用隔舱，它的输出会是这样。

2022-12-28T15:22:52.010+08:00  INFO 37276 --- [onPool-worker-4] c.k.r.bookcustomer.Resilience4jUnitTest  : service called
2022-12-28T15:22:52.010+08:00  INFO 37276 --- [onPool-worker-9] c.k.r.bookcustomer.Resilience4jUnitTest  : service called
2022-12-28T15:22:52.010+08:00  INFO 37276 --- [onPool-worker-5] c.k.r.bookcustomer.Resilience4jUnitTest  : service called
2022-12-28T15:22:52.010+08:00  INFO 37276 --- [onPool-worker-3] c.k.r.bookcustomer.Resilience4jUnitTest  : service called
2022-12-28T15:22:52.010+08:00  INFO 37276 --- [onPool-worker-1] c.k.r.bookcustomer.Resilience4jUnitTest  : service called
2022-12-28T15:22:52.010+08:00  INFO 37276 --- [onPool-worker-6] c.k.r.bookcustomer.Resilience4jUnitTest  : service called
2022-12-28T15:22:52.010+08:00  INFO 37276 --- [onPool-worker-7] c.k.r.bookcustomer.Resilience4jUnitTest  : service called
2022-12-28T15:22:52.010+08:00  INFO 37276 --- [onPool-worker-8] c.k.r.bookcustomer.Resilience4jUnitTest  : service called
2022-12-28T15:22:52.010+08:00  INFO 37276 --- [onPool-worker-2] c.k.r.bookcustomer.Resilience4jUnitTest  : service called
2022-12-28T15:22:52.011+08:00  INFO 37276 --- [           main] c.k.r.bookcustomer.Resilience4jUnitTest  : service called

可以看到启动了10个线程去访问方法。加了隔舱后，隔舱限定了一次只能两个，输出如下

2022-12-28T15:33:48.648+08:00 ERROR 32256 --- [onPool-worker-4] c.k.r.bookcustomer.Resilience4jUnitTest  : meet error Bulkhead "my" is full and does not permit further calls
2022-12-28T15:33:48.648+08:00 ERROR 32256 --- [onPool-worker-6] c.k.r.bookcustomer.Resilience4jUnitTest  : meet error Bulkhead "my" is full and does not permit further calls
2022-12-28T15:33:48.648+08:00 ERROR 32256 --- [onPool-worker-7] c.k.r.bookcustomer.Resilience4jUnitTest  : meet error Bulkhead "my" is full and does not permit further calls
2022-12-28T15:33:48.648+08:00 ERROR 32256 --- [onPool-worker-4] c.k.r.bookcustomer.Resilience4jUnitTest  : meet error Bulkhead "my" is full and does not permit further calls
2022-12-28T15:33:48.648+08:00 ERROR 32256 --- [onPool-worker-8] c.k.r.bookcustomer.Resilience4jUnitTest  : meet error Bulkhead "my" is full and does not permit further calls
2022-12-28T15:33:48.648+08:00 ERROR 32256 --- [onPool-worker-5] c.k.r.bookcustomer.Resilience4jUnitTest  : meet error Bulkhead "my" is full and does not permit further calls
2022-12-28T15:33:48.648+08:00 ERROR 32256 --- [onPool-worker-2] c.k.r.bookcustomer.Resilience4jUnitTest  : meet error Bulkhead "my" is full and does not permit further calls
2022-12-28T15:33:48.648+08:00 ERROR 32256 --- [onPool-worker-3] c.k.r.bookcustomer.Resilience4jUnitTest  : meet error Bulkhead "my" is full and does not permit further calls
2022-12-28T15:33:48.650+08:00  INFO 32256 --- [onPool-worker-1] c.k.r.bookcustomer.Resilience4jUnitTest  : service called
2022-12-28T15:33:48.650+08:00  INFO 32256 --- [           main] c.k.r.bookcustomer.Resilience4jUnitTest  : service called

可以看到只有两次成功的访问，其它的访问都被block了。

限速器RateLimiter

RateLimiter的功能是限定一段时间内允许多少次访问，还是使用和Bulkhead一样的例子一样

 @Test
    public void whenRateLimiterInUse_thenItWorksAsExpected() throws InterruptedException {
        service = mock(RemoteService.class);

        RateLimiterConfig config = RateLimiterConfig.custom()
                .limitRefreshPeriod(Duration.ofMillis(1000))
                .limitForPeriod(4)
                .timeoutDuration(Duration.ofMillis(25))
                .build();

        RateLimiterRegistry rateLimiterRegistry = RateLimiterRegistry.of(config);

        RateLimiter rateLimiter = rateLimiterRegistry
                .rateLimiter("name1");

        CheckedFunction<Integer, Integer> decorated = RateLimiter
                .decorateCheckedFunction(rateLimiter, service::process);

        try {
            callAndBlock(decorated);
        }
        catch(Exception ex)
        {
            log.error("isfull");
        }
        finally
        {
            verify(service, times(4)).process(any(Integer.class));
        }

    }

    private void callAndBlock(CheckedFunction<Integer, Integer> decoratedService) throws InterruptedException {
        when(service.process(anyInt())).thenAnswer(invocation -> {
            log.info("service called");
            return null;
        });

        ArrayList<Integer> numberList = new ArrayList<Integer>();
        for(int i = 0;i<10;i++)
        {
            numberList.add(i);
        }

        numberList.parallelStream().forEach((i)->{
            try {
                decoratedService.apply(i);
            }
            catch (Exception ex)
            {
                log.error("meet error " + ex.getMessage());
            } catch (Throwable e) {
                throw new RuntimeException(e);
            }
        });
    }

我们这里故意设置1S中允许访问4次，实际的运行情况也是只允许了4次。日志输出如下

2022-12-28T15:39:52.027+08:00  INFO 35236 --- [onPool-worker-2] c.k.r.bookcustomer.Resilience4jUnitTest  : service called
2022-12-28T15:39:52.027+08:00  INFO 35236 --- [onPool-worker-5] c.k.r.bookcustomer.Resilience4jUnitTest  : service called
2022-12-28T15:39:52.027+08:00  INFO 35236 --- [           main] c.k.r.bookcustomer.Resilience4jUnitTest  : service called
2022-12-28T15:39:52.027+08:00  INFO 35236 --- [onPool-worker-7] c.k.r.bookcustomer.Resilience4jUnitTest  : service called
2022-12-28T15:39:52.053+08:00 ERROR 35236 --- [onPool-worker-6] c.k.r.bookcustomer.Resilience4jUnitTest  : meet error RateLimiter "name1" does not permit further calls
2022-12-28T15:39:52.060+08:00 ERROR 35236 --- [onPool-worker-3] c.k.r.bookcustomer.Resilience4jUnitTest  : meet error RateLimiter "name1" does not permit further calls
2022-12-28T15:39:52.060+08:00 ERROR 35236 --- [onPool-worker-9] c.k.r.bookcustomer.Resilience4jUnitTest  : meet error RateLimiter "name1" does not permit further calls
2022-12-28T15:39:52.060+08:00 ERROR 35236 --- [onPool-worker-1] c.k.r.bookcustomer.Resilience4jUnitTest  : meet error RateLimiter "name1" does not permit further calls
2022-12-28T15:39:52.060+08:00 ERROR 35236 --- [onPool-worker-8] c.k.r.bookcustomer.Resilience4jUnitTest  : meet error RateLimiter "name1" does not permit further calls
2022-12-28T15:39:52.075+08:00 ERROR 35236 --- [onPool-worker-4] c.k.r.bookcustomer.Resilience4jUnitTest  : meet error RateLimiter "name1" does not permit further calls

限速器这个功能只能限制在整体性能上面，如果要限制某个用户，只能某段时间访问多少次，它就做不到了。

Relilience4j 里面还提供了Retry,TimeLimiter,Cache. 感觉不是很有必要的功能， Retry在spring里面有相应的功能了，没有必要专门为了使用它而多加个包。 TimeLimiter，Cache 我感觉不是很受重视的功能，连例子文档都懒得提供，可见意义不大。
