wen 分布式任务调度平台XXL-JOB安装
安装xxl-job-admin
1.拉取镜像
#拉取镜像
docker pull xuxueli/xxl-job-admin:2.3.0
#新建挂载目录
mkdir /usr/local/xxl-job
mkdir /usr/local/xxl-job/admin
mkdir /usr/local/xxl-job/admin/logs

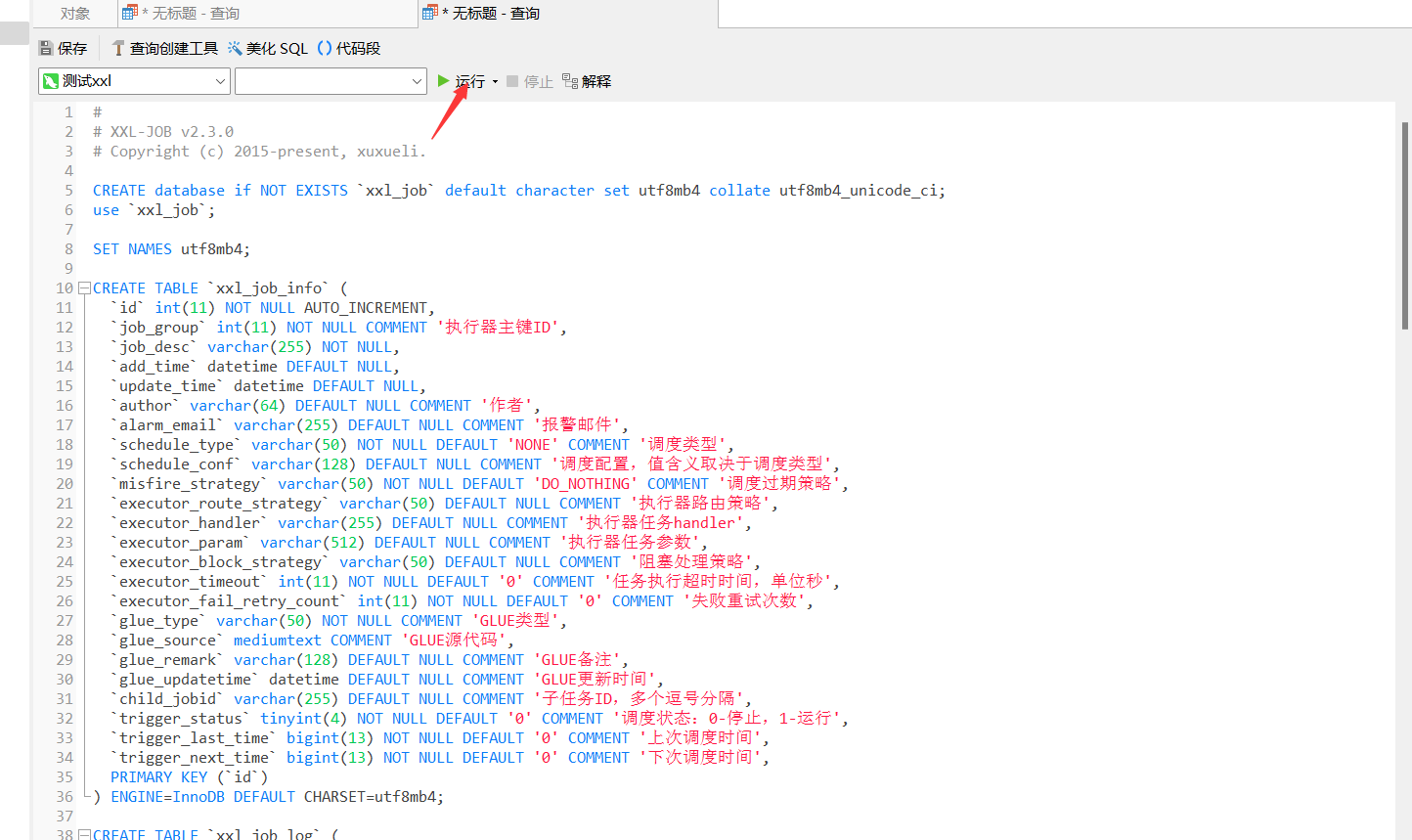

2.创建容器前先进行数据库初始化，打开Navicat或者Dbeaver然后执行
Mysql8安装教程
#
# XXL-JOB v2.3.0
# Copyright (c) 2015-present, xuxueli.
CREATE database if NOT EXISTS `xxl_job` default character set utf8mb4 collate utf8mb4_unicode_ci;
use `xxl_job`;
SET NAMES utf8mb4;
CREATE TABLE `xxl_job_info` (
`id` int(11) NOT NULL AUTO_INCREMENT,
`job_group` int(11) NOT NULL COMMENT "执行器主键ID",
`job_desc` varchar(255) NOT NULL,
`add_time` datetime DEFAULT NULL,
`update_time` datetime DEFAULT NULL,
`author` varchar(64) DEFAULT NULL COMMENT "作者",
`alarm_email` varchar(255) DEFAULT NULL COMMENT "报警邮件",
`schedule_type` varchar(50) NOT NULL DEFAULT "NONE" COMMENT "调度类型",
`schedule_conf` varchar(128) DEFAULT NULL COMMENT "调度配置，值含义取决于调度类型",
`misfire_strategy` varchar(50) NOT NULL DEFAULT "DO_NOTHING" COMMENT "调度过期策略",
`executor_route_strategy` varchar(50) DEFAULT NULL COMMENT "执行器路由策略",
`executor_handler` varchar(255) DEFAULT NULL COMMENT "执行器任务handler",
`executor_param` varchar(512) DEFAULT NULL COMMENT "执行器任务参数",
`executor_block_strategy` varchar(50) DEFAULT NULL COMMENT "阻塞处理策略",
`executor_timeout` int(11) NOT NULL DEFAULT "0" COMMENT "任务执行超时时间，单位秒",
`executor_fail_retry_count` int(11) NOT NULL DEFAULT "0" COMMENT "失败重试次数",
`glue_type` varchar(50) NOT NULL COMMENT "GLUE类型",
`glue_source` mediumtext COMMENT "GLUE源代码",
`glue_remark` varchar(128) DEFAULT NULL COMMENT "GLUE备注",
`glue_updatetime` datetime DEFAULT NULL COMMENT "GLUE更新时间",
`child_jobid` varchar(255) DEFAULT NULL COMMENT "子任务ID，多个逗号分隔",
`trigger_status` tinyint(4) NOT NULL DEFAULT "0" COMMENT "调度状态：0-停止，1-运行",
`trigger_last_time` bigint(13) NOT NULL DEFAULT "0" COMMENT "上次调度时间",
`trigger_next_time` bigint(13) NOT NULL DEFAULT "0" COMMENT "下次调度时间",
PRIMARY KEY (`id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4;
CREATE TABLE `xxl_job_log` (
`id` bigint(20) NOT NULL AUTO_INCREMENT,
`job_group` int(11) NOT NULL COMMENT "执行器主键ID",
`job_id` int(11) NOT NULL COMMENT "任务，主键ID",
`executor_address` varchar(255) DEFAULT NULL COMMENT "执行器地址，本次执行的地址",
`executor_handler` varchar(255) DEFAULT NULL COMMENT "执行器任务handler",
`executor_param` varchar(512) DEFAULT NULL COMMENT "执行器任务参数",
`executor_sharding_param` varchar(20) DEFAULT NULL COMMENT "执行器任务分片参数，格式如 1/2",
`executor_fail_retry_count` int(11) NOT NULL DEFAULT "0" COMMENT "失败重试次数",
`trigger_time` datetime DEFAULT NULL COMMENT "调度-时间",
`trigger_code` int(11) NOT NULL COMMENT "调度-结果",
`trigger_msg` text COMMENT "调度-日志",
`handle_time` datetime DEFAULT NULL COMMENT "执行-时间",
`handle_code` int(11) NOT NULL COMMENT "执行-状态",
`handle_msg` text COMMENT "执行-日志",
`alarm_status` tinyint(4) NOT NULL DEFAULT "0" COMMENT "告警状态：0-默认、1-无需告警、2-告警成功、3-告警失败",
PRIMARY KEY (`id`),
KEY `I_trigger_time` (`trigger_time`),
KEY `I_handle_code` (`handle_code`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4;
CREATE TABLE `xxl_job_log_report` (
`id` int(11) NOT NULL AUTO_INCREMENT,
`trigger_day` datetime DEFAULT NULL COMMENT "调度-时间",
`running_count` int(11) NOT NULL DEFAULT "0" COMMENT "运行中-日志数量",
`suc_count` int(11) NOT NULL DEFAULT "0" COMMENT "执行成功-日志数量",
`fail_count` int(11) NOT NULL DEFAULT "0" COMMENT "执行失败-日志数量",
`update_time` datetime DEFAULT NULL,
PRIMARY KEY (`id`),
UNIQUE KEY `i_trigger_day` (`trigger_day`) USING BTREE
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4;
CREATE TABLE `xxl_job_logglue` (
`id` int(11) NOT NULL AUTO_INCREMENT,
`job_id` int(11) NOT NULL COMMENT "任务，主键ID",
`glue_type` varchar(50) DEFAULT NULL COMMENT "GLUE类型",
`glue_source` mediumtext COMMENT "GLUE源代码",
`glue_remark` varchar(128) NOT NULL COMMENT "GLUE备注",
`add_time` datetime DEFAULT NULL,
`update_time` datetime DEFAULT NULL,
PRIMARY KEY (`id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4;
CREATE TABLE `xxl_job_registry` (
`id` int(11) NOT NULL AUTO_INCREMENT,
`registry_group` varchar(50) NOT NULL,
`registry_key` varchar(255) NOT NULL,
`registry_value` varchar(255) NOT NULL,
`update_time` datetime DEFAULT NULL,
PRIMARY KEY (`id`),
KEY `i_g_k_v` (`registry_group`,`registry_key`,`registry_value`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4;
CREATE TABLE `xxl_job_group` (
`id` int(11) NOT NULL AUTO_INCREMENT,
`app_name` varchar(64) NOT NULL COMMENT "执行器AppName",
`title` varchar(12) NOT NULL COMMENT "执行器名称",
`address_type` tinyint(4) NOT NULL DEFAULT "0" COMMENT "执行器地址类型：0=自动注册、1=手动录入",
`address_list` text COMMENT "执行器地址列表，多地址逗号分隔",
`update_time` datetime DEFAULT NULL,
PRIMARY KEY (`id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4;
CREATE TABLE `xxl_job_user` (
`id` int(11) NOT NULL AUTO_INCREMENT,
`username` varchar(50) NOT NULL COMMENT "账号",
`password` varchar(50) NOT NULL COMMENT "密码",
`role` tinyint(4) NOT NULL COMMENT "角色：0-普通用户、1-管理员",
`permission` varchar(255) DEFAULT NULL COMMENT "权限：执行器ID列表，多个逗号分割",
PRIMARY KEY (`id`),
UNIQUE KEY `i_username` (`username`) USING BTREE
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4;
CREATE TABLE `xxl_job_lock` (
`lock_name` varchar(50) NOT NULL COMMENT "锁名称",
PRIMARY KEY (`lock_name`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4;
INSERT INTO `xxl_job_group`(`id`, `app_name`, `title`, `address_type`, `address_list`, `update_time`) VALUES (1, "xxl-job-executor-sample", "示例执行器", 0, NULL, "2018-11-03 22:21:31" );
INSERT INTO `xxl_job_info`(`id`, `job_group`, `job_desc`, `add_time`, `update_time`, `author`, `alarm_email`, `schedule_type`, `schedule_conf`, `misfire_strategy`, `executor_route_strategy`, `executor_handler`, `executor_param`, `executor_block_strategy`, `executor_timeout`, `executor_fail_retry_count`, `glue_type`, `glue_source`, `glue_remark`, `glue_updatetime`, `child_jobid`) VALUES (1, 1, "测试任务1", "2018-11-03 22:21:31", "2018-11-03 22:21:31", "XXL", "", "CRON", "0 0 0 * * ? *", "DO_NOTHING", "FIRST", "demoJobHandler", "", "SERIAL_EXECUTION", 0, 0, "BEAN", "", "GLUE代码初始化", "2018-11-03 22:21:31", "");
INSERT INTO `xxl_job_user`(`id`, `username`, `password`, `role`, `permission`) VALUES (1, "admin", "e10adc3949ba59abbe56e057f20f883e", 1, NULL);
INSERT INTO `xxl_job_lock` ( `lock_name`) VALUES ( "schedule_lock");
commit;
3.创建容器
docker create --name xxl-job-admin -p 18080:8080
-e PARAMS="
--spring.datasource.url=jdbc:mysql://【数据库IP】:13306/xxl_job?Unicode=true&characterEncoding=UTF-8
--spring.datasource.username=【数据库账号】
--spring.datasource.password=【数据库密码】"
-v /usr/local/xxl-job/admin/logs:/data/applogs
--privileged=true
xuxueli/xxl-job-admin:2.3.0
#开放端口
firewall-cmd --add-port=18080/tcp --permanent
firewall-cmd --reload
在浏览器输入[IP]:18080/xxl-job-admin 访问，初始账号密码为admin 密码：123456
