3、spring+mybatis关联映射（无mapper实现类）+idea+maven

该工程采用spring+mybatis的关联映射，动态sql，sql片段实现

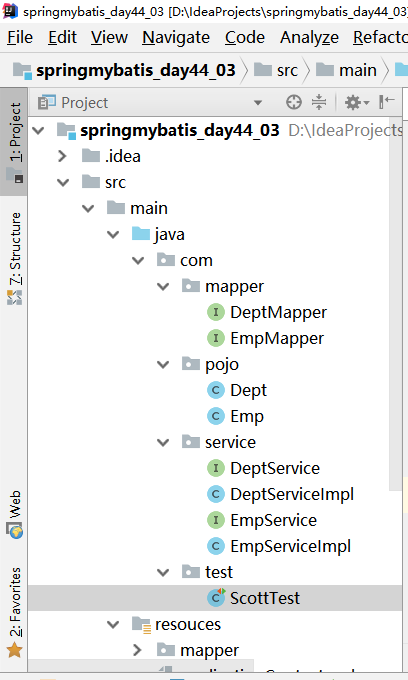

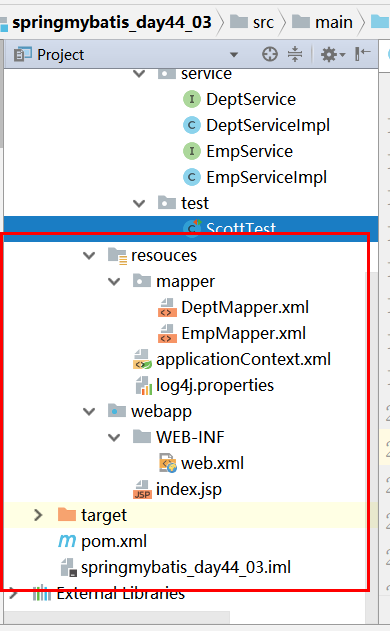

1、搭建项目结构如下

2、配置项目的pom.xml文件中的依赖

  1 <?xml version="1.0" encoding="UTF-8"?>
  2
  3 <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  4   xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  5   <modelVersion>4.0.0</modelVersion>
  6
  7   <groupId>com</groupId>
  8   <artifactId>springmybatis_day44_03</artifactId>
  9   <version>1.0-SNAPSHOT</version>
 10   <packaging>war</packaging>
 11
 12   <name>springmybatis_day44_03 Maven Webapp</name>
 13   <!-- FIXME change it to the project"s website -->
 14   <url>http://www.example.com</url>
 15
 16   <properties>
 17     <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
 18     <maven.compiler.source>1.7</maven.compiler.source>
 19     <maven.compiler.target>1.7</maven.compiler.target>
 20   </properties>
 21
 22
 23   <dependencies>
 24
 25     <dependency>
 26       <groupId>junit</groupId>
 27       <artifactId>junit</artifactId>
 28       <version>4.11</version>
 29     </dependency>
 30
 31     <!--1 https://mvnrepository.com/artifact/org.springframework/spring-beans -->
 32     <dependency>
 33       <groupId>org.springframework</groupId>
 34       <artifactId>spring-beans</artifactId>
 35       <version>4.3.6.RELEASE</version>
 36     </dependency>
 37
 38
 39     <!--2 https://mvnrepository.com/artifact/org.springframework/spring-context -->
 40     <dependency>
 41       <groupId>org.springframework</groupId>
 42       <artifactId>spring-context</artifactId>
 43       <version>4.3.6.RELEASE</version>
 44     </dependency>
 45
 46
 47     <!-- 3https://mvnrepository.com/artifact/org.springframework/spring-core -->
 48     <dependency>
 49       <groupId>org.springframework</groupId>
 50       <artifactId>spring-core</artifactId>
 51       <version>4.3.6.RELEASE</version>
 52     </dependency>
 53
 54
 55     <!--4 https://mvnrepository.com/artifact/org.springframework/spring-expression -->
 56     <dependency>
 57       <groupId>org.springframework</groupId>
 58       <artifactId>spring-expression</artifactId>
 59       <version>4.3.6.RELEASE</version>
 60     </dependency>
 61
 62
 63     <!--5 https://mvnrepository.com/artifact/org.springframework/spring-aop -->
 64     <dependency>
 65       <groupId>org.springframework</groupId>
 66       <artifactId>spring-aop</artifactId>
 67       <version>4.3.6.RELEASE</version>
 68     </dependency>
 69
 70
 71     <!--6 https://mvnrepository.com/artifact/aopalliance/aopalliance -->
 72     <dependency>
 73       <groupId>aopalliance</groupId>
 74       <artifactId>aopalliance</artifactId>
 75       <version>1.0</version>
 76     </dependency>
 77
 78
 79     <!--7 https://mvnrepository.com/artifact/org.aspectj/aspectjweaver -->
 80     <dependency>
 81       <groupId>org.aspectj</groupId>
 82       <artifactId>aspectjweaver</artifactId>
 83       <version>1.8.10</version>
 84     </dependency>
 85
 86
 87     <!--8 https://mvnrepository.com/artifact/log4j/log4j -->
 88     <dependency>
 89       <groupId>log4j</groupId>
 90       <artifactId>log4j</artifactId>
 91       <version>1.2.17</version>
 92     </dependency>
 93
 94
 95     <!--9 https://mvnrepository.com/artifact/commons-logging/commons-logging -->
 96     <dependency>
 97       <groupId>commons-logging</groupId>
 98       <artifactId>commons-logging</artifactId>
 99       <version>1.2</version>
100     </dependency>
101
102
103     <!--10 https://mvnrepository.com/artifact/org.springframework/spring-jdbc -->
104     <dependency>
105       <groupId>org.springframework</groupId>
106       <artifactId>spring-jdbc</artifactId>
107       <version>4.3.6.RELEASE</version>
108     </dependency>
109
110
111     <!--11 https://mvnrepository.com/artifact/org.springframework/spring-orm -->
112     <dependency>
113       <groupId>org.springframework</groupId>
114       <artifactId>spring-orm</artifactId>
115       <version>4.3.6.RELEASE</version>
116     </dependency>
117
118
119     <!--12 https://mvnrepository.com/artifact/org.springframework/spring-tx -->
120     <dependency>
121       <groupId>org.springframework</groupId>
122       <artifactId>spring-tx</artifactId>
123       <version>4.3.6.RELEASE</version>
124     </dependency>
125
126
127     <!--13 https://mvnrepository.com/artifact/org.springframework/spring-web -->
128     <dependency>
129       <groupId>org.springframework</groupId>
130       <artifactId>spring-web</artifactId>
131       <version>4.3.6.RELEASE</version>
132     </dependency>
133
134
135     <!--14 https://mvnrepository.com/artifact/org.springframework/spring-webmvc -->
136     <dependency>
137       <groupId>org.springframework</groupId>
138       <artifactId>spring-webmvc</artifactId>
139       <version>4.3.6.RELEASE</version>
140     </dependency>
141
142
143     <!--15 https://mvnrepository.com/artifact/org.mybatis/mybatis -->
144     <dependency>
145       <groupId>org.mybatis</groupId>
146       <artifactId>mybatis</artifactId>
147       <version>3.4.6</version>
148     </dependency>
149
150     <!--17 https://mvnrepository.com/artifact/org.mybatis/mybatis-spring -->
151     <dependency>
152       <groupId>org.mybatis</groupId>
153       <artifactId>mybatis-spring</artifactId>
154       <version>1.3.2</version>
155     </dependency>
156
157
158     <!--16 https://mvnrepository.com/artifact/mysql/mysql-connector-java -->
159     <dependency>
160       <groupId>mysql</groupId>
161       <artifactId>mysql-connector-java</artifactId>
162       <version>5.1.38</version>
163     </dependency>
164
165
166     <!--18 https://mvnrepository.com/artifact/javax.servlet/javax.servlet-api -->
167     <dependency>
168       <groupId>javax.servlet</groupId>
169       <artifactId>javax.servlet-api</artifactId>
170       <version>3.1.0</version>
171     </dependency>
172
173     <!--19 https://mvnrepository.com/artifact/javax.servlet/jstl -->
174     <dependency>
175       <groupId>javax.servlet</groupId>
176       <artifactId>jstl</artifactId>
177       <version>1.2</version>
178     </dependency>
179
180
181     <!--20 https://mvnrepository.com/artifact/taglibs/standard -->
182     <dependency>
183       <groupId>taglibs</groupId>
184       <artifactId>standard</artifactId>
185       <version>1.1.2</version>
186     </dependency>
187
188   </dependencies>
189
190 </project>
