0、综合案例功能介绍

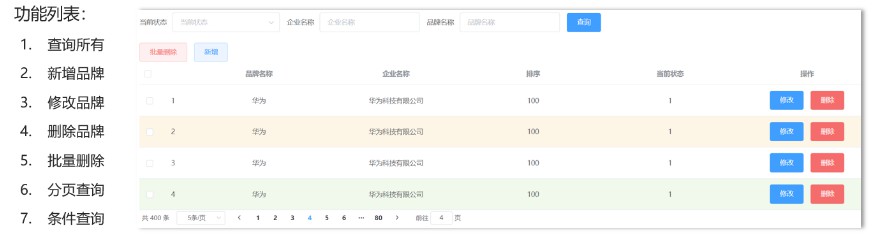

  • 以上是在综合案例要实现的功能。除了对数据的增删改查功能之外,还有一些复杂的功能,如批量删除分页查询条件查询等功能
    • 批量删除功能:每条数据前都有复选框,当我们选中多条数据并点击批量删除按钮后,会发送请求到后端并删除数据库指定的多条数据
    • 分页查询功能:当数据库中有很多数据的时候,我们不可能将所有的数据展示在一页里,这个时候就需要分页展示数据
    • 条件查询功能:数据库量大的时候,我们需要精确的查询一些想看到的数据,这个时候就需要通过条件查询

1、查询所有功能

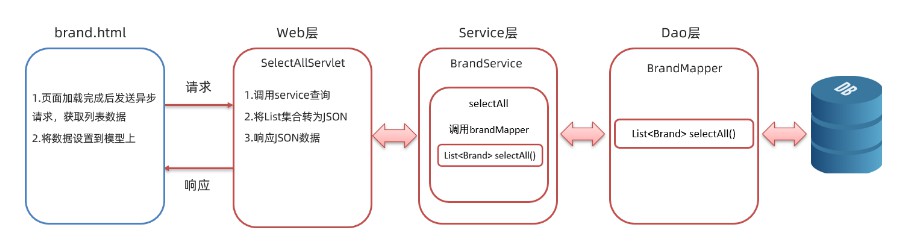

  • 整体流程如下图所示

1.1、后端实现

1.1.1、dao方法实现

  • com.coolman.mapper.BrandMapper接口中定义抽象方法,使用@Select注解编写SQL语句

    • // 查询所有品牌
          @Select("select * from brand.tb_brand order by ordered")
          List<Brand> selectAllBrands();

  • 由于表中有些字段名和实体类中的属性名没有对应,所以要进行相关配置

    • 方法1:在SQL语句中取别名

      • // 查询所有品牌
            @Select("select id, brand_name as brandName, company_name as companyName, ordered, description, status from brand.tb_brand order by ordered")
            List<Brand> selectAllBrands();

    • 方法2:在BrandMapper.xml映射配置文件中定义结果映射,同时在使用注解开发的条件下在Mapper接口中使用ResultMap注解

      • <resultMap id="brandResultMap" type="Brand">
                <result property="brandName" column="brand_name" />
                <result property="companyName" column="company_name" />
            </resultMap>

      • //查询所有品牌
            @Select("select * from brand.tb_brand order by ordered")
            @ResultMap("brandResultMap")
            List<Brand> selectAllBrands();

    • 方法3:在MyBatis配置文件中设置并开启驼峰自动命名映射

      • <settings>
          <setting name="mapUnderscoreToCamelCase" value="true"/>
        </settings>


1.1.2、service实现

  • // 查询所有品牌
        public List<Brand> selectAllBrands() {
            SqlSession sqlSession = MyBatisUtils.getSqlSession();

            BrandMapper mapper = sqlSession.getMapper(BrandMapper.class);

            List<Brand> brands = mapper.selectAllBrands();

            sqlSession.close();
            return brands;
        }


1.1.3、Servlet实现

  • package com.coolman.web.servlet;

    import com.alibaba.fastjson.JSON;
    import com.coolman.pojo.Brand;
    import com.coolman.service.BrandService;

    import javax.servlet.ServletException;
    import javax.servlet.annotation.WebServlet;
    import javax.servlet.http.HttpServlet;
    import javax.servlet.http.HttpServletRequest;
    import javax.servlet.http.HttpServletResponse;
    import java.io.IOException;
    import java.util.List;

    @WebServlet("/selectAllBrandsServlet")
    public class SelectAllBrandsServlet extends HttpServlet {
        protected void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
            doGet(request, response);
        }

        protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
            // 在这里处理请求

            // 调用服务,查询所有
            List<Brand> brands = new BrandService().selectAllBrands();
    //        System.out.println(brands);

            // 将List对象转换为JSON字符串,传递给前端
            String brandsJson = JSON.toJSONString(brands);

            // 解决中文乱码问题,声明字符串为JSON字符串
            response.setContentType("application/json;charset=utf-8");

            // 返回JSON字符串
            response.getWriter().print(brandsJson);
        }
    }


1.2、前端实现

  • created() {
                axios.get("selectAllBrandsServlet").then( response => {
                    // window.alert("正在请求数据");
                    // console.log(response.data);
                    this.tableData = response.data;
                });
            },


2、添加功能

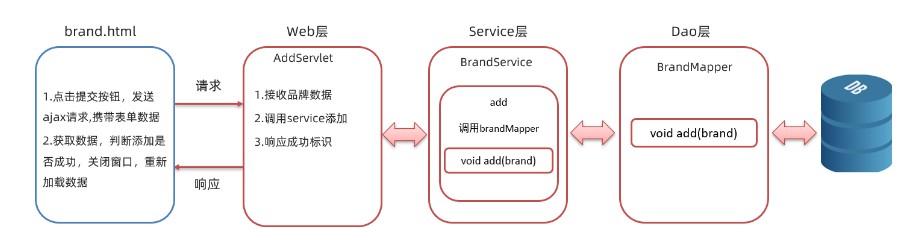

  • 整体流程如图所示

2.1、后端实现

2.1.1、dao方法实现

  • // 添加品牌
        @Insert("insert into brand.tb_brand values(null, #{brandName}, #{companyName}, #{ordered}, #{description}, #{status})")
        void addBrand(Brand brand);


2.1.2、service方法实现

  • // 添加品牌
        public void addBrand(Brand brand) {
            SqlSession sqlSession = MyBatisUtils.getSqlSession();

            BrandMapper mapper = sqlSession.getMapper(BrandMapper.class);

            mapper.addBrand(brand);

            sqlSession.commit();

            sqlSession.close();
        }


2.1.3、servlet方法实现

  • package com.coolman.web.servlet;

    import com.alibaba.fastjson.JSON;
    import com.coolman.pojo.Brand;
    import com.coolman.service.BrandService;

    import javax.servlet.ServletException;
    import javax.servlet.ServletInputStream;
    import javax.servlet.ServletOutputStream;
    import javax.servlet.annotation.WebServlet;
    import javax.servlet.http.HttpServlet;
    import javax.servlet.http.HttpServletRequest;
    import javax.servlet.http.HttpServletResponse;
    import java.io.IOException;
    import java.io.PrintStream;

    @WebServlet("/addBrandServlet")
    public class AddBrandServlet extends HttpServlet {
        protected void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
            doGet(request, response);
        }

        protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
            // 在这里处理请求

            // 获取ajax请求返回的json字符串
            // 获取请求体中的输入流
            ServletInputStream inputStream = request.getInputStream();
            // 调用JSON的api将返回的json字符串转换为实体类对象
            Brand brand = JSON.parseObject(inputStream, Brand.class);

            // 调用服务保存信息
            new BrandService().addBrand(brand);

            response.getWriter().print("ok");
        }
    }


2.2、前端实现

  • 在Vue对象中的方法属性中添加一个功能

    • // 添加数据
                  addBrand(){
                      console.log(this.brand);
                      axios.post("addBrandServlet", this.brand).then(response => {
                          if (response.data == "ok") {
                              this.dialogVisible = false;
                              window.location.href = "brand.html";
                          } else {
                              window.alert("添加失败!");
                          }
                      })
                  },


3、删除功能

3.1、后端实现

3.1.1、dao层实现

  • // 删除品牌
        @Delete("delete from brand.tb_brand where id = #{id}")
        void deleteBrand(int id);


3.1.2、service层实现

  • // 删除品牌
        public void deleteBrand(int id) {
            SqlSession sqlSession = MyBatisUtils.getSqlSession();

            BrandMapper mapper = sqlSession.getMapper(BrandMapper.class);

            mapper.deleteBrand(id);

            sqlSession.commit();

            sqlSession.close();
        }


3.1.3、servlet层实现

  • package com.coolman.web.servlet;

    import com.coolman.service.BrandService;

    import javax.servlet.ServletException;
    import javax.servlet.annotation.WebServlet;
    import javax.servlet.http.HttpServlet;
    import javax.servlet.http.HttpServletRequest;
    import javax.servlet.http.HttpServletResponse;
    import java.io.IOException;

    @WebServlet("/deleteBrandServlet")
    public class DeleteBrandServlet extends HttpServlet {
        protected void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
            doGet(request, response);
        }

        protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
            // 在这里处理请求

            // 获取返回的id
            String idStr = request.getParameter("id");
            int id = Integer.parseInt(idStr);

            // 调用服务,删除该品牌
            new BrandService().deleteBrand(id);

            // 返回成功删除信息
            response.getWriter().print("ok");
        }
    }


3.2、前端实现

  • 在Vue对象的method属性中添加deleteBrandById方法,同时在html标签中的点击事件中,传递一个参数回来到方法中

    • <el-table-column align="center" label="操作">
                      <template slot-scope="scope">
                          <el-button type="primary" @click="">修改</el-button>
                          <el-button type="danger" @click="deleteBrandById(scope.row.id)">删除</el-button>
                      </template>
                  </el-table-column>

    • // 删除数据
                  deleteBrandById(id){
                      // 发送ajax请求
                      axios.get("deleteBrandServlet?id=" + id).then( response => {
                          if (response.data == "ok") {
                              // 删除成功,跳转回brand.html
                              window.location.href = "brand.html";
                          } else {
                              window.alert("删除失败");
                          }
                      });
                  },


4、修改功能

4.1、后端实现

4.1.1、dao层实现

  • // 修改品牌
        // 回显功能,根据id查询品牌信息
        @Select("select * from brand.tb_brand where id = #{id}")
        Brand selectBrandById(int id);
        // 修改功能
        @Update("update brand.tb_brand set brand_name = #{brandName}, company_name = #{companyName}, ordered = #{ordered}, " +
                "description = #{description},status = #{status} where id = #{id}")
        void updateBrandById(Brand brand);


4.1.2、service层实现

  •     // 修改品牌
        // 回显功能
        public Brand selectBrandById(int id) {
            SqlSession sqlSession = MyBatisUtils.getSqlSession();

            BrandMapper mapper = sqlSession.getMapper(BrandMapper.class);

            Brand brand = mapper.selectBrandById(id);

            sqlSession.close();

            return brand;
        }
        // 修改功能
        public void updateBrandById(Brand brand) {
            SqlSession sqlSession = MyBatisUtils.getSqlSession();

            sqlSession.getMapper(BrandMapper.class).updateBrandById(brand);

            sqlSession.commit();
            sqlSession.close();
        }


4.1.3、servlet层实现

  • 回显功能

    • package com.coolman.web.servlet;

      import com.alibaba.fastjson.JSON;
      import com.coolman.pojo.Brand;
      import com.coolman.service.BrandService;

      import javax.servlet.ServletException;
      import javax.servlet.annotation.WebServlet;
      import javax.servlet.http.HttpServlet;
      import javax.servlet.http.HttpServletRequest;
      import javax.servlet.http.HttpServletResponse;
      import java.io.IOException;

      @WebServlet("/selectBrandByIdServlet")
      public class SelectBrandByIdServlet extends HttpServlet {
          protected void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
              doGet(request, response);
          }

          protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
              // 在这里处理请求

              // 接收前端返回的id
              String idStr = request.getParameter("id");
              int id = Integer.parseInt(idStr);

              // 调用服务,查询品牌信息
              Brand brand = new BrandService().selectBrandById(id);

              // 将Java对象转换成json数据,返回给前端
              String jsonString = JSON.toJSONString(brand);

              // 向前端声明返回的数据是json数据,同时更改编码格式防止编码错误
              response.setContentType("application/json;charset=utf-8");

      //        System.out.println(jsonString);
              response.getWriter().print(jsonString);
          }
      }

  • 修改功能

    • package com.coolman.web.servlet;

      import com.alibaba.fastjson.JSON;
      import com.coolman.pojo.Brand;
      import com.coolman.service.BrandService;

      import javax.servlet.ServletException;
      import javax.servlet.ServletInputStream;
      import javax.servlet.annotation.WebServlet;
      import javax.servlet.http.HttpServlet;
      import javax.servlet.http.HttpServletRequest;
      import javax.servlet.http.HttpServletResponse;
      import java.io.IOException;

      @WebServlet("/updateBrandByIdServlet")
      public class UpdateBrandByIdServlet extends HttpServlet {
          protected void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
              doGet(request, response);
          }

          protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
              // 在这里处理请求
              // 接收前端返回的json数据
              // 得到输入流
              ServletInputStream inputStream = request.getInputStream();
              // 待用JSON的API转换成JAVA对象
              Brand brand = JSON.parseObject(inputStream, Brand.class);

              // 调用服务,修改数据
              new BrandService().updateBrandById(brand);

              // 返回修改成功信息给前端
              response.getWriter().print("ok");
          }
      }


4.2、前端实现

  • //修改数据
                // 点击修改按钮后,为了增强用户体验,添加一个数据回显功能
                selectBrandById(id){
                    this.dialogVisibleUpdate = true
                    // 发送ajax请求
                    axios.get("selectBrandByIdServlet?id=" + id).then(response => {
                     // 接收后端返回的json数据
                     this.brand = response.data;
                     // el-switch开关的默认值必须类型也要匹配~
                     this.brand.status = this.brand.status.toString();
                     console.log(this.brand);
                    });
                },
                // 执行修改语句
                updateBrandById(id){
                    // 发送ajax请求
                    axios.post("updateBrandByIdServlet", this.brand).then(response => {
                       if (response.data == "ok") {
                           // 跳转到brand.html页面
                           window.location.href = "brand.html";
                       }else {
                           window.alert("修改失败!")
                       }
                    });
                },


5、servlet优化

5.1、背景

  • Web层的Servlet个数太多,不利于管理和编写
    • 模块的每一个功能都需要定义一个servlet,当模块的数量多时,就很容易造成servlet泛滥。

5.2、解决方法

  • 一个模块只定义一个servlet,模块中的每一个功能只需要在servlet中定义对应的方法,如下代码所示

  • @WebServlet("/brand/*")
    public class BrandServlet {
        //查询所有
    	public void selectAll(...) {}

        //添加数据
        public void add(...) {}

         //修改数据
        public void update(...) {}

        //删除删除
        public void delete(...) {}
    }


5.3、思路

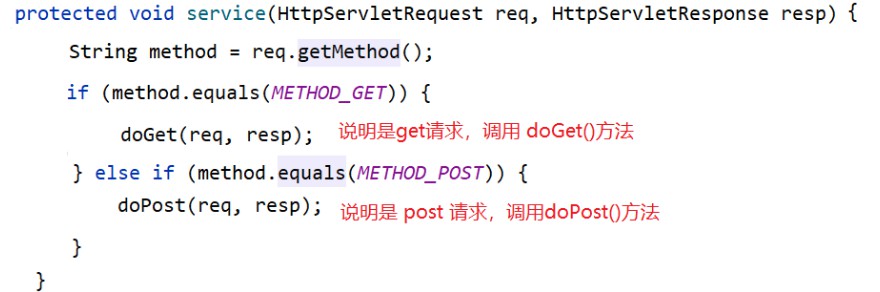

  • 当发送请求至servlettomcat会自动调用service()方法,源码如下所示
    • 我们一般在自定义的servlet中会重写doGet()doPost()方法,当我们访问该servlet的时候会根据请求方式将请求分发给doGet()或者doPost()方法
  • 那么可以仿照这样的请求分发的思想,在service()方法中根据具体的操作调用对应的方法
    • 如:查询所有就调用selectAll()方法,添加企业信息就调用add()方法

5.4、具体实现

  • 定义一个通用的servlet类,在定义其他的servlet是不需要继承HttpServlet,而继承我们定义的BaseServlet,在BaseServlet中调用具体servlet(如BrandServlet)中的对应方法,如下所示

    • BaseServlet

      • public class BaseServlet extends HttpServlet {
            @Override
            protected void service(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
                //进行请求的分发
            }
        }

    • BrandServlet

      • @WebServlet("/brand/*")
        public class BrandServlet extends BaseServlet {
            //用户实现分页查询
        	public void selectAll(...) {}

            //添加企业信息
            public void add(...) {}

            //修改企业信息
            public void update(...) {}

            //删除企业信息
            public void delete(...) {}
        }

  • 那么如何在BaseServlet中调用对应的方法,进行请求分发呢?

    • 可以规定在发送请求的时候,请求资源的二级路径(/brandServlet/selectAll)和需要调用的方法名相同,如下所示

      • 查询所有数据的路径以后就需要写成: http://localhost:8080/brand-case/brandServlet/selectAll
      • 添加数据的路径以后就需要写成: http://localhost:8080/brand-case/brandServlet/add
      • 修改数据的路径以后就需要写成: http://localhost:8080/brand-case/brandServlet/update
      • 删除数据的路径以后就需要写成: http://localhost:8080/brand-case/brandServlet/delete
    • 或者给在路径中添加一个参数,值为对应的方法名称,如下所示

      • 查询所有数据的路径以后就需要写成: http://localhost:8080/brand-case/brandServlet?action=selectAll
  • 这样的话,在BaseServlet中就需要获取到资源的二级路径作为方法名或者路径中的action参数的值,然后调用该方法

5.4.1、后端代码

  • BaseServlet

    • package com.coolman.web.servlet;

      import cn.hutool.core.util.StrUtil;
      import com.coolman.web.servlet.BrandServlet;

      import javax.servlet.ServletException;
      import javax.servlet.annotation.WebServlet;
      import javax.servlet.http.HttpServlet;
      import javax.servlet.http.HttpServletRequest;
      import javax.servlet.http.HttpServletResponse;
      import java.io.IOException;
      import java.lang.reflect.InvocationTargetException;
      import java.lang.reflect.Method;

      public class BaseServlet extends HttpServlet {

          @Override
          // tomcat中的servlet每次被调用都会执行service方法
          protected void service(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
              // 在这里分发请求
              // 1. 获取方法名称
              // 1.1 如果请求的URL格式为 .../brandServlet?action=selectAll

              // 那么获取方法名称则要简单很多
      //        String methodName = request.getParameter("action");     // 但是在前端的ajax请求中就需要多写一些单词

              // 1.2 如果请求的URL格式为 .../brandServlet/selectAll
              // 使用工具类,获取到最后一个"/"号后面的字符串
              // 1.2.1 获取请求的URI
              String requestURI = request.getRequestURI();
              // 1.2.2 使用工具类,获取到最后一个"/"号后面的字符串
              String methodName = StrUtil.subAfter(requestURI, "/", true);

              // 2. 获取方法名称后调用方法
              // 方式1:
      //        if ("selectAll".equals(methodName)) {
      //            selectAll(request, response);
      //        } else if ("add".equals(methodName)) {
      //            add(request, response);
      //        } else if ("delete".equals(methodName)) {
      //            delete(request, response);
      //        } else if ("update".equals(methodName)) {
      //            update(request, response);
      //        } //else if ...

              // 方式2: 方式1在当功能多的时候就会显地条件判断很冗余
              //  可以利用反射的方法,获取到方法,然后调用对应的方法即可
              try {
                  Method method = this.getClass().getDeclaredMethod(methodName, HttpServletRequest.class, HttpServletResponse.class);
                  // 再让方法对象执行
                  // 暴力反射获取字节码对象的时候需要去除权限(在同一个包下,protected是可以访问的)
      //            method.setAccessible(true);
                  method.invoke(this, request, response);
              } catch (Exception e) {
                  e.printStackTrace();
              }
      //        catch (NoSuchMethodException | IllegalAccessException | InvocationTargetException e) {
      //            e.printStackTrace();
      //        }

          }
      }

  • BrandServlet

    • package com.coolman.web.servlet;

      import com.alibaba.fastjson.JSON;
      import com.coolman.pojo.Brand;
      import com.coolman.service.BrandService;

      import javax.servlet.ServletException;
      import javax.servlet.ServletInputStream;
      import javax.servlet.annotation.WebServlet;
      import javax.servlet.http.HttpServletRequest;
      import javax.servlet.http.HttpServletResponse;
      import java.io.IOException;
      import java.util.List;

      @WebServlet("/brand/*") // 不带action
      //@WebServlet("/brand") // 带action
      public class BrandServlet extends BaseServlet {
          // 查询所有品牌
          protected void selectAll(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
              // 调用服务,查询所有
              List<Brand> brands = new BrandService().selectAllBrands();
      //        System.out.println(brands);

              // 将List对象转换为JSON字符串,传递给前端
              String brandsJson = JSON.toJSONString(brands);

              // 解决中文乱码问题,声明字符串为JSON字符串
              response.setContentType("application/json;charset=utf-8");

              // 返回JSON字符串
              response.getWriter().print(brandsJson);
          }

          // 添加品牌
          protected void add(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
              // 获取ajax请求返回的json字符串
              // 获取请求体中的输入流
              ServletInputStream inputStream = request.getInputStream();
              // 调用JSON的api将返回的json字符串转换为实体类对象
              Brand brand = JSON.parseObject(inputStream, Brand.class);

              // 调用服务保存信息
              new BrandService().addBrand(brand);

              response.getWriter().print("ok");
          }

          // 删除品牌
          protected void delete(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
              // 获取返回的id
              String idStr = request.getParameter("id");
              int id = Integer.parseInt(idStr);

              // 调用服务,删除该品牌
              new BrandService().deleteBrand(id);

              // 返回成功删除信息
              response.getWriter().print("ok");
          }

          // 根据id查询品牌
          protected void selectBrandById(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
              // 接收前端返回的id
              String idStr = request.getParameter("id");
              int id = Integer.parseInt(idStr);

              // 调用服务,查询品牌信息
              Brand brand = new BrandService().selectBrandById(id);

              // 将Java对象转换成json数据,返回给前端
              String jsonString = JSON.toJSONString(brand);

              // 向前端声明返回的数据是json数据,同时更改编码格式防止编码错误
              response.setContentType("application/json;charset=utf-8");

      //        System.out.println(jsonString);
              response.getWriter().print(jsonString);
          }

          // 修改品牌信息
          protected void update(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
              // 接收前端返回的json数据
              // 得到输入流
              ServletInputStream inputStream = request.getInputStream();
              // 待用JSON的API转换成JAVA对象
              Brand brand = JSON.parseObject(inputStream, Brand.class);

              // 调用服务,修改数据
              new BrandService().updateBrandById(brand);

              // 返回修改成功信息给前端
              response.getWriter().print("ok");
          }

      }

注意事项
  • BaseServletBrandServlet要放在同一个包下,否则因为BrandServlet中的方法全都是protected修饰的方法,必须要设置取出权限才可调用
    • method.setAccessible(true);

7、批量删除

7.1、后端实现

7.1.1、dao层实现

  • BrandMapper.java

    • // 批量删除
          void deleteByIds(@Param("ids") int[] ids);

  • BrandMapper.xml

    • <delete id="deleteByIds">
              delete from brand.tb_brand where id in
              <foreach collection="ids" separator="," open="(" close=")" item="id">
                  #{id}
              </foreach>
          </delete>


7.1.2、service层实现

  •     // 批量删除功能
        public void deleteByIds(int[] ids) {
            SqlSession sqlSession = MyBatisUtils.getSqlSession(true);
            BrandMapper mapper = sqlSession.getMapper(BrandMapper.class);

            mapper.deleteByIds(ids);

            sqlSession.close();
        }


7.1.3、web层servlet实现

  •     // 批量删除
        protected void deleteByIds(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
            // 接收前端返回的id数组
            ServletInputStream inputStream = request.getInputStream();
            int[] ids = JSON.parseObject(inputStream, int[].class);

            // 调用服务
            new BrandService().deleteByIds(ids);

            // 返回成功信息
            response.getWriter().print("ok");
        }


7.2、前端实现

  • body中的标签绑定好事件后,执行事件的方法

    •        // 批量删除数据
             deleteBatch() {
                 this.$confirm("确定要删除吗?","提示", {
                     confirmButtonText: "确定",
                     cancelButtonText: "取消",
                     type: "warning"
                 }).then( () => {
                     // 点击确定按钮后要执行的操作
                     // this.$message({
                     //     message: "删除成功!",
                     //     type: "success"
                     // });
                     let ids = [];
                     for (let i = 0; i < this.multipleSelection.length; i++) {
                         // ids[i] = this.multipleSelection[i].id;
                         ids.push(this.multipleSelection[i].id);
                     }
                     console.log(ids);
                     axios.post("brand/deleteByIds", ids).then( response => {
                         if (response.data == "ok") {
                             window.location.href = "brand.html";
                         } else {
                             this.$message({
                                 message: "删除失败!",
                                 type: "error"
                             });
                         }
                     });
                 });
             },


8、分页查询

8.1、后端实现

8.1.1、dao层实现

  • // 分页查询
        //select * from ... limit 起始索引, 每页条数
    //    select * from tb_brand limit 0, 5;  // 第一页
    //
    //    select * from tb_brand limit 5, 5;  // 第二页
    //
    //    select * from tb_brand limit 10, 5; // 第三页

        //select * from ... limit (起始索引 - 1) * 每页条数, 每页条数
        @Select("select * from brand.tb_brand limit #{currentPage}, #{pageSize}")
        List<Brand> selectBrandByPage(@Param("currentPage") int currentPage, @Param("pageSize") int pageSize);
        // 页码左边需要的总条数
        @Select("select count(*) from brand.tb_brand")
        Integer selectSumCount();


8.1.2、service层实现

  •     // 分页功能
        public PageBean<Brand> selectBrandByPage(int currentPage, int pageSize) {
            //select * from ... limit (起始索引 - 1) * 每页条数, 每页条数
            currentPage = (currentPage - 1) * pageSize;

            SqlSession sqlSession = MyBatisUtils.getSqlSession();
            BrandMapper mapper = sqlSession.getMapper(BrandMapper.class);

            List<Brand> brands = mapper.selectBrandByPage(currentPage, pageSize);
            int totalCount = mapper.selectSumCount();

            sqlSession.close();

            return new PageBean<Brand>(totalCount, brands);
        }


8.1.3、web层servlet实现

  •     // 处理分页请求
        protected void selectBrandByPage(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
            // 接收前端返回的页码数
            // pageSize
            int pageSize = Integer.parseInt(request.getParameter("pageSize"));

            // currentPage
            int currentPage = Integer.parseInt(request.getParameter("currentPage"));

            // 调用服务
            PageBean<Brand> pageBean = new BrandService().selectBrandByPage(currentPage, pageSize);

            // 返回数据
            String string = JSON.toJSONString(pageBean);
            response.setContentType("application/json;charset=utf-8");
            response.getWriter().print(string);
        }


8.2、前端实现

  • created()函数

    • created() {
                  axios.get("brand/selectBrandByPage?currentPage=" + this.currentPage + "&pageSize=" + this.pageSize).then( response => {
                      // window.alert("正在请求数据");
                      // console.log(response.data);
                      this.totalCount = response.data.totalCount;
                      this.tableData = response.data.list;
                  });
              }

  • handleSizeChange(val)函数(每一页的数据量)

    • handleSizeChange(val) {
                      console.log(`每页 ${val} 条`);
                      this.pageSize = val;
                      axios.get("brand/selectBrandByPage?currentPage=" + this.currentPage + "&pageSize=" + this.pageSize).then( response => {
                          // window.alert("正在请求数据");
                          // console.log(response.data);
                          this.tableData = response.data.list;
                      });

                  }

  • handleCurrentChange(val)函数(当前页码)

    • handleCurrentChange(val) {
                      console.log(`当前页: ${val}`);
                      this.currentPage = val;
                      axios.get("brand/selectBrandByPage?currentPage=" + this.currentPage + "&pageSize=" + this.pageSize).then( response => {
                          // window.alert("正在请求数据");
                          // console.log(response.data);
                          this.tableData = response.data.list;
                      });
                  }


9、条件查询

9.1、后端实现

9.1.1、dao层实现

  • Mapper接口

    • // 多条件查询
          List<Brand> selectBrandByCondition(@Param("brand") Brand brand, @Param("currentPage") int currentPage, @Param("pageSize") int pageSize);
          // 查询结果记录数
          int selectSearchCount(Brand brand);

  • Mapper映射文件

    • <select id="selectBrandByCondition" resultMap="brandResultMap">
              select * from brand.tb_brand
              <where>
                  <!-- 当状态码设置为0或1的时候,很容易出现框架自动转换成false或true的情况;可以看作一个小bug -->
                      <!-- 当传入的是int型的数字 0 时,mybatis会把它当成空字符串
                           status != "", 0 != ""  ==>  "" != ""
                      -->
                  <if test="brand.status != null">
                      status = #{brand.status}
                  </if>
                  <if test="brand.brandName != null and brand.brandName != """>
                      and brand_name like #{brand.brandName}
                  </if>
                  <if test="brand.companyName != null and brand.companyName != """>
                      and company_name like #{brand.companyName}
                  </if>
              </where>
              order by ordered limit #{currentPage}, #{pageSize}
          </select>

          <select id="selectSearchCount" resultType="java.lang.Integer">
              select count(*) from brand.tb_brand
              <where>
                  <if test="status != null">
                      status = #{status}
                  </if>
                  <if test="brandName != null and brandName != """>
                      and brand_name like #{brandName}
                  </if>
                  <if test="companyName != null and companyName != """>
                      and company_name like #{companyName}
                  </if>
              </where>
          </select>


9.1.2、service层实现

  •     // 多条件查询
        public PageBean<Brand> selectBrandByCondition(Brand brand, int currentPage, int pageSize) {
            SqlSession sqlSession = MyBatisUtils.getSqlSession();
            BrandMapper mapper = sqlSession.getMapper(BrandMapper.class);

            if (brand.getBrandName() != null && brand.getBrandName().length() > 0) {
                brand.setBrandName("%" + brand.getBrandName() + "%");
            }
            if (brand.getCompanyName() != null && brand.getCompanyName().length() > 0) {
                brand.setCompanyName("%" + brand.getCompanyName() + "%");
            }

            currentPage = (currentPage - 1) * pageSize;
            List<Brand> brands = mapper.selectBrandByCondition(brand, currentPage, pageSize);
          	int count = mapper.selectSearchCount(brand);
            sqlSession.close();
          	return new PageBean<>(count, brands);
        }


9.1.3、web层servlet实现

  •     // 处理搜索请求
        protected void selectBrandByCondition(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
            // 接收前端返回的数据
            int currentPage = Integer.parseInt(request.getParameter("currentPage"));
            int pageSize = Integer.parseInt(request.getParameter("pageSize"));

            ServletInputStream inputStream = request.getInputStream();
            Brand brand = JSON.parseObject(inputStream, Brand.class);

            System.out.println("brand = " + brand);

            // 调用服务
            PageBean<Brand> brands = new BrandService().selectBrandByCondition(brand, currentPage, pageSize);

            // 返回数据
            String string = JSON.toJSONString(brands);
            response.setContentType("application/json;charset=utf-8");
            response.getWriter().print(string);
        }


9.2、前端实现

  • <!DOCTYPE html>
    <html lang="en">
    <head>
        <meta charset="UTF-8">
        <title>商品列表</title>
        <style>
            .el-table .warning-row {
                background: oldlace;
            }

            .el-table .success-row {
                background: #f0f9eb;
            }
        </style>

    </head>
    <body>
    <div id="app">

        <!--搜索表单-->
        <el-form :inline="true" v-model="brand" class="demo-form-inline">

            <el-form-item label="当前状态">
                <el-select v-model="brand.status" placeholder="当前状态">
                    <el-option label="启用" value="1"></el-option>
                    <el-option label="禁用" value="0"></el-option>
                </el-select>
            </el-form-item>

            <el-form-item label="企业名称">
                <el-input v-model="brand.companyName" placeholder="企业名称"></el-input>
            </el-form-item>

            <el-form-item label="品牌名称">
                <el-input v-model="brand.brandName" placeholder="品牌名称"></el-input>
            </el-form-item>

            <el-form-item>
                <el-button type="primary" @click="onSubmit()">查询</el-button>
            </el-form-item>
        </el-form>

        <!--按钮-->
        <el-row>
            <el-button type="danger" plain @click="deleteBatch()">批量删除</el-button>
            <el-button type="primary" plain @click="dialogVisibleAdd = true">新增</el-button>
        </el-row>

        <!--添加数据对话框表单-->
        <el-dialog
                title="添加品牌"
                :visible.sync="dialogVisibleAdd"
                width="30%"
                >

            <el-form ref="form" :model="brand" label-width="80px">
                <el-form-item label="品牌名称">
                    <el-input v-model="brand.brandName"></el-input>
                </el-form-item>

                <el-form-item label="企业名称">
                    <el-input v-model="brand.companyName"></el-input>
                </el-form-item>

                <el-form-item label="排序">
                    <el-input v-model="brand.ordered"></el-input>
                </el-form-item>

                <el-form-item label="备注">
                    <el-input type="textarea" v-model="brand.description"></el-input>
                </el-form-item>

                <el-form-item label="状态">
                    <el-switch v-model="brand.status"
                               active-value="1"
                               inactive-value="0"
                    ></el-switch>
                </el-form-item>
                        <el-form-item>
                  <el-button type="primary" @click="addBrand">提交</el-button>
                  <el-button @click="dialogVisibleAdd = false">取消</el-button>
              </el-form-item>
          </el-form>

      </el-dialog>

      <!--修改数据对话框表单-->
      <el-dialog
              title="编辑品牌"
              :visible.sync="dialogVisibleUpdate"
              width="30%"
      >

          <el-form ref="form" :model="brand" label-width="80px">
              <el-form-item label="品牌名称">
                  <el-input v-model="brand.brandName"></el-input>
              </el-form-item>

              <el-form-item label="企业名称">
                  <el-input v-model="brand.companyName"></el-input>
              </el-form-item>

              <el-form-item label="排序">
                  <el-input v-model="brand.ordered"></el-input>
              </el-form-item>

              <el-form-item label="备注">
                  <el-input type="textarea" v-model="brand.description"></el-input>
              </el-form-item>

              <el-form-item label="状态">
                  <el-switch
                          v-model="brand.status"
                          active-value="1"
                          inactive-value="0"
                  ></el-switch>

              </el-form-item>
                      <el-form-item>
                  <el-button type="primary" @click="update()">提交</el-button>
                  <el-button @click="dialogVisibleUpdate = false">取消</el-button>
              </el-form-item>
          </el-form>

      </el-dialog>

      <!--表格-->
      <template>
          <el-table
                  :data="tableData"
                  style="width: 100%"
                  :row-class-name="tableRowClassName"
                  @selection-change="handleSelectionChange"
          >
              <el-table-column
                      type="selection"
                      width="55">
              </el-table-column>
              <el-table-column
                      type="index"
                      width="50">
              </el-table-column>

              <el-table-column
                      prop="brandName"
                      label="品牌名称"
                      align="center"
              >
              </el-table-column>
              <el-table-column
                      prop="companyName"
                      label="企业名称"
                      align="center"
              >
              </el-table-column>
              <el-table-column
                      prop="ordered"
                      align="center"
                      label="排序">
              </el-table-column>
              <el-table-column
                      prop="description"
                      align="center"
                      label="描述">
              </el-table-column>
              <el-table-column
                      prop="status"
                      align="center"
                      label="当前状态">
                  <template slot-scope="scope">
                      <el-tag type="success" v-if="scope.row.status=="1"">启用</el-tag>
                      <el-tag type="danger" v-else>禁用</el-tag>
                  </template>
              </el-table-column>

              <el-table-column align="center" label="操作">
                  <template slot-scope="scope">
                      <el-button type="primary" @click="selectBrandById(scope.row.id)">修改</el-button>
                      <el-button type="danger" @click="deleteBrandById(scope.row.id)">删除</el-button>
                  </template>
              </el-table-column>

          </el-table>
      </template>

      <!--分页工具条-->
      <el-pagination
              @size-change="handleSizeChange"
              @current-change="handleCurrentChange"
              :current-page="currentPage"
              :page-sizes="[5, 10, 15, 20]"
              :page-size="pageSize"
              layout="total, sizes, prev, pager, next, jumper"
              :total="totalCount">
      </el-pagination>
        </div>

      <script src="js/vue.js"></script>

      <script src="./js/axios-0.18.0.js"></script>

      <script src="element-ui/lib/index.js"></script>

      <link rel="stylesheet" href="element-ui/lib/theme-chalk/index.css">

      <script>
      new Vue({
          el: "#app",
          created() {
              this.selectAll();
          },
          data() {
              return {
                  // 当前页码
                  currentPage: 1,
                  // 总数据数
                  totalCount: 0,
                  // 每一页的数据数量
                  pageSize: 5,

                  // 搜索框

                  // 添加数据对话框是否展示的标记
                  dialogVisibleAdd: false,
                  // 修改数据对话框是否展示的标记
                  dialogVisibleUpdate: false,

                  // 品牌模型数据
                  brand: {
                      status: "",
                      brandName: "",
                      companyName: "",
                      id:"",
                      ordered:"",
                      description:""
                  },
                  // 复选框选中数据集合
                  multipleSelection: [],
                  // 表格数据
                  tableData: [],
                  // 页码数
              }
          },
          methods: {
              tableRowClassName({row, rowIndex}) {
                  if (rowIndex === 1) {
                      return "warning-row";
                  } else if (rowIndex === 3) {
                      return "success-row";
                  }
                  return "";
              },
              // 复选框选中后执行的方法
              handleSelectionChange(val) {
                  this.multipleSelection = val;
                  console.log(this.multipleSelection)
              },
              // 查询方法
              onSubmit() {
                  // console.log("当前页码:" + this.currentPage)
                  // console.log("每页数量:" + this.pageSize)
                  // console.log("搜索部分信息:")
                  // console.log(this.brand)
                  this.selectAll();
              },
              selectAll() {
                  axios.post("brand/selectBrandByCondition?currentPage=" + this.currentPage + "&pageSize=" + this.pageSize,
                      this.brand
                  ).then( response => {
                      // window.alert("正在请求数据");
                      console.log(response.data);
                      this.totalCount = response.data.totalCount;
                      this.tableData = response.data.list;
                  });
              },

              // 添加数据
              addBrand(){
                  console.log(this.brand);
                  axios.post("brand/add", this.brand).then(response => {
                      if (response.data == "ok") {
                          this.dialogVisible = false;
                          window.location.href = "brand.html";
                      } else {
                          window.alert("添加失败!");
                      }
                  })
              },

              // 删除数据
              deleteBrandById(id){
                  // 发送ajax请求
                  axios.get("brand/delete?id=" + id).then( response => {
                      if (response.data == "ok") {
                          // 删除成功,跳转回brand.html
                          window.location.href = "brand.html";
                      } else {
                          window.alert("删除失败");
                      }
                  });
              },

              //修改数据
              // 点击修改按钮后,为了增强用户体验,添加一个数据回显功能
              selectBrandById(id){
                  this.dialogVisibleUpdate = true
                  // 发送ajax请求
                  axios.get("brand/selectBrandById?id=" + id).then(response => {
                   // 接收后端返回的json数据
                   this.brand = response.data;
                   // el-switch开关的默认值必须类型也要匹配~
                   this.brand.status = this.brand.status.toString();
                   console.log(this.brand);
                  });
              },
              // 执行修改语句
              update(){
                  // 发送ajax请求
                  axios.post("brand/update", this.brand).then(response => {
                     if (response.data == "ok") {
                         // 跳转到brand.html页面
                         window.location.href = "brand.html";
                     }else {
                         window.alert("修改失败!")
                     }
                  });
              },

              // 批量删除数据
              deleteBatch() {
                  this.$confirm("确定要删除吗?","提示", {
                      confirmButtonText: "确定",
                      cancelButtonText: "取消",
                      type: "warning"
                  }).then( () => {
                      // 点击确定按钮后要执行的操作
                      // this.$message({
                      //     message: "删除成功!",
                      //     type: "success"
                      // });
                      let ids = [];
                      for (let i = 0; i < this.multipleSelection.length; i++) {
                          // ids[i] = this.multipleSelection[i].id;
                          ids.push(this.multipleSelection[i].id);
                      }
                      console.log(ids);
                      axios.post("brand/deleteByIds", ids).then( response => {
                          if (response.data == "ok") {
                              window.location.href = "brand.html";
                          } else {
                              this.$message({
                                  message: "删除失败!",
                                  type: "error"
                              });
                          }
                      });
                  });
              },

              //分页
              handleSizeChange(val) {
                  console.log(`每页 ${val} 条`);
                  this.pageSize = val;
                  this.selectAll();

              },
              handleCurrentChange(val) {
                  console.log(`当前页: ${val}`);
                  this.currentPage = val;
                  this.selectAll();
              },

          }
      })
          </script>
      </body>
      </html>

hmoban主题是根据ripro二开的主题,极致后台体验,无插件,集成会员系统
自学咖网 » 12-基于ElementUI&Servlet的CRUD综合案例
