一.简介
GPUImage 共 125 个滤镜, 分为四类
1、Color adjustments : 31 filters , 颜色处理相关
2、Image processing : 40 filters , 图像处理相关.
3、Blending modes : 29 filters , 混合模式相关.
4、Visual effects : 25 filters , 视觉效果相关.
GPUImageToonFilter 属于 GPUImage 图像处理相关，用来图像卡通效果（黑色粗线描边），shader 源码如下：
******************************************************************************************/
//@Author:猿说编程
//@Blog(个人博客地址): www.codersrc.com
//@File:IOS – OpenGL ES 卡通效果（黑色粗线描边） GPUImageToonFilter
//@Time:2022/05/14 10:30
//@Motto:不积跬步无以至千里，不积小流无以成江海，程序人生的精彩需要坚持不懈地积累！
/******************************************************************************************/
#if TARGET_IPHONE_SIMULATOR || TARGET_OS_IPHONE
NSString *const kGPUImageToonFragmentShaderString = SHADER_STRING
(
precision highp float;
varying vec2 textureCoordinate;
varying vec2 leftTextureCoordinate;
varying vec2 rightTextureCoordinate;
varying vec2 topTextureCoordinate;
varying vec2 topLeftTextureCoordinate;
varying vec2 topRightTextureCoordinate;
varying vec2 bottomTextureCoordinate;
varying vec2 bottomLeftTextureCoordinate;
varying vec2 bottomRightTextureCoordinate;
uniform sampler2D inputImageTexture;
uniform highp float intensity;
uniform highp float threshold;
uniform highp float quantizationLevels;
const highp vec3 W = vec3(0.2125, 0.7154, 0.0721);
void main()
{
vec4 textureColor = texture2D(inputImageTexture, textureCoordinate);
float bottomLeftIntensity = texture2D(inputImageTexture, bottomLeftTextureCoordinate).r;
float topRightIntensity = texture2D(inputImageTexture, topRightTextureCoordinate).r;
float topLeftIntensity = texture2D(inputImageTexture, topLeftTextureCoordinate).r;
float bottomRightIntensity = texture2D(inputImageTexture, bottomRightTextureCoordinate).r;
float leftIntensity = texture2D(inputImageTexture, leftTextureCoordinate).r;
float rightIntensity = texture2D(inputImageTexture, rightTextureCoordinate).r;
float bottomIntensity = texture2D(inputImageTexture, bottomTextureCoordinate).r;
float topIntensity = texture2D(inputImageTexture, topTextureCoordinate).r;
float h = -topLeftIntensity - 2.0 * topIntensity - topRightIntensity + bottomLeftIntensity + 2.0 * bottomIntensity + bottomRightIntensity;
float v = -bottomLeftIntensity - 2.0 * leftIntensity - topLeftIntensity + bottomRightIntensity + 2.0 * rightIntensity + topRightIntensity;
float mag = length(vec2(h, v));
vec3 posterizedImageColor = floor((textureColor.rgb * quantizationLevels) + 0.5) / quantizationLevels;
float thresholdTest = 1.0 - step(threshold, mag);
gl_FragColor = vec4(posterizedImageColor * thresholdTest, textureColor.a);
}
);
#else
NSString *const kGPUImageToonFragmentShaderString = SHADER_STRING
(
varying vec2 textureCoordinate;
varying vec2 leftTextureCoordinate;
varying vec2 rightTextureCoordinate;
varying vec2 topTextureCoordinate;
varying vec2 topLeftTextureCoordinate;
varying vec2 topRightTextureCoordinate;
varying vec2 bottomTextureCoordinate;
varying vec2 bottomLeftTextureCoordinate;
varying vec2 bottomRightTextureCoordinate;
uniform sampler2D inputImageTexture;
uniform float intensity;
uniform float threshold;
uniform float quantizationLevels;
const vec3 W = vec3(0.2125, 0.7154, 0.0721);
void main()
{
vec4 textureColor = texture2D(inputImageTexture, textureCoordinate);
float bottomLeftIntensity = texture2D(inputImageTexture, bottomLeftTextureCoordinate).r;
float topRightIntensity = texture2D(inputImageTexture, topRightTextureCoordinate).r;
float topLeftIntensity = texture2D(inputImageTexture, topLeftTextureCoordinate).r;
float bottomRightIntensity = texture2D(inputImageTexture, bottomRightTextureCoordinate).r;
float leftIntensity = texture2D(inputImageTexture, leftTextureCoordinate).r;
float rightIntensity = texture2D(inputImageTexture, rightTextureCoordinate).r;
float bottomIntensity = texture2D(inputImageTexture, bottomTextureCoordinate).r;
float topIntensity = texture2D(inputImageTexture, topTextureCoordinate).r;
float h = -topLeftIntensity - 2.0 * topIntensity - topRightIntensity + bottomLeftIntensity + 2.0 * bottomIntensity + bottomRightIntensity;
float v = -bottomLeftIntensity - 2.0 * leftIntensity - topLeftIntensity + bottomRightIntensity + 2.0 * rightIntensity + topRightIntensity;
float mag = length(vec2(h, v));
vec3 posterizedImageColor = floor((textureColor.rgb * quantizationLevels) + 0.5) / quantizationLevels;
float thresholdTest = 1.0 - step(threshold, mag);
gl_FragColor = vec4(posterizedImageColor * thresholdTest, textureColor.a);
}
);
#endif
二.效果演示
使用 GPUImageToonFilter 用来图像卡通效果（黑色粗线描边）****，原图：

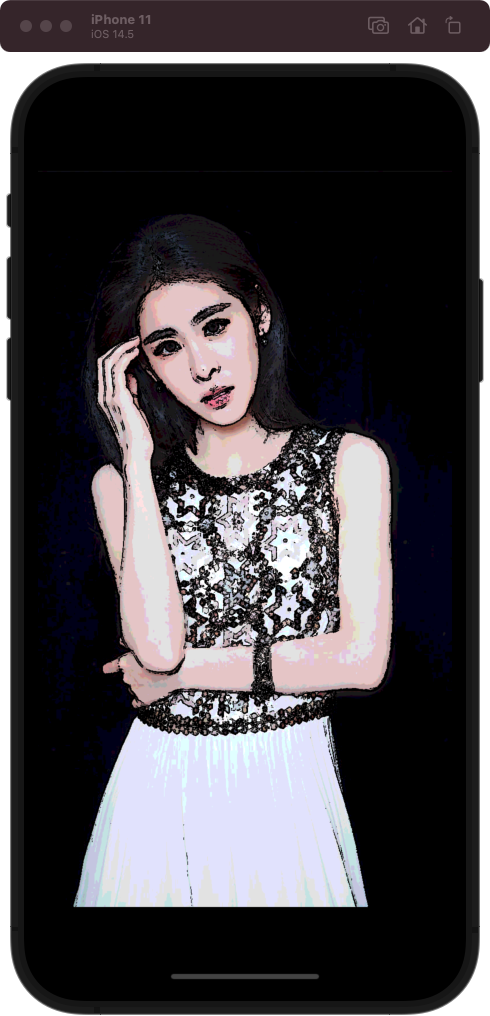

**GPUImageToonFilter** 用来图像卡通效果（黑色粗线描边）**，效果图：**
三.源码下载
OpenGL ES Demo 下载地址 : IOS – OpenGL ES 设置图像卡通效果（黑色粗线描边） GPUImageToonFilter
